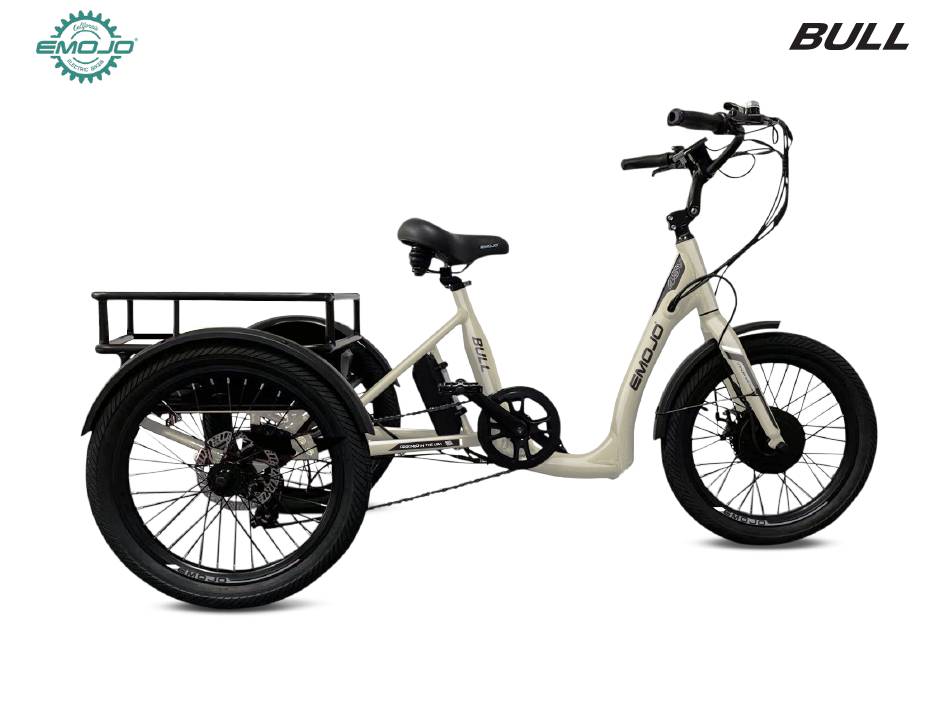

- Page 1 Assembly guide...
- Page 2 Your trike comes packed into 2 separate boxes: Box 1: Main frame and front wheel Box 2: Rear basket, rear frame section, rear wheel, fenders, seat and accessories...
- Page 3 Identify the hardware Rear fenders Chain breaker Front fender Cable zip ties Front fender hardware Pedals Headlamp Socket head bolts, Tail light pressure washers and safety nuts for rear fenders Socket head bolts, pressure washers Chain and safety nuts for the rear basket...
- Page 4 STEP 1: Assemble the stem and handlebar. B-Insert the stem into C-Align the D-Secure the the tube. stem/handlebar handlebar Use the spacer ring tightening the (arrow) to increase a straight top screw with the handlebar height, position and an allen wrench A-Remove the for lower handlebar tighten...
- Page 5 STEP 2: Connect the front and rear frame sections Use the 6 socket head bolts and safety nuts to connect both sections but do not tighten yet, you will need to adjust the chain before fully tightening Connect the front and rear sections...
- Page 6 STEP 3: Install the front wheel 1-Remove the shipping axle 2-Make sure to have the spacer from the front washers (a) on both sides fork and dispose it. between the fork...
- Page 7 STEP 3: Install the front wheel 4-Connect the 3-Insert the front tire into motor cable on the fork, the disc needs to the right side of the slide into the brake fork. caliper.
- Page 8 STEP 4: Install the chain 2-Start loading one end of the chain from top to bottom around the first small sprocket (blue arrow)… then around the second small sprocket (green arrow) and finally onto the third small 1-Pull down the sprocket (red arrow)...
- Page 9 STEP 4: Install the chain 3-Keep reeling out the chain towards the 4-Make sure the chain also front. The chain should now be routed wraps around around all the gears. the main sprocket. Continues on the next page….
- Page 10 STEP 4: Install the chain 4-Using a wrench # 17, tighten the 6 bolts that connect the front and rear frame sections. 3-Link the chain together, insert the pin lock and secure using the chain breaker (included)
- Page 11 STEP 5: Shifter cable 1-Follow the route for 2-Insert the bare metal wire 3-The wire will come to a the shifter cable into the guide on stop once the to connect it to the the shifter rubber jacket hits the derailleur.
- Page 12 STEP 6: Brakes 1-Fix the calipers to 2-Adjust the alignment, use the top the frame. screws on both ends of the caliper to Use the black socket adjust, make sure the wheel spins head bolts, freely 2 bolts per side. without rubbing the disc or rubbing the caliper.
- Page 13 STEP 7: Front fender and headlight Attach the bracket to the front fender 1-Install together the front fender 2-Secure both with 3-Plug the end of the and headlamp onto the front fork the socket headlight cable to the hole long head bolt other end from the trike.
- Page 14 STEP 8: Rear fenders and basket** It is highly recommended to attach the rear fenders to the rear basket before fixing the basket to the frame. 2-Fix the rear fender brackets to the rear basket The rear basket does NOT include the wooden Continues on the next bottom, it can be purchased separately page….
- Page 15 STEP 8: Rear fenders and basket 2-Secure from 1-Fix the rear basket underneath with with fenders to the the safety nuts frame using the long bolts with washers The rear basket does NOT include the wooden bottom, it can be purchased separately...
- Page 16 STEP 9: Rear tail light 1-Attach the tail light the rear 2-Connect the trail light cable end of the trike to the trike The rear basket does NOT include the wooden bottom, it can be purchased separately...
-
Page 17: Step 10: Battery Installation
STEP 10: Battery installation 3-Connect the plugs of 1-Slide the battery into its rail 2-Push the battery all the battery under the the way in until it clicks rails to the main harness basket into position The rear basket does NOT include the wooden bottom, it can be purchased separately... - Page 18 STEP 11: Lights ON/OFF To turn your headlight on: 1-Turn on your electric system by pressing and holding the M button for 3 seconds 2-Press and hold the arrow Up button until the light comes on, you will see the light icon on the screen 3-To turn off the light press and hold the Up button again.
- Page 19 STEP 12: Pedals From the accessory box, identify the left and right pedals. Fix the pedals to the crank, the left pedal is tightened counter clockwise, the right pedal clockwise. Hand-tighten the pedals first, then use a wrench.
- Page 20 Questions or comments? Send us an email at: support@emojobike.com...
