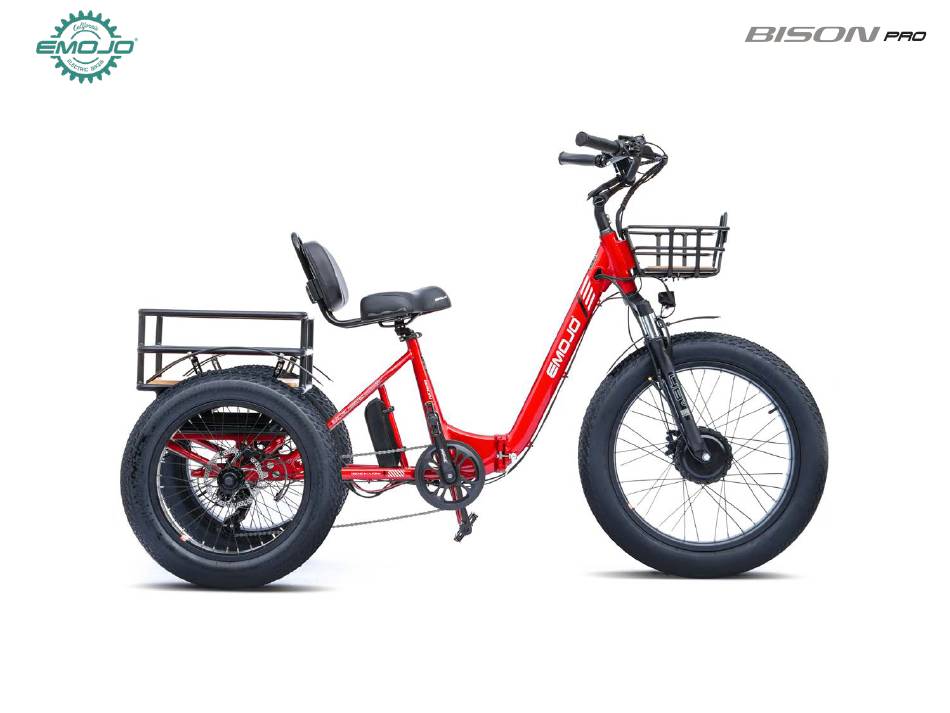

- Page 1 Assembly guide...
- Page 2 Your trike comes packed into 3 separate boxes: Box 3 : Front wheel Box 1: Seat, battery, and front frame section and rear basket Box 2: Rear frame section with wheels, front basket, fenders, charger and accessory box (pedals and headlight inside)
- Page 3 Identify the hardware Rear fenders Socket head bolts, pressure washers and safety nuts to connect front and rear frame sections Tail light Pedals Front fender Headlamp Socket head bolts, Bolts for the front basket x 4 pressure washers and safety nuts for the Black socket head fear fenders bolts for the front basket...
- Page 4 STEP 1: Assemble the stem and handlebar. B-Insert the stem into the tube. C-Align the stem/handlebar in Use the spacer ring (arrow) to a straight position increase the handlebar height, for lower handlebar position you can A-Remove the protective cap remove the spacer ring.
- Page 5 STEP 3: Assemble the stem and handlebar. D-Secure the handlebar tightening the E-Tighten the bottom clamp F-Adjust the angle of the handlebar with top screw with an allen wrench socket head screws with an allen the horizontal screw, once you reached the wrench desired angle close the latch.
- Page 6 STEP 4: Connect the front and rear frame sections Use the 6 socket head bolts and safety nuts to connect both sections but do not tighten yet, you will need to adjust the chain before fully tightening Connect the front and rear sections...
- Page 7 STEP 5: Install the front wheel 1-Remove the shipping axle from the front 2-Make sure to have the spacer washers (a) fork and dispose it. and safety washers (b) on both sides between the fork (a) (b)
- Page 8 STEP 5: Install the front wheel 4-Connect the motor cable on 3-Insert the front tire into the fork, the the right side of the fork. disc needs to slide into the brake caliper.
- Page 9 STEP 6: Install the chain 2-Start loading one end of the chain from top to bottom around the first small sprocket (blue arrow)… then around the second small sprocket (green arrow) and finally onto the third small sprocket (red arrow)... 1-Pull down the derailleur Continues on the next page….
- Page 10 STEP 6: Install the chain 4-Make sure the chain also wraps around the main sprocket. 3-Keep reeling out the chain towards the front. The chain should now be routed around all the gears. Continues on the next page….
- Page 11 STEP 6: Install the chain 4-Using a wrench # 17, tighten the 6 bolts that connect the front and rear frame sections. 3-Link the chain together, insert the pin lock and secure using the chainbreaker (included)
- Page 12 STEP 7: Shifter cable Follow the route for the shifter cable 1-Insert the bare metal wire into the guide on 2-The wire will come to a stop once the to connect it to the derailleur. the shifter rubber jacket hits the guide, tighten the security nut with a #9 wrench.
- Page 13 STEP 8: Brakes 1-Fix the calipers to the frame. 2-Adjust the alignment, use the top screws on both ends Use the black sockethead bolts, of the caliper to adjust, make sure the wheel spins freely 2 bolts per side. without rubbing the disc rubbing the caliper.
- Page 14 STEP 9: Front fender and headlight Attach the bracket to the front fender 1-Install together the front fender and headlamp onto the front fork hole 2-Secure both with the socket long head bolt...
- Page 15 STEP 10: Rear fenders and basket It is highly recommended to a2ach the rear fenders to the rear basket before fixing the basket to the frame. 1-Fix the rear fender brackets to the 2-Adjust the angle of the brackets 3- Attach the rear fenders to the brackets rear basket with the short bolts Continues on the next page….
- Page 16 STEP 10: Rear fenders and basket Fix the rear basket with Secure from underneath with fenders to the frame using the safety nuts the long bolts with washers...
- Page 17 STEP 11: Rear tail light Attach the tail light the rear end of the trike Connect the trail light cable to the trike...
- Page 18 STEP 12: Battery installation Slide the batteries into their rails under the basket Push the batteries all the way in Connect the plugs of the battery until they click into position rails to the main harness...
- Page 19 STEP 13: Headlight Tuck into the frame the excess cable Plug the end of the headlight cable to the other end from the trike. Continues on the next page….
- Page 20 STEP 13: Headlight To turn your headlight on: 1-Turn on your electric system by pressing and holding the M button for 3 seconds 2-Press and hold the arrow Up button until the light comes on, you will see the light icon on the screen 3-To turn off the light press and hold the Up button again.
- Page 21 STEP 14: Front basket Attach the front basket to the frame using 4 socket head bolts.
- Page 22 STEP 15: Pedals From the accessory box, identify the left and right pedals. Fix the pedals to the crank, the left pedal is tightened counter clockwise, the right pedal clockwise. Hand-tighten the pedals first, then use a wrench.
- Page 23 Questions or comments? Send us an email at: support@emojobike.com...
