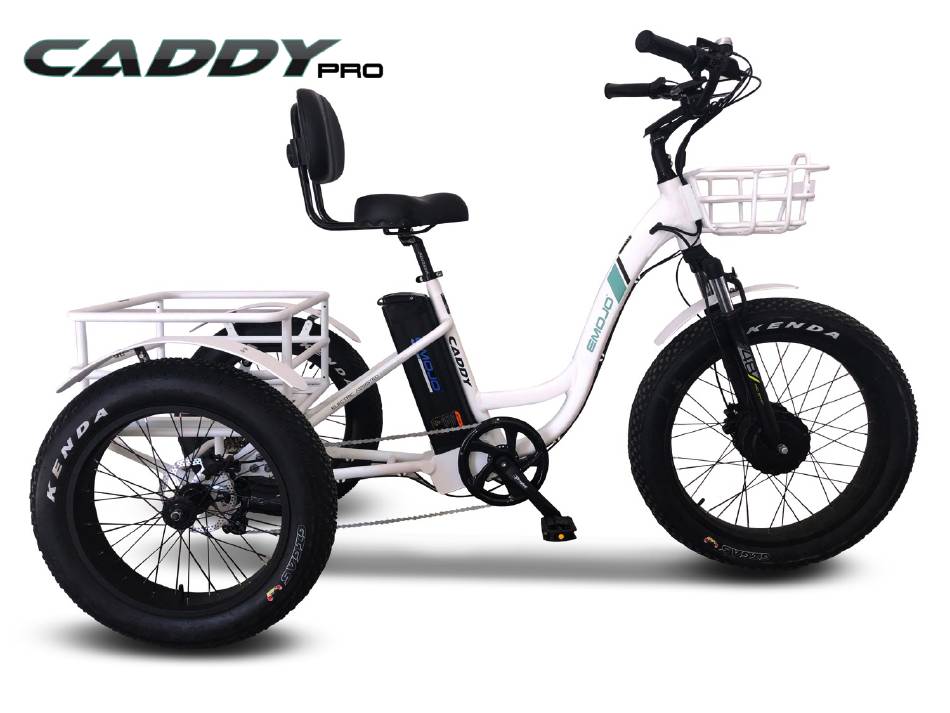

- Page 1 Assembly guide...
- Page 2 The Caddy Pro comes packed into 2 separate boxes: BOX 1: BOX 2: Seat, battery, front wheel and front frame section Rear frame section with wheels, front and rear baskets, fenders, charger and accessory box (pedals and headlight inside)
- Page 3 Identify the hardware Rear fender Pedals Headlamp Chain Brackets x 4 Front fender bracket x 1 Socket head bolts To attach the rear fenders To the basket (needs nuts) Socket head bolts to connect rear fender Socket head bolts brackets to the basket to fix the front (No need for nuts) Basket (no need...
- Page 4 STEP 1: Cut the zip ties holding the front wheel to the frame and separate the front wheel. STEP 2: Remove the protective plastic sleeve and cap from the frame so you can install the handlebar, this is protective shipping material only, you can discard it.
- Page 5 STEP 3: Assemble the stem and handlebar. C-Secure the handlebar tightening the A-Insert the stem into the tube. B-Align the stem/handlebar in top screw with an allen wrench Use the spacer ring (arrow) to a straight position increase the handlebar height, for lower handlebar position you can remove the spacer ring.
- Page 6 STEP 3: Assemble the stem and handlebar. F-Adjust the angle of the handlebar with D-Tighten the socket head screws the horizontal screw, once you reached the with an allen wrench desired angle close the latch.
- Page 7 STEP 4: Connect the front and rear frame sections Use the 6 socket head bolts and safety nuts to connect both sections but do not tighten yet, you will need to adjust the chain before fully tightening Connect front and rear section...
- Page 8 STEP 5: Install the front wheel 1-Remove the red plastic protector from the front brake 2-Make sure to have the spacer washers on both sides between the fork 3-Insert the front tire into the fork, the 4-Connect the motor cable on disc needs to slide into the brake caliper.
- Page 9 STEP 6: Install the chain 1-Tighten the bolt for the gears 2-Pulldown the derrailleur 3-Start loading one end of the chain from top to bottom around the first small sprocket (blue arrow)… then around the second small sprocket (green arrow) Continues on the next page….
- Page 10 STEP 6: Install the chain Chain in from this side: 1 sprocket Chain in from this side: 2 sprocket Chain out of 2 sprocket 4-Route the chain around 5-With one hand keep 6-The chain is now routed the 2 small sprocket gears pushing the derraileur thru the derrailleur, keep down, pull the end of the...
- Page 11 STEP 6: Install the chain 7-Keep reeling out the 8-The chain is now routed 9-Link the chain together chain around all gears with the link lock. Tighten the 6 bolts that connect the front and rear frame sections.
- Page 12 STEP 7: Install the rear brake 1-Remove the red protective tab from the rear brake. The left hand controls belong to the shorter cable, the right controls to the longer cable 2-Attach the rear brake to the frame, slide the disc into the brake. Rear brake already installed...
- Page 13 STEP 8: Attach rear shifter cable 2-The wire will come to a stop once the rubber jacket hits the guide 3-Pass the metal wire under the tab of the locking bolt 1-Insert the bare metal wire into the guide on the shifter Continues on the next page….
- Page 14 STEP 8: Attach rear shifter cable 4-Tigthen the locking nut to secure the cable into position 5-Put the wire endcap and clip it with pliers...
- Page 15 STEP 9: Rear fenders and basket It is highly recommended to a2ach the rear fenders to the rear basket before fixing the basket to the frame. 1-Fix the rear fender brackets to the rear basket 2- Attach the rear fenders to the brackets with the short bolts Continues on the next page….
- Page 16 STEP 9: Rear fenders and basket Fix the rear basket with fenders to the frame using the long bolts with washers Secure from underneath with the safety nuts...
- Page 17 STEP 10: Front fender and headlight Attach the bracket to the front fender 1-Install together the front fender and headlamp onto the front fork hole 2-Secure both with the socket head bolt...
- Page 18 STEP 11: Headlight To identify the positive wire, look for the wire marked with text on the rubber insulation Connect the wires to the headlamp: The positive wire plugs on the side marked with the + sign Continues on the next page….
- Page 19 STEP 11: Headlight To turn your headlight on: 1-Turn on your electric system by pressing and holding the M button for 3 seconds 2-Press and hold the arrow Up button until the light comes on, you will see the light icon on the screen 3-To turn off the light press and hold the Up button again.
- Page 20 STEP 12: Front basket Attach the front basket to the frame using 4 socket head bolts.
- Page 21 STEP 13: Pedals From the accessory box, identify the left and right pedals. Fix the pedals to the crank, the left pedal is tightened counter clockwise, the right pedal clockwise. Hand-tighten the pedals first, then use a wrench.
