- Page 1 OWNER’S MANUAL...
-
Page 2: Table Of Contents
CONTENTS Instructions Warnings Explanatory drawing of the overall bike configuration Schematic diagram of the electric bicycle Main technical parameters Throttle control and gears Operation stages P.A.S. Control 9-10 Charging your battery Battery mounting and removal Front wheel installation and seat adjustment Brakes Pedas and tire adjustment Chain... -
Page 3: Instructions
8. Warranty will be void if a non-approved battery charger or other non-original EMOJO spare parts are used. 9. Minors, pregnant women or anyone that does not have full dexterity of hands and legs should not use this product. -
Page 4: Warnings

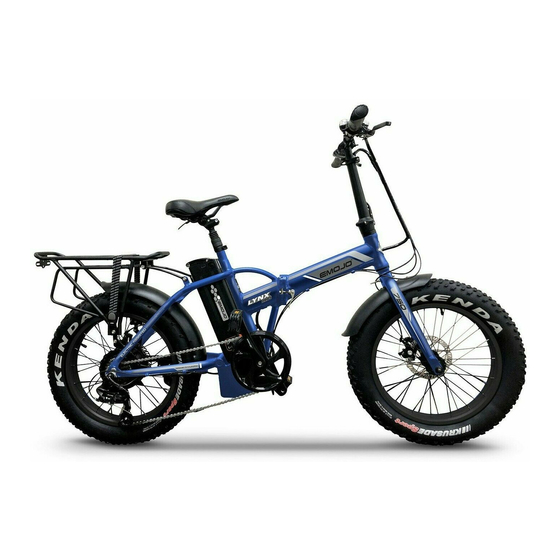

Warnings Please pay attention to the following items for your safety: Mak sure to check the set up and stability of the brakes, saddle, frame, Disassembling and refitting the bicycle may bring hidden safety hazards handlebar, wheels , etc. before riding to make sure all is in proper to your electric bike, therefore, causing risk. - Page 5 Overall Bike Layout Quick connectors Seat post Stem Rear disc brake Seat post quick Stem folding Rear rack release lever mechanism lock Battery Serial number Electric motor Pedals Controller Motor power Transmission chain Frame folding 7-gear cassette detachable Front disc brake mechanism lock connector Actual product may slightly differ from this picture...
- Page 6 Diagram of the Electric Bicycle:...
-
Page 7: Main Technical Parameters
Main Technical Parameters Item Index <55 Total Weight lbs. Load weight (including the Weight of Cyclist) lbs. Winter::::20 Summer::::25 Travel Mileage on a single Charge Miles w/pedal assist Power Consumption on a single Charge (kilowatt) Power Consumption per Kilometer <0.6 (kilowatt) Type <1.2... - Page 8 Gears This EMOJO electric bike is equipped with 7 mechanical gears. The first gear is for easier and uphill pedaling, the last gear is for maximum speed on leveled or downhills. Change gears only when pedaling. The rear wheel contains seven chain sprockets. When the chain is around the largest sprocket, you are in the 1st gear which is the "lowest"...
-
Page 9: Operation Stages
Correct Operation Stages ! Warning: "For your safety, please practice in a closed track the first time you ride the GigaByke" After mastering the controls of an electric bicycle, you may ride on regular roads and follow the traffic rules consciously. Do not let inexperienced people ride the electric bicycle, do not disassemble and refit the electric bicycle. -
Page 10: Control
Pedal Assist Mode Control Please read the following steps and images to help you understand how to read and operate all the functions. ◆ Display Interface After switching on the E-bike system, the display shows current speed and total distance except, battery indicator and assistance level ◆To change the indicated information, press the MODE button to show in turn as ◆Manual Clearance Function follows: Current Speed (Km/h) →... - Page 11 Pedal Assist Mode LCD Screen Display functions The LCD meter monitors pedal assist, speed, odometer, trip 1-Power On/Off distance, riding time, and battery energy level. To tum the meter on, make sure the battery is fully inserted into the bike and the on/ Press the M button to power on the display.
- Page 12 Error codes In the event of a system malfunction the screen will display an error code. You can troubleshoot the problem by identifying the code from the following chart. Error Code Definition Current Abnormality Throttle Abnormality Motor Abnormality Motor Hall Signal Abnormality Brake Abnormality LCD Communication Abnormality M Button...
- Page 13 Charging Methods and Steps 1. Always charge the battery fully for the first time. When the battery level is low plug it to charge it, use only the original charger provided with the battery. Slide open the protective hatch to access the charging port 2.
-
Page 14: Battery Mounting And Removal
Attention: I. Make sure the charger is the original charger. 2. All charging plugs must be inserted tightly. 3. The average charging time of the whole battery pack is 5 hours, please operate in strict accordance with above instructions and keep charger away Bottom socket from children. - Page 15 Front wheel installation Read the instructions carefully to identify and understand the components of the electric bicycle such as pedal, seat post etc. and the name of relevant spare parts. When specialized servicing of bike is required, please go to an authorized repair shop or store or another trusted bike professional.
- Page 16 Disc Brakes Figure 1 Your electric bike is equipped with disc brakes for maximum WARNING: reliability. Applying hand pressure to the brake levers will • Disc brake rotors become hot during use. Do not touch engage the brake pads against the brake rotor, creating friction or come in contact with the disc rotor shortly after use.
- Page 17 4. Pedal Installation and Adjustment: Take out pedals from the accessory box, install one of the pedals (pedals are marked with the letters "L" and "R" to indicate the side they belong to). When installing the pedals, insert the wrench stuck on the flat end of pedal axial head, and twist into the crank in clockwise direction. 5.
-
Page 18: Chain
7. Adjustment of Power Assisting Hall Sensor A: Turn the bike upside down, have it rest on the floor. I: The distance between the sensor and the disk shall be 3-5 millimeters Installing the sensor on the side of chain ring, when forwarding the chain ring, the power assistance is effective. - Page 19 Check the charger and power. Check whether the battery connection is in good condition and is stable. Check whether the charger plugs board fails. Check for any blown fuses Battery Not Charging in the battery case or any disconnected wiring. Note: if you experience problems contact your retailer, dealer or the manufacturer.
- Page 20 Power Shut Off Troubleshooting If your electric bicycle experiences a sudden power shut off while in use, this can be related to several reasons but the problem has an easy fix. PROBLEM DIAGNOSTIC The LCD starts to blink repeatedly followed by a power 1- Check the battery directly, press he power test button to check how much power is left.
- Page 21 4-5 hours if completely discharged. braking conditions so that it isn't working against the brakes. What are the running costs for an EMOJO electric bike? How far will the bike take me? A. You will have no worries about rising fuel prices at the pumps. All our electrically A.
- Page 22 At EMOJO we are commited to the consumers and the experience first, put a smile on the face of each of EMOJO rider and revive childhood memories when riding a bike meant freedom regardless of your age or gender, life doesn’t stop and neither should you, that’s why we say: “RIDE LIFE”...
