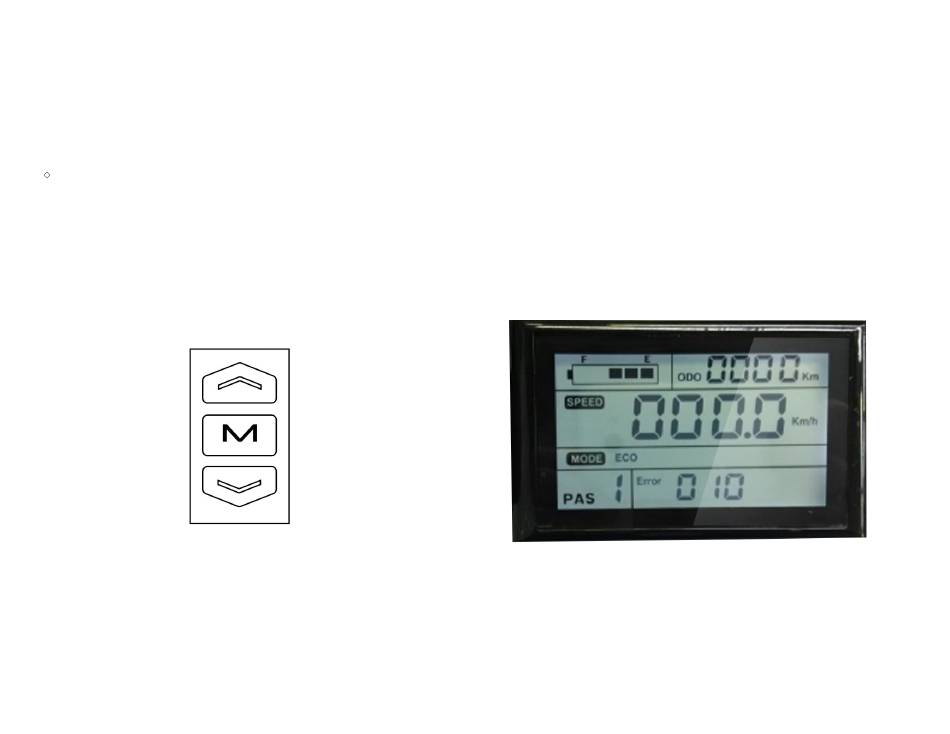

Pedal Assist Mode Control LCD
Please read the following steps and images to help you understand
how to read and operate all the functions.
◆Display Interface
After switching on the E-bike system, the display shows current speed and total
distance except, battery indicator and assistance level
◆To change the indicated information, press the MODE button to show in turn as
follows: Current Speed (Km/h) → Trip Distance (Km) Trip Time (Hour) → Max.
Speed (Km/h) → Avg. Speed (Km/h) → Motor-output (W) →Current Speed (Km/h).
◆Switching PAS Off: There is a preset setting which allows your bike to cruise at a
steady speed of 3.7 MPH (6Km/h), the letter "P" is shown at the screen. To engage this
cruise control feature press and hold the "-" button for a few seconds until the letter "P"
shows on the screen. To disengage this function press the brakes.
Press the power button (M button) on the LCD screen module
located near the left grip on the handlebars to tum it on.
You can adjust the pedal assist power level to have more power by
hitting the [ up] button (top button) and can move to a lower level
power by hitting the [down] button (bottom button).
When not riding your bike, you can tum off the meter by holding down
the power button (M button) for several seconds.
12
