LCD Control keys
There are several functions on the screen of your Caddy trike, all of the functions and settings are controlled by the 3 keys on
the left side handlebar module.

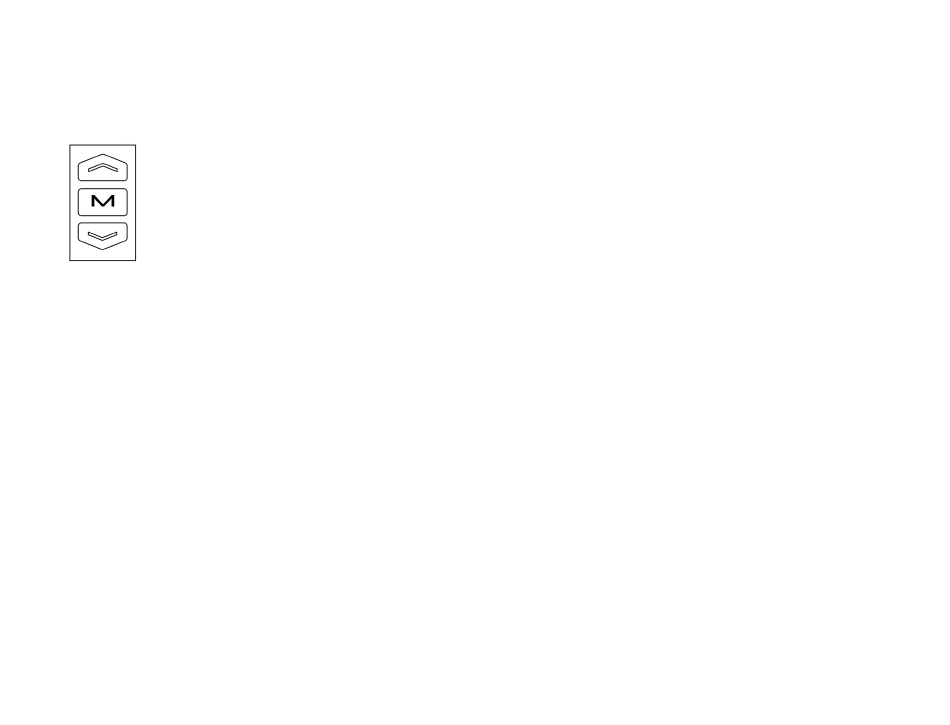

3-Key control module on the left side of the handlebar
The key operations consists of short press, long press or a combination of 2 keys:
1-
Short press UP/DOWN keys: Change PAS assist level during riding.
2-
Short press the M key to switch the information displayed on the multi-function display section
3-
Long press on a single key is used to toggle between mode/on/off status/Long press on combination of keys to set parameters.
4-
Long press M + UP arrow to switch speed display type (km/h MPH)
5-
Long pres arrow DOWN when the vehicle is fully stopped to Enable / Disable 6km/h cruise speed limiter
6-
Long press arrow DOWN when the vehicle is in motion to enter real time cruise control mode. Long press again to exit cruise control mode.
7-
Long press arrow UP to turn on/off the lights.
8-
Long press the button M on/off the LCD Panel.
9-
Short press M to switch from readings on the multifunction section
SETTING PARAMETERS
10- Long press arrows UP and DOWN simultaneously to enter the menu to customize some parameters such as:
Wheel Diameter (unit: inch); Magnet Steel Number; Back light Brightness; Low Voltage Threshold (refer to setting: P01-P14)
11- Short press the M button to navigate between the parameters, use the UP /DOWN arrows to enter the values, they will blink while editable,
once set, short press the M button to save. The values will be solid and no longer blink.
12- Short press the M button to move to the news customizable parameter
13-
Short press the UP and DOWN arrows to exit the custom parameter settings.
HEADLIGHT
10- To turn the headlight ON, first make sure to turn on your system by pressing and holding the M button for 3 seconds, once the system is on
press and hold the UP button until the light turns on, you will see the light icon on the screen appear.
To turn the headlight OFF, press and hold again the UP button.
9
