5.4 Edging Process

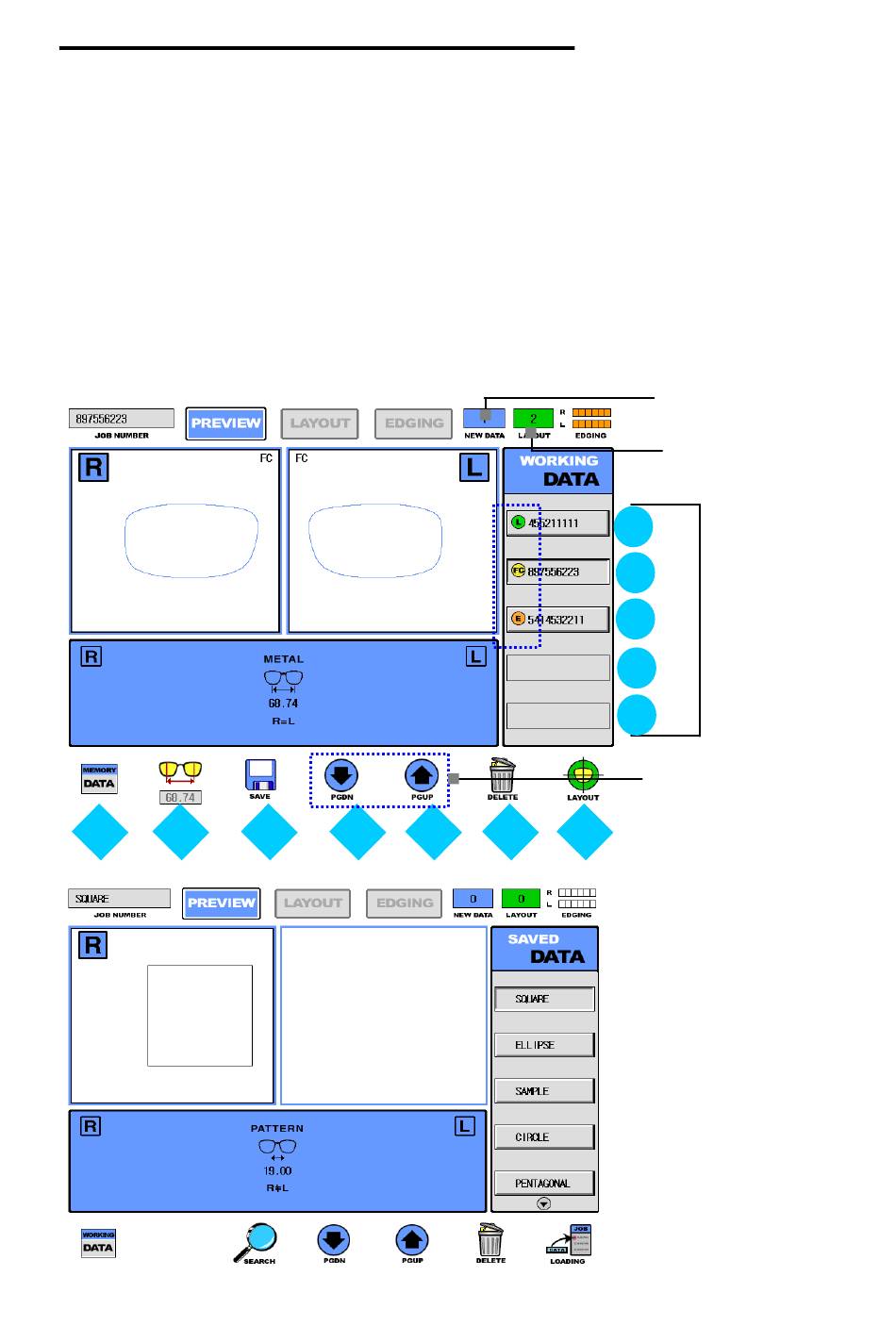

5.4.1 Preview MODE

There are two display in Preview mode. The first is the 'Working Data Display', the
second is the 'Saved Data Display'. 'Work Data Display' is the stage which prepares
to go into the subsequent job processes. Otherwise 'Saved Data Display' is the stage
just for which manages the data in the permanent memory. You can switch easily two
display modes by pressing the first button(F1).
F1 F2 F3 F4 F5
Excelon Operator's Manual
R1
R2
R3
R4
R5
F6 F7
Number of New Data
Number of Layout
Data Completed
Data
Selection Button
Page DOWN/UP
37
