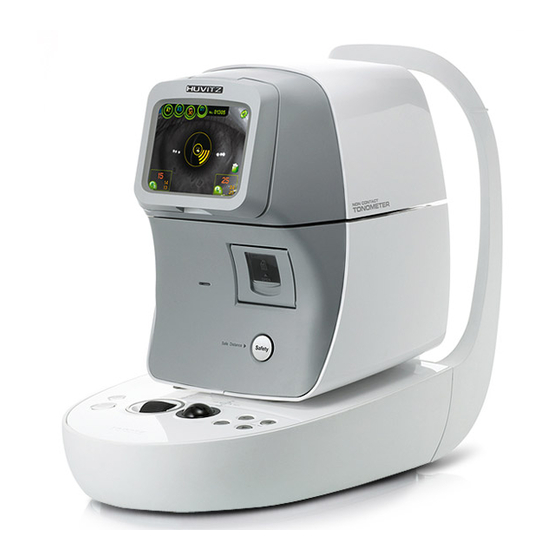

Huvitz HNT-7000 How To Set Up
How to setup the center and pd
Hide thumbs
Also See for HNT-7000:
- Service manual (64 pages) ,
- User manual (58 pages) ,
- Manual (17 pages)
Subscribe to Our Youtube Channel
Related Manuals for Huvitz HNT-7000
Summary of Contents for Huvitz HNT-7000

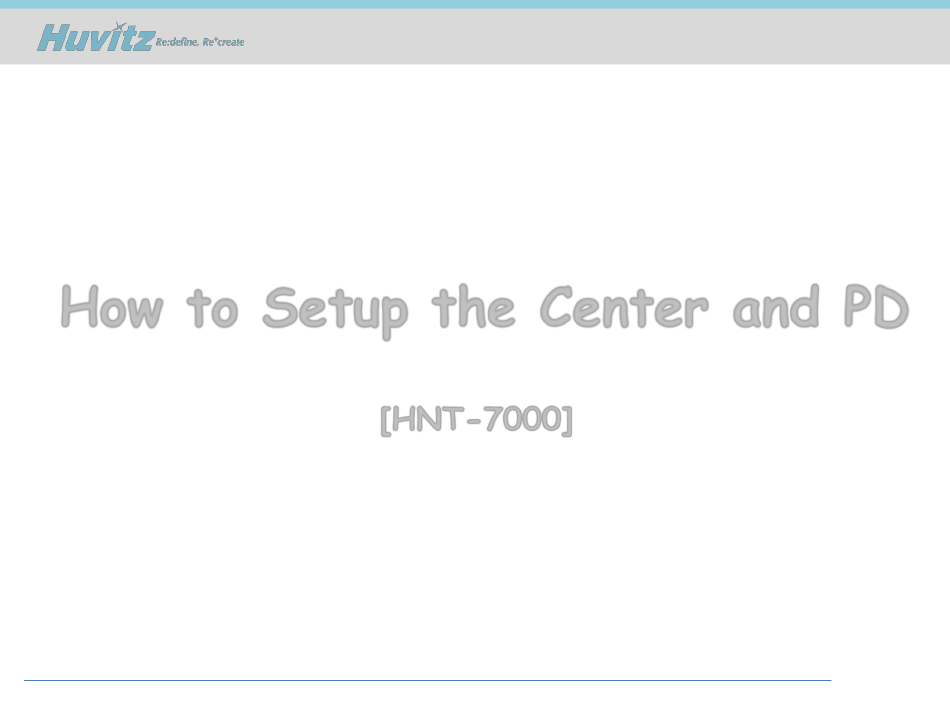

- Page 1 How to Setup the Center and PD [HNT-7000] HUVITZ Co.,Ltd Customer Service Department 2014. 03. 25...
- Page 2 [HNT-7000] How to Setup the Center and PD 1. Enter the Engineer Mode While holding down PRINT button, Press the DEMO button to enter the turn on the Power switch. ENGINEER SETUP MODE BEEP! TRACK BALL Enter “6 TRACK MOTOR TEST”...
- Page 3 [HNT-7000] How to Setup the Center and PD 2. Move the Head & Body Please move the head to the end of Left, Down and Front using the Track ball & Track wheel. Please click the ‘Align Center’. (Moving the X, Y, Z axis.) HUVITZ Co.,Ltd...
- Page 4 [HNT-7000] How to Setup the Center and PD 3. Check the side cover of head with body & Adjust About the side cover, please check If you want to move the top of head to left, these tow covers if it is in a line or not.
- Page 5 [HNT-7000] How to Setup the Center and PD 4. Check the back cover of head with body & Adjust If you want to move the top of head to Please check the back side of covers. backward, please give the (+) value of Z-Head.
- Page 6 [HNT-7000] How to Setup the Center and PD 5. Preparing the setup of PD Please put on the calibration JIG on Set the ‘FT’ and IOP 60. Chin-rest. HUVITZ Co.,Ltd Customer Service Department 2014. 03. 25...
- Page 7 [HNT-7000] How to Setup the Center and PD 6. Focus the Left model eye and measure the ‘FT’. Press ‘Start’ button with the 1 model eye. We will use the 1 and 3 model eye HUVITZ Co.,Ltd Customer Service Department...
- Page 8 [HNT-7000] How to Setup the Center and PD 7. Set the value of X-Base If the focus is passed the 3 model eye, please go on to the No.1. APP LED If the focus is not reached the 3 model eye, please go on to the No.2.
