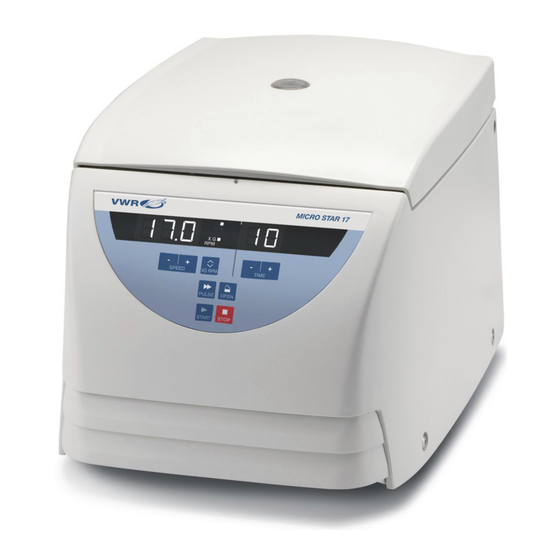

- Page 1 Instruction manual MICRO STAR 17 / 17R ® 50134113 EU Catalogue Numbers: VWR MICRO STAR 17: 521-1646 VWR MICRO STAR 17R: 521-1647 Version: Issued: 09.06.2020...
-
Page 2: Legal Address Of Manufacturer
Legal Address of Manufacturer Europe VWR International bv Researchpark Haasrode 2020 Geldenaaksebaan 464 B-3001 Leuven + 32 16 385011 www.vwr.com Country of origin Germany... - Page 3 Geldenaaksebaan 464, B-3001 Leuven, Belgium, www: be.vwr.com, email: vwr.be@vwr.com The undersigned states that this declaration is issued under the sole responsibility of the manufacturer, VWR International bv, and that the object(s) of the declaration described in Appendix 1 are in conformity with the relevant Union harmonization legislation.
- Page 4 DocuSign Envelope ID: 42388E43-532E-495D-B837-C843154ED7FB Appendix 1 Cat. No. Product 521-1646 VWR MicroStar 17 Microcentrifuge 521-1647 VWR MicroStar 17R Refrigerated Microcentrifuge M3-F46_V6EEE 2 of 2...
-
Page 5: Table Of Contents
Storage ..............................11 Intended use ........................ 11 Symbols and conventions ..................11 Product Specifications ....................12 Characteristics of the VWR MICRO STAR 17 / 17R ................12 Refrigerant ............................... 12 Mains supply............................12 Technical data ............................13 Functions and features ..........................14 Description of Buttons and Switches ................ - Page 6 Repair and maintenance ..................... 35 Maintenance and care ..........................35 User replaceable accessories and spare parts ............39 Rotor Accessories ........................... 39 Replacement parts ..........................39 Technical service ......................39 Compliance with local laws and regulations ............40 WEEE Conformity ......................41 APPENDIX ........................
-
Page 7: Warning
Before starting to use the centrifuge, read through this instruction manual carefully and follow the instructions. The information contained in this instruction manual is the property of VWR; it is forbidden to copy or pass on this information without explicit approval. - Page 8 Remaining risk: Improper use can cause damages, contamination and injuries with fatal consequences. • Highly corrosive substances which can cause material damage and impair the mechanical stability of the rotor, should only be centrifuged in corresponding protective tubes. VWR MICRO STAR 17 / 17R ver c, rel 09.06.2020...
-
Page 9: Package Contents
Before setting up 1. Check the centrifuge and the packaging for any shipping damage. Inform the shipping company and VWR immediately if any damage is discovered. 2. Remove the packaging. 3. Remove the rotor transport protection. The cardboard is supposed to prevent damage due to impact. -
Page 10: Location
Do not place anything under the centrifuge to level. Mains Connection MICRO STAR 17 Main power Mains plug MICRO STAR 17R Main power Mains plug Figure 2. Mains connection VWR MICRO STAR 17 / 17R ver c, rel 09.06.2020... -
Page 11: Storage
Observe the information contained in the instruction manual to keep yourself and your environment safe. This symbol refers to general hazards. CAUTION means that material damage could occur. WARNING means that injuries or material damage or contamination could occur. VWR MICRO STAR 17 / 17R ver c, rel 09.06.2020... -
Page 12: Product Specifications
1430 0.37 t Mains supply The following table contains an overview of the electrical connection data for the VWR MICRO STAR 17 / 17R. This data is to be taken into consideration when selecting the mains connection socket. Cat. Mains voltage... -
Page 13: Technical Data
Technical data The technical data of the VWR MICRO STAR 17 / 17R is listed in the following table. Feature MICRO STAR 17 MICRO STAR 17R Environmental conditions - Use in interior spaces. - Use in interior spaces. - Altitudes of up to 2,000 m - Altitudes of up to 2,000 m above above sea level. -
Page 14: Functions And Features
In the control panel you find the keys and displays of the centrifuge. All parameters can be selected and changed during operation. Figure 3. Control Panel of VWR MICRO STAR 17 / 17R VWR MICRO STAR 17 / 17R ver c, rel 09.06.2020... -
Page 15: Operational Keys
By pressing the key you toggle between the display for speed and RCF the display value. mode PreTemp By pressing the key you start the pretemp function of the centrifuge. VWR MICRO STAR 17 / 17R ver c, rel 09.06.2020... -
Page 16: Getting Started And Operation
Hold the rotor over the centrifuge spindle. The two bars in the labelling on the upper side of the rotor (a) must be above the retaining pin (b) of the centrifuge spindle. VWR MICRO STAR 17 / 17R ver c, rel 09.06.2020... - Page 17 CAUTION Check that the rotor is properly locked on the centrifuge spindle before each use by pulling it at its handle. Fasten the rotor if necessary. Be sure to check all seals before starting any aerosol-tight applications. See the information in the rotor instruction manual. VWR MICRO STAR 17 / 17R ver c, rel 09.06.2020...
-
Page 18: Entering Parameters
Note: The RCF value can be set to a minimum of 100 x g. The maximum speed depends on the centrifuge variant. The displayed RCF value is always corresponding to the maximum of centrifuge radius. VWR MICRO STAR 17 / 17R ver c, rel 09.06.2020... - Page 19 2. During continuous operation, the centrifuge will continue running until you stop it manually with key. CAUTION Please note that the lifetime of particularly plastic rotor tubes is limited. Continuous operation (extended use) may cause damage to them. VWR MICRO STAR 17 / 17R ver c, rel 09.06.2020...
- Page 20 The current value will switch into the preselecting value mode. 2. Enter the new value as described above. 3. Press the key. The value is taken over immediately. VWR MICRO STAR 17 / 17R ver c, rel 09.06.2020...
-
Page 21: Centrifugation
The centrifuge will be decelerated at the designated rate. 2. Press the key to open the centrifuge door and the remove the samples when the message END appears in the display. VWR MICRO STAR 17 / 17R ver c, rel 09.06.2020... -
Page 22: Short-Term Centrifugation
Short-term centrifugation For short-term centrifuging, the VWR MICRO STAR 17 / 17R has a PULSE- function. By holding down the key, spinning will start and continue until the key is let go. The centrifuge accelerates and brakes at maximum power. The pre-selected value is ignored. -
Page 23: Turning Off The Centrifuge
[°C] referred to ambient ≤0 temperature of 23 °C, running time 60 minutes Aerosol-tight yes* yes* Autoclavable 121 °C (20 Cycles) 121 °C (20 Cycles) Tested and approved by HPA, Porton-Down, UK VWR MICRO STAR 17 / 17R ver c, rel 09.06.2020... -
Page 24: Rotor Life-Time
2. Hold the rotor over the centrifuge spindle. The two bars in the labelling on the upper side of the rotor (a) must be above the retaining pin (b) of the centrifuge spindle. 3. Let the rotor slide slowly down the centrifuge spindle. VWR MICRO STAR 17 / 17R ver c, rel 09.06.2020... -
Page 25: Operating The Rotor Without Lid
If you plan to operate the rotor without the lid you must remove the seals. Seals CAUTION When operating the rotor without the lid the seals are not fixed in their position and can damage the centrifuge. VWR MICRO STAR 17 / 17R ver c, rel 09.06.2020... -
Page 26: Aerosol-Tight Applications
Follow the steps below: Lubricate all seals. Press the smaller V-seal into the groove of the rotor collar (a). Press the larger C-seal in the outer groove of the rotor body (b). VWR MICRO STAR 17 / 17R ver c, rel 09.06.2020... - Page 27 Leaks can be detected by escaping water or the sound of escaping gas. Replace the seals if you detect any leaks. Then repeat the test. 5. Dry the rotor, rotor lid and the cover seal. VWR MICRO STAR 17 / 17R ver c, rel 09.06.2020...
-
Page 28: Troubleshooting
5. Remove the wire from the hole and open the centrifuge door. 6. Now you can remove your samples. Emergency door release Figure 4. Emergency door release Reconnect the centrifuge once the power has been restored. Switch on the centrifuge. VWR MICRO STAR 17 / 17R ver c, rel 09.06.2020... -
Page 29: Troubleshooting By User
3. Check whether the rotor is properly loaded. Check whether a broken tube, damage to the rotor or motor is responsible for the run noise. If the running noise remains exceptionally, inform Customer Service. VWR MICRO STAR 17 / 17R ver c, rel 09.06.2020... - Page 30 Rotor stops with deceleration to Temperature measurement error standstill. The centrifuge cannot Switch the instrument off and on again. be operated. If an error message appears again, inform Customer Service. VWR MICRO STAR 17 / 17R ver c, rel 09.06.2020...
- Page 31 1. Switch the instrument off and on again using the mains switch. 2. Open the centrifuge door. 3. Check whether the rotor can turn freely. If an error message appears again, inform Customer Service. VWR MICRO STAR 17 / 17R ver c, rel 09.06.2020...
- Page 32 3. After approx. 30 minutes you can restart the instrument. Observe the maximum permissible environmental temperature. If an error message appears again, inform Customer Service. VWR MICRO STAR 17 / 17R ver c, rel 09.06.2020...
- Page 33 Rotor stops with deceleration to Temperature measurement error standstill. The centrifuge cannot Switch the instrument off and on again. be operated. If an error message appears again, inform Customer Service. VWR MICRO STAR 17 / 17R ver c, rel 09.06.2020...
- Page 34 Cycle counter CYCLE • The values shown above are just examples. Software 0583 Version 01 NV-RAM 4521 Version 01 cycles completed 2. Communicate the software version to the service technician. VWR MICRO STAR 17 / 17R ver c, rel 09.06.2020...
-
Page 35: Repair And Maintenance
• CAUTION Before using any cleaning or decontamination methods except those recommended by the manufacturer, users should check with the manufacturer that the proposed method will not damage the equipment. VWR MICRO STAR 17 / 17R ver c, rel 09.06.2020... - Page 36 Cleaning filter unit 1. The VWR MICRO STAR 17R have a filter unit to protect the cooling device. Pull the centrifuge to the edge of the table. 2. Pull the clip below the sucking grid and remove the filter unit completely by pulling it down.
- Page 37 Observe the safety precautions and handling instructions for the cleaning agents used. Contact the Service Department of VWR for questions regarding the use of other disinfectants. Disinfect the rotor and accessories as follows: 1. Open the centrifuge.
- Page 38 Note: No chemical additives are permitted in the steam. CAUTION Never exceed the permitted temperature and duration when autoclaving. If the rotor shows signs of corrosion or wear, it must be replaced. VWR MICRO STAR 17 / 17R ver c, rel 09.06.2020...
-
Page 39: User Replaceable Accessories And Spare Parts
• the rotor; • the fixation of the rotor and the drive shaft. VWR offers a warranty period of two (2) years for the MICRO STAR 17 / 17R. Web Resources Visit the VWR website at www.vwr.com for: •... -
Page 40: Compliance With Local Laws And Regulations
(2) years from date of delivery. If a defect is present, VWR will, at its option and cost, repair, replace, or refund the purchase price of this product to the customer, provided it is returned during the warranty period. -
Page 41: Weee Conformity
By doing so, you will help to conserve natural and environmental resources and you will ensure that your equipment is recycled in a manner that protects human health. Thank you VWR MICRO STAR 17 / 17R ver c, rel 09.06.2020... -
Page 42: Appendix
(10 %) Barium Salts Benzene Benzyl Alcohol Boric Acid Cesium Acetate Cesium Bromide Cesium Chloride Cesium Formate Cesium Iodide Cesium Sulfate Chloroform Chromic Acid (10 %) Chromic Acid (50 %) VWR MICRO STAR 17 / 17R ver c, rel 09.06.2020... - Page 43 Hydrofluoric Acid (10 %) Hydrofluoric Acid (50 %) Hydrochloric Acid (conc.) Formaldehyde (40 %) Glutaraldehyde Glycerol Guanidine Hydrochloride Haemo-Sol™ Hexane Isobutyl Alcohol Isopropyl Alcohol Iodoacetic Acid Potassium Bromide Potassium Carbonate VWR MICRO STAR 17 / 17R ver c, rel 09.06.2020...
- Page 44 Lactic Acid (20 %) N/Butyl Alcohol N/Butyl Phthalate N, N-Dimethyl- formamide Sodium Borate Sodium Bromide Sodium Carbonate (2 %) Sodium Dodecyl Sulfate Sodium Hypochlorite (5 %) Sodium Iodide Sodium Nitrate VWR MICRO STAR 17 / 17R ver c, rel 09.06.2020...
- Page 45 Nitric Acid (95 %) Hydrochloric Acid (10 %) Hydrochloric Acid (50 %) Sulfuric Acid (10 %) Sulfuric Acid (50 %) Sulfuric Acid (conc.) Stearic Acid Tetrahydrofuran Toluene Trichloroacetic Acid Trichloroethane Trichloroethylene VWR MICRO STAR 17 / 17R ver c, rel 09.06.2020...
- Page 46 Chemical resistance data is included only as a guide to product use. Because no organized chemical compatibility data exists for materials under the stress of centrifugation, when in doubt we recommend pretesting sample lots. VWR MICRO STAR 17 / 17R ver c, rel 09.06.2020...
-
Page 47: Autoclaving Protocol
Autoclaving Protocol Date Comment Operator Signature VWR MICRO STAR 17 / 17R ver c, rel 09.06.2020... - Page 48 Local VWR offices in Europe and Asia Pacific Austria Hungary Poland VWR International GmbH VWR International Kft. VWR International Sp. z o.o. Graumanngasse 7 Simon László u. 4. Limbowa 5 1150 Vienna 4034 Debrecen 80-175 Gdansk Tel.: +43 1 97 002 0 Tel.: +36 (52) 521-130...
