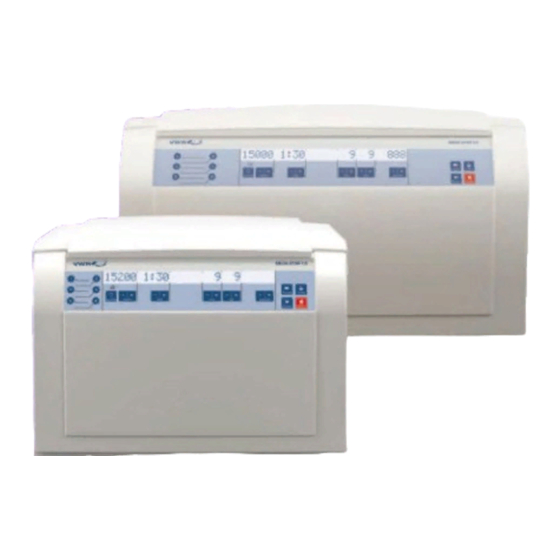

VWR Mega Star 600 Instruction Manual
Hide thumbs Also See for Mega Star 600:

Advertisement

Instruction manual
VWR
Mega Star 600 / 600R
®
EU Catalogue Numbers:
VWR Mega Star 600:
VWR Mega Star 600R:
VWR Mega Star 600R Micro: 521-1895
Version:
b
Issued:
17.07.2020
50146806
521-1893
521-1894

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Mega Star 600 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for VWR Mega Star 600

  • Page 1 Instruction manual Mega Star 600 / 600R ® 50146806 EU Catalogue Numbers: VWR Mega Star 600: 521-1893 VWR Mega Star 600R: 521-1894 VWR Mega Star 600R Micro: 521-1895 Version: Issued: 17.07.2020...
  • Page 2: Legal Address Of Manufacturer

    Legal Address of Manufacturer Europe VWR International bv Researchpark Haasrode 2020 Geldenaaksebaan 464 B-3001 Leuven + 32 16 385011 www.vwr.com Country of origin VWR Mega Star 600R: Germany VWR Mega Star 600: China VWR Mega Star 600 / 600R ver b, rel 17.07.2020...
  • Page 3 Geldenaaksebaan 464, B-3001 Leuven, Belgium, www: be.vwr.com, email: vwr.be@vwr.com The undersigned states that this declaration is issued under the sole responsibility of the manufacturer, VWR International bv, and that the object(s) of the declaration described in Appendix 1 are in conformity with the relevant Union harmonization legislation.
  • Page 4 DocuSign Envelope ID: 42388E43-532E-495D-B837-C843154ED7FB Appendix 1 Cat. No. Product 521-1893 VWR Mega Star 600 benchtop ambient centrifuge package 521-1894 VWR Mega Star 600R micro benchtop refrigerated centrifuge package 521-1895 VWR Mega Star 600R benchtop refrigerated centrifuge micro package M3-F46_V6EEE 2 of 2...
  • Page 5: Table Of Contents

    Acceleration / Deceleration Rates ......................21 Programs ..............................24 Centrifugation ............................24 Short-term centrifugation ......................... 26 Removing the Rotor ..........................26 Aerosol-tight rotors ..........................27 Switch off Centrifuge ..........................27 VWR Mega Star 600 / 600R ver b, rel 17.07.2020...
  • Page 6 User replaceable accessories and spare parts ............37 Technical service ......................37 Warranty ........................38 Compliance with local laws and regulations ............38 WEEE Conformity ......................39 APPENDIX ........................40 VWR Mega Star 600 / 600R ver b, rel 17.07.2020...
  • Page 7: Warning

    The centrifuge should be operated by trained specialists only. In order to ensure safe operation of the VWR Mega Star 600 / 600R Centrifuge, general safety regulations must be followed. Mind the regulations in your country.
  • Page 8: Preparation

    The centrifuge is neither inert nor protected against explosion. Never use the centrifuge in an explosion-prone environment. • Do not centrifuge toxic or radioactive materials or any pathogenic micro-organisms without suitable safety precautions. VWR Mega Star 600 / 600R ver b, rel 17.07.2020...
  • Page 9: Operating

    In any case of severe mechanical failure, such as rotor or bucket crash, the centrifuge is not aerosol-tight. In case of rotor failure, the centrifuge can be damaged. Leave the room. Inform customer service. Maintenance WARNING The centrifuge housing is not to be opened by the operator. VWR Mega Star 600 / 600R ver b, rel 17.07.2020...
  • Page 10: Package Contents

    VWR Mega Star 600 with TX-150 rotor, 4 round buckets and 4 ClickSeal ™ bucket lids 521-1894 VWR Mega Star 600R with TX-150 rotor, 4 round buckets and 4 ClickSeal bucket lids 521-1895 VWR Mega Star 600R with MicroClick 24 x 2 microtube rotor and ClickSeal rotor lid Unpacking and Installation Before setting up 1.
  • Page 11: Transporting

    Do not place anything under the centrifuge feet to level the centrifuge. The centrifuge is to be placed on horizontal and level supporting structures or benching. Horizontal level is to be checked when moving the centrifuge to a new location. VWR Mega Star 600 / 600R ver b, rel 17.07.2020...
  • Page 12: Mains Connection

    Storage WARNING When removing the centrifuge and accessories from use if necessary clean, disinfect or decontaminate the entire system. In doubt contact the VWR customer service. • Before storing the centrifuge and the accessories, it must be cleaned and if necessary disinfected and decontaminated.
  • Page 13: Intended Use

    This symbol demands to disconnect mains before transporting or servicing the centrifuge. This symbol demands to check, if the rotor is installed correct by lifting it slightly at the handle. VWR Mega Star 600 / 600R ver b, rel 17.07.2020...
  • Page 14: Product Specifications

    660 mm / 310 mm Width 370 mm Depth 490 mm Weight 35 kg Front Side Measurement, 1 m in front of the instrument at 1.6 m height Without Rotor VWR Mega Star 600 / 600R ver b, rel 17.07.2020...
  • Page 15: Refrigerant

    0.315 kg 21 bar 1430 0.45 t 521-1895 VWR Mega Star 600R Micro R-134a 0.315 kg 21 bar 1430 0.45 t Contains fluorinated greenhouse gases in a hermetically sealed system. VWR Mega Star 600 / 600R ver b, rel 17.07.2020...
  • Page 16: Mains Supply

    Region Directive Standard Europe Machinery Directive 2006/42/EU EN 61010-1:2010+A1:2016 230 V, 50 / 60 Hz Low Voltage Directive 2014/35/EU EN 61010-2-020:2016 EMC Directive 2014/30/EU EN 61326-1:2006 (Class B) RoHS 2011/65/EU VWR Mega Star 600 / 600R ver b, rel 17.07.2020...
  • Page 17: Description Of Buttons And Switches

    The control panel contains the keys and displays of the centrifuge (only the power switch is located on the right side (VWR Mega Star 600R) or on the backside (VWR Mega Star 600) of the device). VWR Mega Star 600...
  • Page 18: Vwr Mega Star 600R

    TOGGLE Key for Speed / RCF Use the TOGGLE key to change the display mode. Value (Speed / RCF Value). Program Keys Use the Program Keys to save and load programs. VWR Mega Star 600 / 600R ver b, rel 17.07.2020...
  • Page 19: Getting Started And Operation

    Getting Started and Operation NOTE Only display pictures of the VWR Mega Star 600R centrifuge are shown. The display of the VWR Mega Star 600 is the same, only the missing details for temperature. Switch on centrifuge Turn on the power switch of the device.
  • Page 20 CAUTION Check that the rotor is properly locked on the centrifuge spindle before each use by pulling it at its handle or from beneath the rotor. The rotor has to be locked tight. VWR Mega Star 600 / 600R ver b, rel 17.07.2020...
  • Page 21: Acceleration / Deceleration Rates

    5. Close the centrifuge door. Acceleration / Deceleration Rates The VWR Mega Star 600 / 600R offers you 2 profiles: standard and soft. The setting is displayed above the ACCELERATION / DECELERATION key. Press the ACCELERATION / DECELERATION key to cycle through and set the available profiles.
  • Page 22 2. Press the START key to accept or wait 4 seconds until the centrifuge automatically saves the chosen values. During continuous operation, the centrifuge will continue running until you stop it manually. VWR Mega Star 600 / 600R ver b, rel 17.07.2020...
  • Page 23 5. When the set temperature is reached, the centrifuge will beep and continue to hold the temperature. Press the STOP key to end the prewarming or precooling. The display shows the current temperature inside the rotor chamber. VWR Mega Star 600 / 600R ver b, rel 17.07.2020...
  • Page 24: Programs

    Programs The VWR Mega Star 600 Centrifuge is able to save up to 4 programs; the VWR Mega Star 600R is able to save up to 99 programs. It is only possible to save a program if the centrifuge is in standstill.
  • Page 25 Once the run is complete, the rotor and load should be checked, ensuring that all buckets are greased and can swing free and that the tubes are balanced by following the rotor instruction manual. VWR Mega Star 600 / 600R ver b, rel 17.07.2020...
  • Page 26: Short-Term Centrifugation

    Short-term centrifugation For quick centrifugation, the VWR Mega Star 600 / 600R has a PULSE- function. By holding down the PULSE key, spinning will start at maximum acceleration rate, continue at maximum rotor speed until the key is released. The rotor then decelerates at maximum rate. Preset values for acceleration, deceleration and speed or RCF are disregarded for the PULSE function.
  • Page 27: Aerosol-Tight Rotors

    NOTICE A total number of cycles completed on the centrifuge is counted, since installation or a new main board was installed. Cycle counts should be periodically recorded to help with the identification of the total number of runs a rotor has completed. VWR Mega Star 600 / 600R ver b, rel 17.07.2020...
  • Page 28 VWR Mega Star 600 / 600R ver b, rel 17.07.2020...
  • Page 29: Troubleshooting

    Pull the release cord attached to it to trigger the mechanical door release. The centrifuge door will open, and the samples can be removed. Open the centrifuge door. VWR Mega Star 600 / 600R ver b, rel 17.07.2020...
  • Page 30 4. Push the cord back into the centrifuge and mount the plug. Reconnect the centrifuge once the power has been restored. Switch on the centrifuge. Press the OPEN key to have the centrifuge door locks operative again. VWR Mega Star 600 / 600R ver b, rel 17.07.2020...
  • Page 31: Troubleshooting By Guide

    E-017; Read Manual Wait until the rotor has stopped. E-020; Check, if the rotor is qualified for the VWR Mega Star 600 / 600R E-021; Centrifuge. E-022; Check, if the bottom of the rotor is damaged and if the rotor is placed E-023 on the Auto-Lock correctly.
  • Page 32: When To Contact Customer Service

    Error message Troubleshooting E-019 Rotor Unknown Restart the centrifuge. Check, if the rotor is qualified for the VWR Mega Star 600 / 600R Centrifuge. If the error message appears again, inform the service. E-025; Read Manual Check, if the centrifuge door is blocked.
  • Page 33: Repair And Maintenance

    Any signs of corrosions, such as rust or white / metallic pitting, the rotor or accessories should be immediately removed from service. Particular attention should be taken with the bottom of buckets on swing out rotors and tube cavities on fixed angle rotors. VWR Mega Star 600 / 600R ver b, rel 17.07.2020...
  • Page 34 Organic solvents break down the grease in the motor bearing. The drive shaft could lock up. VWR Mega Star 600 / 600R ver b, rel 17.07.2020...
  • Page 35 Observe the safety precautions and handling instructions for the cleaning agents used. The rotor chamber and the rotor should be treated preferably with a neutral disinfectant. Contact the Service Department of VWR for questions regarding the use of other disinfectants. Disinfect as follows: 1.
  • Page 36 Clean the rotor before autoclaving and rinse it with distilled water. Remove all accessories (tubes, adapters) from the rotor. Place the rotor on a flat surface. NOTE No chemical additives are permitted in the steam. CAUTION Never exceed the permitted temperature and duration when autoclaving. VWR Mega Star 600 / 600R ver b, rel 17.07.2020...
  • Page 37: User Replaceable Accessories And Spare Parts

    In doubt contact the VWR customer service. For the disposal of the centrifuge mind the regulations in your country. Contact the VWR customer service for disposal of the centrifuge. For contact information check the back page of this manual.
  • Page 38: Warranty

    (2) years from date of delivery. If a defect is present, VWR will, at its option and cost, repair, replace, or refund the purchase price of this product to the customer, provided it is returned during the warranty period.
  • Page 39: Weee Conformity

    By doing so, you will help to conserve natural and environmental resources and you will ensure that your equipment is recycled in a manner that protects human health. Thank you VWR Mega Star 600 / 600R ver b, rel 17.07.2020...
  • Page 40: Appendix

    (10 %) Barium Salts Benzene Benzyl Alcohol Boric Acid Cesium Acetate Cesium Bromide Cesium Chloride Cesium Formate Cesium Iodide Cesium Sulfate Chloroform Chromic Acid (10 %) Chromic Acid (50 %) VWR Mega Star 600 / 600R ver b, rel 17.07.2020...
  • Page 41 Hydrofluoric Acid (10 %) Hydrofluoric Acid (50 %) Hydrochloric Acid (conc.) Formaldehyde (40 %) Glutaraldehyde Glycerol Guanidine Hydrochloride Haemo-Sol™ Hexane Isobutyl Alcohol Isopropyl Alcohol Iodoacetic Acid Potassium Bromide Potassium Carbonate VWR Mega Star 600 / 600R ver b, rel 17.07.2020...
  • Page 42 Lactic Acid (20 %) N/Butyl Alcohol N/Butyl Phthalate N, N-Dimethyl- formamide Sodium Borate Sodium Bromide Sodium Carbonate (2 %) Sodium Dodecyl Sulfate Sodium Hypochlorite (5 %) Sodium Iodide Sodium Nitrate VWR Mega Star 600 / 600R ver b, rel 17.07.2020...
  • Page 43 Nitric Acid (95 %) Hydrochloric Acid (10 %) Hydrochloric Acid (50 %) Sulfuric Acid (10 %) Sulfuric Acid (50 %) Sulfuric Acid (conc.) Stearic Acid Tetrahydrofuran Toluene Trichloroacetic Acid Trichloroethane Trichloroethylene VWR Mega Star 600 / 600R ver b, rel 17.07.2020...
  • Page 44 Chemical resistance data is included only as a guide to product use. Because no organized chemical compatibility data exists for materials under the stress of centrifugation, when in doubt we recommend pretesting sample lots. VWR Mega Star 600 / 600R ver b, rel 17.07.2020...
  • Page 45 Local VWR offices in Europe and Asia Pacific Austria Hungary Poland VWR International GmbH VWR International Kft. VWR International Sp. z o.o. Graumanngasse 7 Simon László u. 4. Limbowa 5 1150 Vienna 4034 Debrecen 80-175 Gdansk Tel.: +43 1 97 002 0 Tel.: +36 (52) 521-130...
