18 • Product description
Rev. 01 12/21

Connections and interfaces

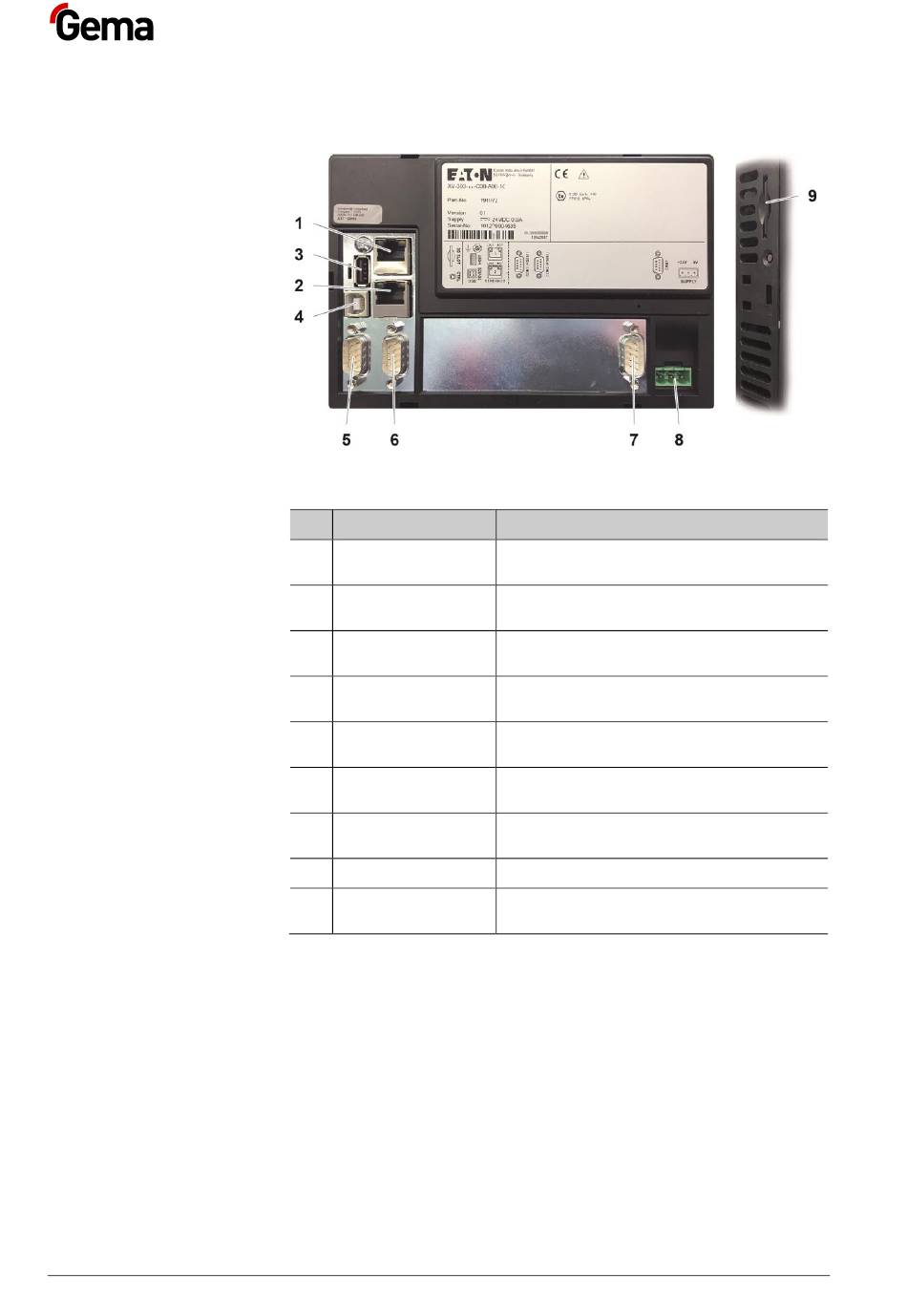

Fig. 5: Connections
Connection
1 Ethernet 1
2 Ethernet 2
3 USB host
4 USB device
5 COM1
6 COM2
7 CAN
8 Power supply
9 SD card slot
Description
RJ-45 socket, 8-pin, 2 LEDs (CAT5e/6),
LAN1, 10/100 Mbps
RJ-45 socket, 8-pin, 2 LEDs (CAT5e/6),
LAN1, 10/100 Mbps
USB 2.0, not galvanically isolated, plug
type A, full power (500 mA)
USB 2.0, not galvanically isolated, plug
type B
RS-232, not galvanically isolated, SUB-D
connector 9-pin
RS-485, not galvanically isolated, SUB-D
connector 9-pin
CAN1, not galvanically isolated, SUB-D
connector 9-pin
MSTB plug connector, 3-pin
SDSC or SDHC according to SDA
specification 2.0
MagicControl 4.0 (CM40)
