Axes - Gema MagicControl 4.0 Operating Instructions And Spare Parts List

Axes

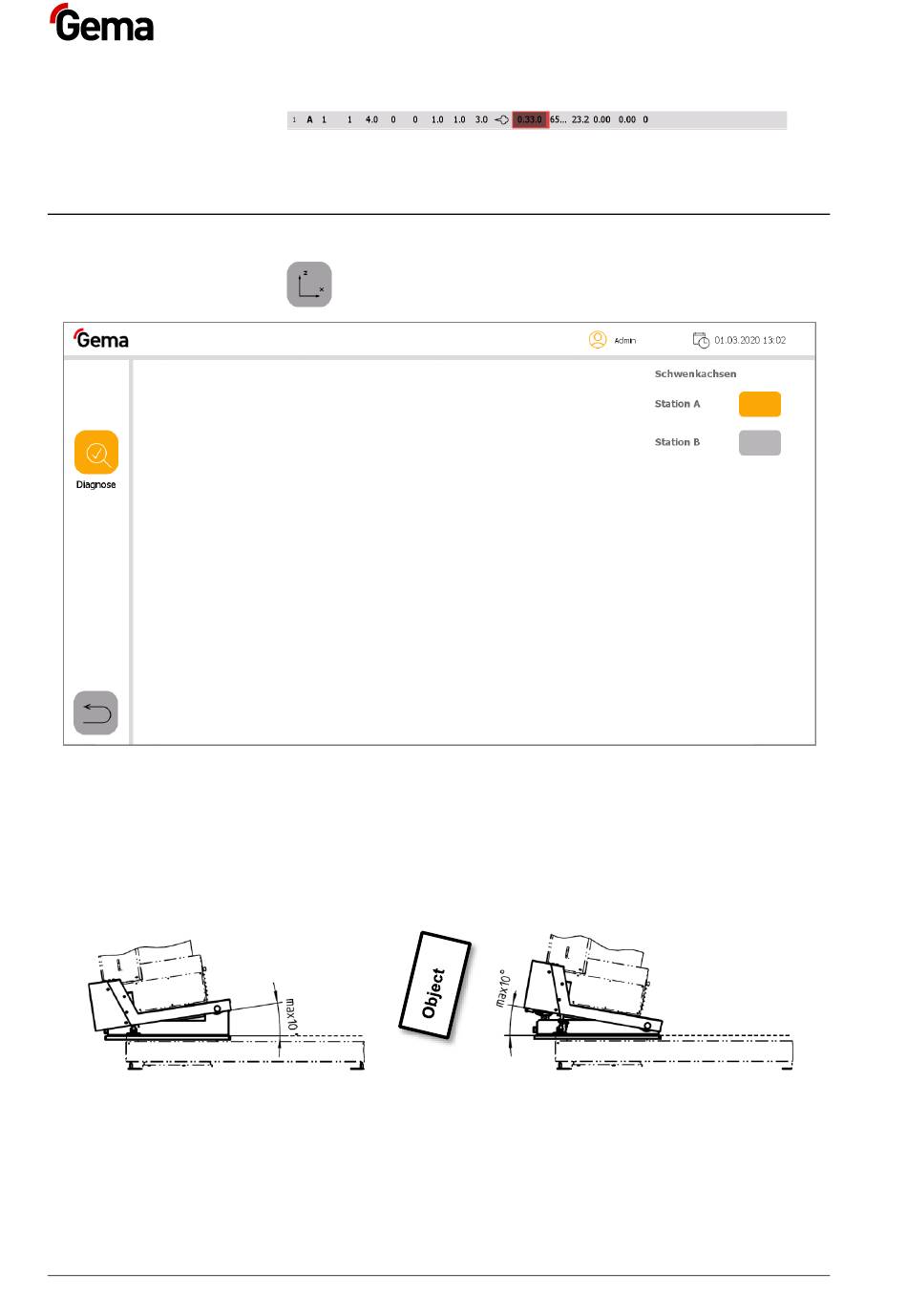

Fig. 86: "Axes" diagnosis screen
Fig. 87:
86 • Diagnostic
Rev. 01 12/21
This status indicates that download is not possible and the CGxx memory
must be cleared (see also the CGxx operating manual).
This diagnosis page is used exclusively for swivel axes.
Swivel axes are a Gema product that is very rarely used.
Swivel axes are used when a customer has coating objects that are tilted
at a precisely defined angle. In this case one axis with a positive angle
and one axis with a negative angle can be used. This means that the
coating distance remains unchanged over the entire height of the object.
MagicControl 4.0 (CM40)
