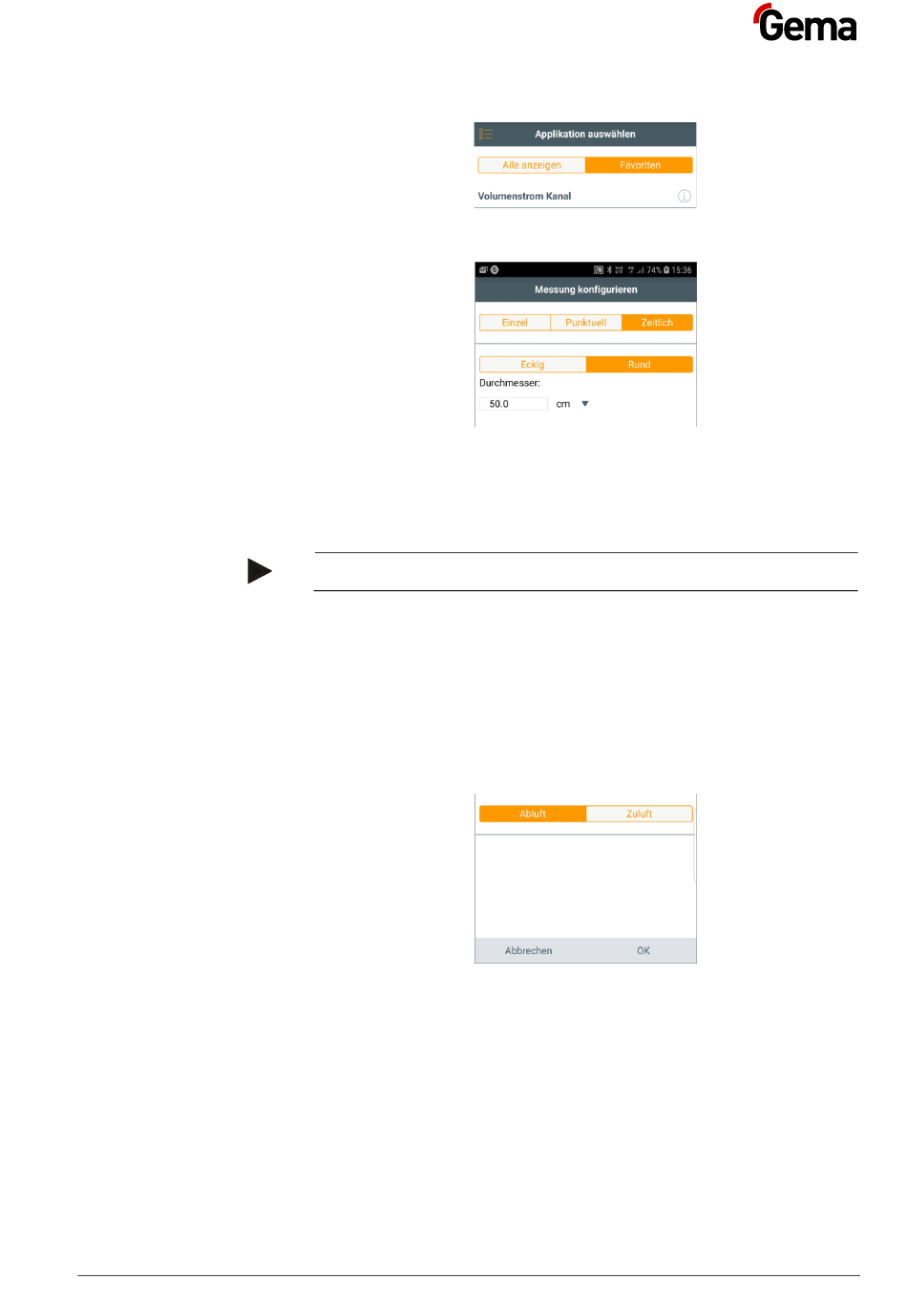

Measurement configuration

•
Volume flow duct
•
Tube type = Round
•
Tube diameter (duct diameter) must be configured
–
The tube diameter is shown in the assembly drawing of the
ducting.
An incorrect diameter leads to an incorrect air volume result!
•
Measurement methods:
–
Single
–
Selective
–
Time
We recommend the "Temporal" variant. With this variant, the
exhaust air volume is measured over a defined time period. A
measuring time of 60 seconds produces a precise result.
•
Measurement direction = Exhaust air
