16 • Product description
Rev. 01 12/21

Connections

MagicControl CM40
Ethernet 1
Ethernet 2
USB host
USB device
COM1
COM2
CAN
SD card slot

Environmental conditions

Touch Panel
Climate
Vibration / shock / drop test

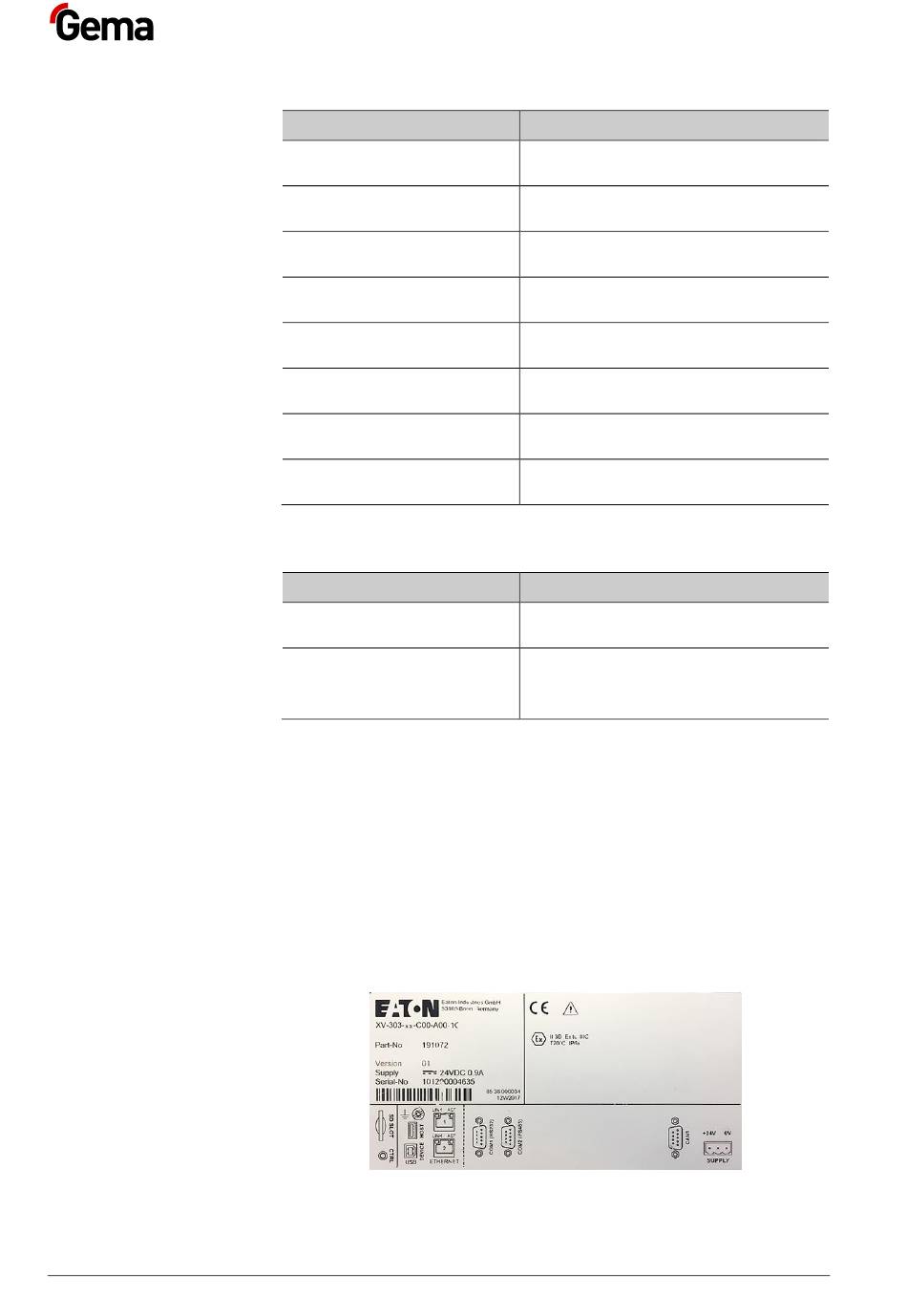

Rating plate

A rating place is attached to the back of the device for the purpose of
identification. The rating place contains the following information:
–
Type designation
–
Version
–
Required power supply
–
Serial no.
–
Arrangement of interfaces and operating elements
Fig. 3: Rating plate
RJ-45 socket, 8-pin, 2 LEDs
(CAT5e/6), LAN1, 10/100 Mbps
RJ-45 socket, 8-pin, 2 LEDs
(CAT5e/6), LAN1, 10/100 Mbps
USB 2.0, not galvanically isolated,
plug type A, full power (500 mA)
USB 2.0, not galvanically isolated,
plug type B
RS-232, not galvanically isolated,
SUB-D connector 9-pin
RS-485, not galvanically isolated,
SUB-D connector 9-pin
CAN1, not galvanically isolated, SUB-
D connector 9-pin
SDSC or SDHC according to SDA
specification 2.0
10-40 °C, 10-95% relative humidity,
not condensing
Vibration – IEC 60068-2-6
Shock – IEC 60068-2-27
Drop test – IEC 60068-2-31
MagicControl 4.0 (CM40)
