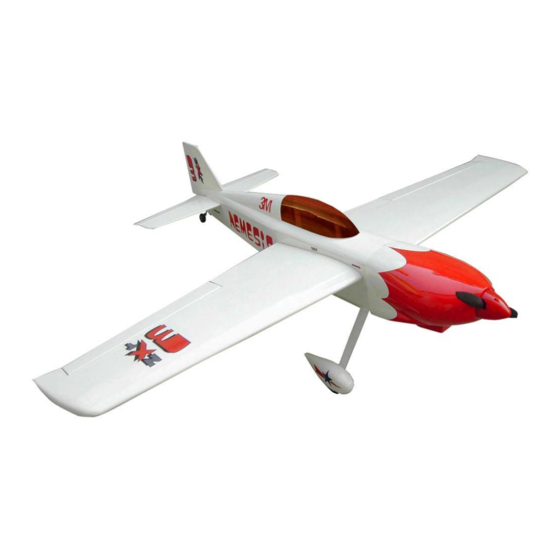

Wing Span:66.9in/1700mm;Flying Weight:3000g;
Wing Area:50sq.dm;
Length:57in/1450mm;
CAUTION : this plane is not a toy!
Before use , please carefully read this manual.
●First-time builders should seek advice from people having building
experience in order to assemble the model correctly and to produce its
performance to full extent .
●Assemble this kit only in places out of children's reach!
●Take enough safety percautions prior to operating this model.
You are responsible for this model's assembly and safe operation!
●Always keep this instruction manual ready at hand for quick
reference,even after completing the assembly.
Radio:4channels 5servos;
Engine:2cycle 60 or 4cycle 91

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the F130 Nemins-60 and is the answer not in the manual?

Questions and answers

Related Manuals for Flight Model F130 Nemins-60

Summary of Contents for Flight Model F130 Nemins-60

  • Page 1 Wing Span:66.9in/1700mm;Flying Weight:3000g; Wing Area:50sq.dm; Radio:4channels 5servos; Length:57in/1450mm; Engine:2cycle 60 or 4cycle 91 CAUTION : this plane is not a toy! Before use , please carefully read this manual. ●First-time builders should seek advice from people having building experience in order to assemble the model correctly and to produce its performance to full extent .

  • Page 2: Kit Contents

    KIT CONTENTS AILERON SERVO INSTALLATION Cut away covering film for the servo.
  • Page 3 Glue the servo to prepared servo plywood,then put the servo into the servo hole. Pull out the servo extention from main wing. Fixup the servo by the screws, then adjust the horn and servo arm. Fix the horn in place firmly.

  • Page 4: Main Wing Installation

    MAIN WING INSTALLATION Find out the horns in each sides of the fuselage, then cut the film. Insert the joiner into the fuselage,and find the left and right main wing in the right position. Fasten the wings by the screws provided. Pull the servo extentions into the fuselage from the main wing.

  • Page 5: Elevator & Rudder Servo Installation

    ELEVATOR & RUDDER SERVO INSTALLATION Find and cut the hole for stabilizer. Find and Cut the hole for vertical tail. Find and cut the hole for elevator servo.
  • Page 6 ADJUSTMENT Cut away the film along the edges. Glow the stabilizer to the fuselage.

  • Page 7: Tail Wheel Installation

    Cut away the film for the rudder servo. TAIL WHEEL INSTALLATION Cut the hole for hinge assembly. Screw the tail landing gear to the tail wheel by the screw provided.
  • Page 8 Insert the tail wheel into the vertical fin as shown. Insert the Vertical Fin to the tail fuselage. Install the tail wheel and fasten the presser of the tail wheel to the stabilizer by screws.
  • Page 9 Connect the control horn to the linkage of the servo. Assemble the elevator control horn. Assemble the other side elevator servo as shown.

  • Page 10: Main Landing Gear Installation

    Assemble the rudder control horn. MAIN LANDING GEAR INSTALLATION Screw the wheel to the landing gear. Be assured that the screw is fixed up. Install the wheel cover, and fix it up to landing gear with TP screw.

  • Page 11: Engine Installation

    Fixup the landing gear strut to fuselage with 3 bolts. ENGINE INSTALLATION Line up the template with the firewall thrust lines and mark the location of the engine mounting holes. Use a drill to dill the engine mounting holes. If use 4cycle 91 size. Install the engine mount on both sides with four 3mm screws.

  • Page 12: Fuel Tank Installation

    If use 2cycle 60 size. Use the same method to this size engine. FUEL TANK INSTALLATION Install the trottle servo as shown. Install the fuel tank into the fuselage, and fixup it with belt.

  • Page 13: Cowl Installation

    Fuel tank detail assembly picture as shown. Install the elevator and rudder servo and throttle into fuselage as shown. COWL INSTALLATION Install the cowling with 4pcs TP screws.

  • Page 14: Canopy Installation

    CANOPY INSTALLATION Assemble the movable canopy. Make sure it is securitly CONTROL THROWS & CG POSITION...
  • Page 16 Another scheme for choice. Flight Model MFG CO ADD:No.10,Fu Ning Street,Xian Xi Industrial,Chang An Town,Dong Guan City,Guang Dong Province,China Tel: +86-769-85070618 / +86-769-81627996 / +86-769-89790965 Fax: +86-769-85091868 E-mail:info@flight-model.com / flight_model@126.com Web: http://www.flight-model.com/product/eindex.asp http://flight-model.preview.alibaba.com/...
