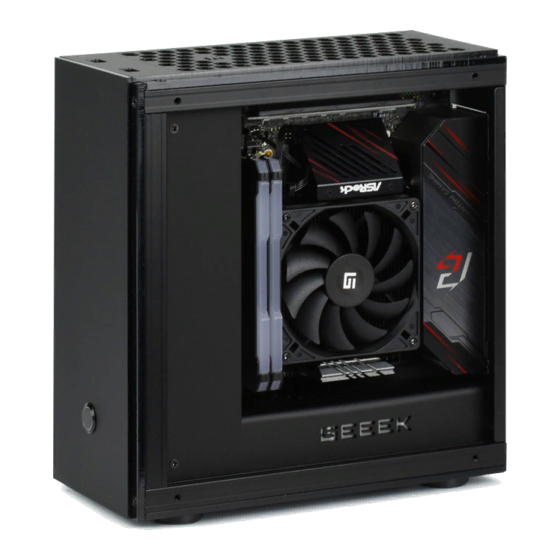

- Page 1 All manuals and user guides at all-guides.com Version 2.0 A30 V2 INSTALLATION GUIDE 2008A...
-
Page 2: Screws List
All manuals and user guides at all-guides.com SCREWS LIST 25mm Standoff x2 40mm Standoff x4 Screws for Power A1 : Thumb Screw x8 Screws for Fan M3 T type Nut Supply A2 : M3x5mm x11 M4x14mm M4x8mm M3x8mm M3x5mm M3x10mm... - Page 3 All manuals and user guides at all-guides.com Aluminum Frame Installation Screw Acrylic Panel Please read the “Aluminum Frame installation”before assembling this case...
- Page 4 All manuals and user guides at all-guides.com STEP 01 Aluminum Frame Installation 230mm 215mm 230mm...
- Page 5 All manuals and user guides at all-guides.com STEP 02 Install the M/B Standoffs 40mm 4X...
- Page 6 All manuals and user guides at all-guides.com STEP 03 Install ① Left Upper and ② Lower Side Brackets on the Aluminum Frame...
- Page 7 All manuals and user guides at all-guides.com STEP 04 Install Right Side Brackets on the Aluminum Frame...
- Page 8 All manuals and user guides at all-guides.com STEP 05 Rear Panel Installation...
- Page 9 All manuals and user guides at all-guides.com STEP 06 ①Bottom Panel and ②Foot Pad Installation...
- Page 10 All manuals and user guides at all-guides.com STEP 07 Power Supply Installation...
- Page 11 All manuals and user guides at all-guides.com STEP 08 M/B Installation Highly recommend to install the CPU cooler and ram before installing the motherboard.
- Page 12 All manuals and user guides at all-guides.com STEP 09 PCIe Riser Cable Installation (Optional Purchase) 25mm 2X...
- Page 13 All manuals and user guides at all-guides.com STEP 10 2.5” SSD/HDD Installation...
- Page 14 All manuals and user guides at all-guides.com STEP 11 Install and Secure the Graphic Card...
- Page 15 All manuals and user guides at all-guides.com STEP 12 USB 3.0 Cable and 92mm Fan (Optional Purchase) Installation...
- Page 16 All manuals and user guides at all-guides.com STEP 13 Top Panel Installation...
- Page 17 All manuals and user guides at all-guides.com STEP 14 ①Power Switch and ②Front Panel Installation...
- Page 18 All manuals and user guides at all-guides.com STEP 15...
- Page 19 All manuals and user guides at all-guides.com STEP 16 ①Side Cover and ②PSU Cover Installation...
- Page 20 All manuals and user guides at all-guides.com STEP 17 Side Panels Installation...
