Summary of Contents for Geeek A50

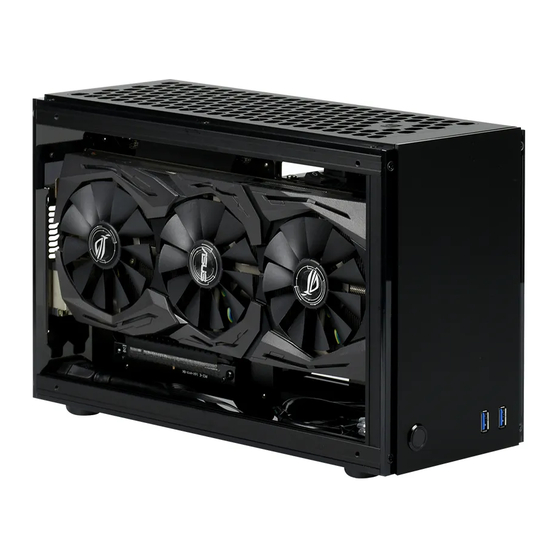

- Page 1 A50 INSTALLATION GUIDE Version 1.3 20191115-2...
-
Page 2: Screws List
SCREWS LIST 25mm Standoff X2 30mm Standoff X4 Screws for Fan 6#32x10mm M3 Nut 40mm Standoff X4 M4x16mm M4x8mm M3x8mm M3x5mm M3x10mm... - Page 3 Aluminum Frame Installation Screw Acrylic Panel Please read the “Aluminum Frame installation”before assembling this case...
- Page 4 STEP 01 Aluminum Frame Installation...
- Page 5 STEP 02 Install the Standoffs on the Left Upper and Lower Side Brackets 40mm 4X...
- Page 6 Install the Step 2 on Left Upper and STEP 03 Lower Aluminum Frames...
- Page 7 STEP 04 Install the HDD Bracket on the Right Aluminum Frame...
- Page 8 STEP 05 Install the Rear Panel...
- Page 9 STEP 06 Install the Power Extension Cable...
- Page 10 STEP 07 Install the Bottom Panel We suggest to complete all the installations and cable management first and install the bottom panel at last. It will be easier for the assembly.
- Page 11 STEP 08 Install the Motherboard...
- Page 12 Install the PCIe Riser Cable STEP 09 (Optional Purchase) PCI-e Riser Cable (Optional Purchase) When you have difficulties during the assembly, you can 25mm 2X remove the bottom panel first before assembly.
- Page 13 STEP 10 Install and Secure the Graphic Card...
- Page 14 STEP 11 Install the Power Supply Bracket 30mm 4X...
- Page 15 STEP 12 Install the Power Supply When you have difficulties during the assembly, you can remove the bottom panel first before assembly.
- Page 16 STEP 13 Install the 2.5”HDD...
- Page 17 Install the Power Switch, STEP 14 Front USB and Panel...
- Page 18 STEP 15 Install the Side Panels...
