Summary of Contents for Geeek A1 V2

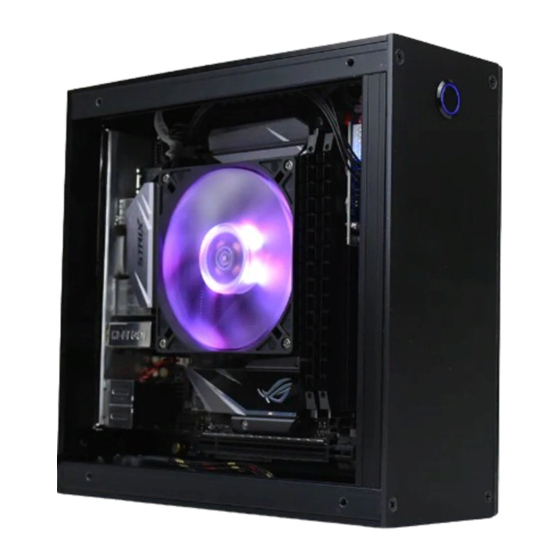

- Page 1 A1 V2 INSTALLATION GUIDE 012822...
- Page 2 SCREWS LIST M4 Thumb Screws M3 Nut M4x16 M4x8 M3x8 M3x5 M3x5...
- Page 3 Aluminum Frame Screw Installation 螺絲 Acrylic Panel 壓克力板 鋁框架安裝說明 螺母 Please read the “Aluminum Frame installation”before assembling this case 安裝前請務必先理解鋁框架如何安裝...
- Page 4 STEP 01 Aluminum Frame Installation 安裝機身鋁框架 205mm 205mm 175mm 205mm 175mm C 4X...
- Page 5 STEP 02 Rear Panel Installation 安裝後背板 G 4X...
- Page 6 STEP 03 Install the Aluminum Frame to the Rear Panel 安裝機身鋁框架到後背版 This side towards to the outer 此面向外 D 2X This side towards to the inner 此面向內...
- Page 7 STEP 04 M/B Bracket Installation 安裝主機板支架 B 4X E 4X...
- Page 8 STEP 05 M/B Installation 安裝主機板 E 4X...
- Page 9 STEP 06 DC-ATX PSU Installation 安裝DC-ATX電源...
- Page 10 STEP 07 Install the Aluminum Frame to the Rear Panel 安裝機身鋁框架到後背版 D 2X This side towards to the outer 此面向外 This side towards to the inner 此面向內...
- Page 11 STEP 08 Power Swith Installation 安裝電源開關...
- Page 12 STEP 09 Front Panel Installation 安裝前面板 D 4X...
- Page 13 STEP 10 2.5” SSD/HDD Installation 安裝2.5”硬碟 B 2X E 4X...
- Page 14 STEP 11 Top&Bottom(Foot Pad) Panel Installation 安裝上面板及底部面板 B 8X G 12X...
- Page 15 STEP 12 Side Panel Installation 安裝側板 A 8X Note ! Side panel comes with long and short side 請注意!側板有分長短邊...
- Page 16 STEP 13 AC-DC Power Adapter Installation 安裝電源變壓器...
