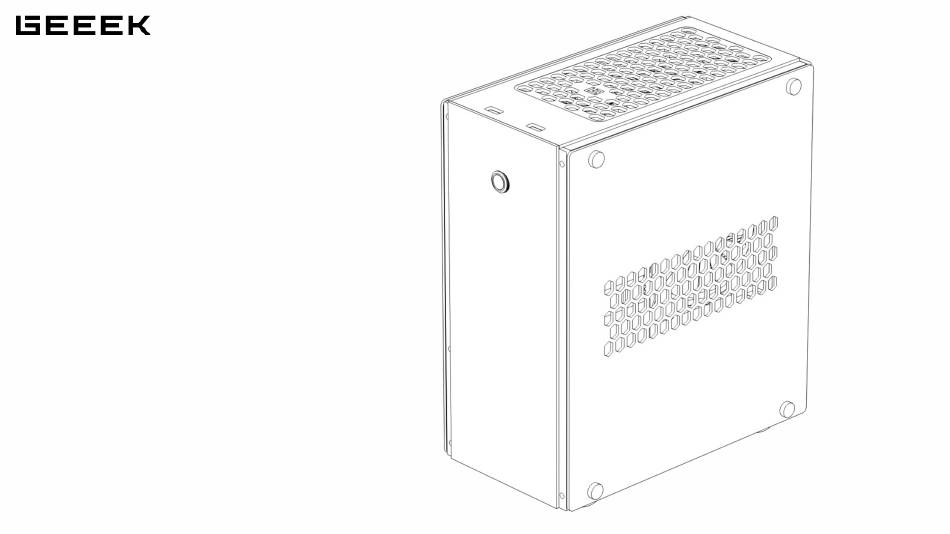

- Page 1 A40 V3 INSTALLATION GUIDE 2005A...
- Page 2 SCREWS LIST 25mm Standoff x2 40mm Standoff x4 6#32x10mm M3 Nut A1-Thumb Screw x8 B1-Screws for Fan x8 B2-Screws for Radiator x4 A2-M3x8mm x8 M4x14mm M4x8mm M3x8mm M3x5mm M3x5mm...
- Page 3 Aluminum Frame Installation Screw Acrylic Panel Please read the “Aluminum Frame installation”before assembling this case...
- Page 4 STEP 01 250mm Aluminum Frame Right Aluminum Frame Installation 260mm Aluminum Frame 250mm Aluminum Frame...
- Page 5 STEP 02 Install the HDD Bracket on the Right Aluminum Frame...
- Page 6 STEP 03 Rear Panel Installation...
- Page 7 STEP 04 Bottom Panel Installation...
- Page 8 STEP 05 Power Switch and Front Panel Installation Power Switch...
- Page 9 STEP 06 Install the Standoffs on the Left Upper and Lower Side Brackets 40mm 4X 25mm 2X 25mm 40mm...
- Page 10 STEP 07 Install Left Upper and Lower Side Brackets on the Aluminum Frame...
- Page 11 STEP 08 Left Upper and Lower Side Brackets Installation...
- Page 12 STEP 09 PCIe Riser Cable Installation (Optional Purchase) PCI-e Riser Cable (Optional Purchase)
- Page 13 STEP 10 Install and Secure the Graphic Card...
- Page 14 STEP 11 Motherboard Installation Please install the RAM and CPU Cooler on the motherboard first...
- Page 15 STEP 12 Power Supply Installation...
- Page 16 STEP 13 USB Module Installation...
- Page 17 STEP 13 Case Fan Installation...
- Page 18 STEP 14 Top Panel Installation...
- Page 19 STEP 15 2.5” SSD/HDD Installation 4-8X...
- Page 20 STEP 16 Foot Pad Installation...
- Page 21 STEP 17 Side Panels Installation...
