Summary of Contents for Geeek A40

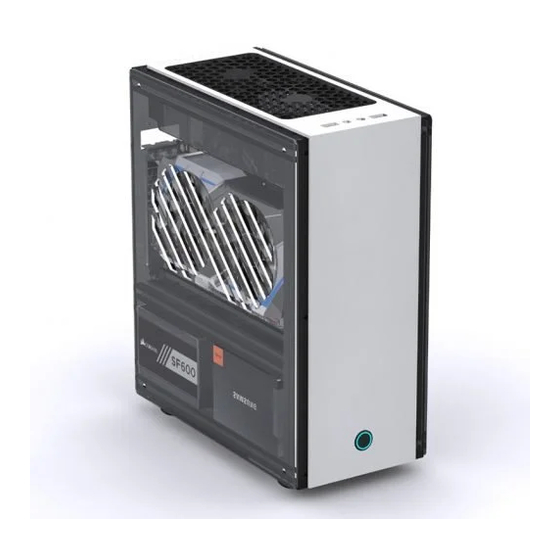

- Page 1 Version 1.0 A40 Installation Guide Update 20190128...
- Page 2 SCREWS LIST 2X 5mm standoff M3.5 x 8mm M3 Nuts Screws for Fan 2X 25mm standoff for Power Switch, with M3x8mm for 4X 40mm standoff 3.5" HDD Aluminum Frame M3 x 8mm M4 x 8mm M3 x 5mm M3 x 8mm M3 x 6mm for standoff for GPU, Aluminum...
- Page 3 Aluminum Frame Screw Installation Acrylic Panel Please read the “Aluminum Frame installation”before assembling this case...
- Page 4 Top Panel OVERVIEW Fan Grill Rear Panel Upper Left Bracket Left Panel 6x Aluminum Frame - Long Ones( 250mm) Right Panel Front I/O Module Front HDD Bracket 1x Aluminum Frame- Short Ones (235mm) Lower Left Bracket Front Panel Power Switch Right Bracket 4x Foot Pad Bottom Cover...
- Page 5 STEP 01 Upper Left & Lower Left Bracket Installation 40mm 4X 25mm 2X Please make sure the distance from the edge of the holes on the PICE riser before insatlling the 25mm GPU standoffs.
- Page 6 STEP 02 Upper Left & Lower Left Bracket Installation 250mm 235mm 260mm 250mm...
- Page 7 STEP 03 Right Bracket Installation 250mm 260mm 250mm...
- Page 8 STEP 04 Rear Panel Installation...
- Page 9 Bottom Cover & Foot Pad STEP 05 Installation...
- Page 10 STEP 06 Power Supply Installation...
- Page 11 STEP 07 2.5”HDD Installation...
- Page 12 PCI-e Extension Cable Installation STEP 08 (Optional Purchase) PCI-e Extension Cable (Optional Purchase)
- Page 13 STEP 09 Motherboard Installation...
- Page 14 STEP 10 Front 2.5”HDD Installation...
- Page 15 STEP 11 GPU Card Installation...
- Page 16 STEP 12 Fan & Fan Grill Installation...
- Page 17 STEP 13 Top Panel Installation...
- Page 18 Power Switch and Front Panel STEP 14 Installation Power Switch Front Panel Front I/O...
- Page 19 STEP 15 Front Panel Installation...
- Page 20 STEP 16 Side Panel Installation...
