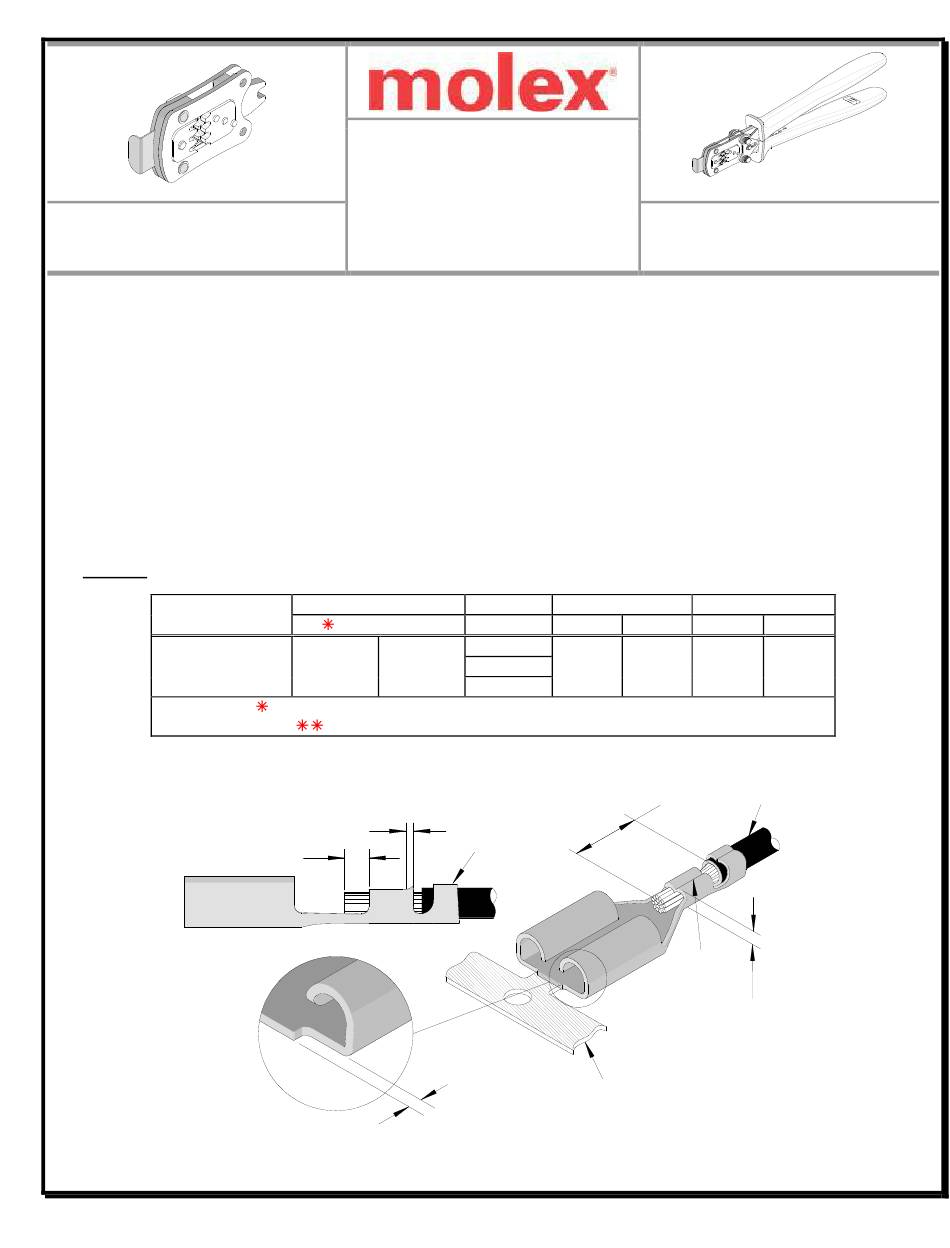

molex 63823-6370 Specification Sheet

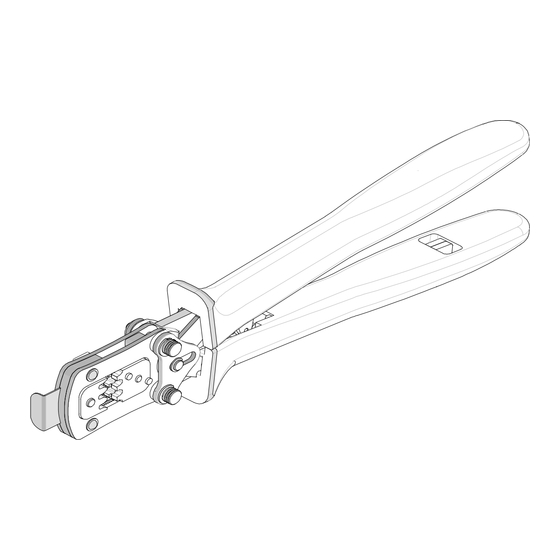

Hand Crimp Tool: for Quick Disconnect, High Reliability Terminal (HRT)
Modular Crimp Head
Order No. 63823-6370
FEATURES
A full cycle ratcheting hand tool ensures complete crimps
%
Ergonomically designed soft handles
%
Precisely designed crimping profiles with simple contact positioning
%
Easy handling due to outstanding force ratio
%
Modular Crimp Head is removable and can be use in the Air Powered Tool Order No.63816-0100,
%
accompanied by Air Powered Crimp Adapter (Order No. 63816-0700).
Can also be used in the Battery Powered Tool Order No.63816-0200 (110 V) or 63816-0250 (220 V),
%
accompanied by Battery Powered Crimp Adapter (Order No. 63816-0600).
SCOPE
Products: Quick Disconnect, High Reliability Terminal (HRT), Female for 0.50-1.00mm² Wire.
Terminal Series No.
94512
DEFINITION OF TERMS
Doc No: ATS-6382363HM
Revision: B
Application Tooling
Specification Sheet
Terminal Order No.
Reel Form Only
94512-0100 94512-0101
Customer to cut off terminal from reel: 0.20mm (.008") maximum Cut-off Tab.
See crimp specification for the individual Insulation Diameter.
BELL MOUTH
BRUSH
Release Date: 09-16-10
Revision Date: 10-14-10
Wire Size Insulation Diameter
mm² / AWG mm
0.50
0.75 2.60 Max .102 Max 5.30-6.30 .209-.248
1.00
INSULATION
CRIMP
▲SEE NOTE
CUT-OFF
TAB
TERMINAL
STRIP
UNCONTROLLED COPY
TYPE 4A
Hand Crimp Tool
Order No. 63823-6300
Strip Length
In. mm In.
WIRE
STRIP
LENGTH
SEAM
CONDUCTOR
CRIMP HEIGHT
Page 1 of 6
