Crux Sightline VIMCF-93C Quick Start Manual

INTERFACING SOLUTIONS
VIMCF-93C
DODGE:
2013 - 2014 Ram
JEEP:
2014 -2014 Grand Cherokee
IMPORTANT:
Compatible Nav Radio Type:
U-CONNECT 8.4" SCREEN (1-Piece)
VIDEO IN-MOTION FOR DODGE & JEEP VEHICLES 2013-UP
We recommend reading this installation guide first before starting any
work. Following these instructions from "Start" to" Finish" will ensure
a smooth and hassle free installation. We offer telephone support M-F
9:00 AM – 5:00PM PDT at 1 (855) 822-1348. We are here to help.
PARTS INCLUDED:
(1) CF-93C Interface
(1) CF-93C T-Harness
(1) Instruction
PRECAUTIONS:
- Remove the negative side of the battery to avoid any short circuits
durring the installation.
- Do not install the interface near any major components or near the
HVAC system. This may cause damage or overheating to the vehicle.
- Do not disconnect the airbag connection behind the radio panel.
:
PRELIMINARY
Please read the entire mannual before installing this interface.
SAFETY WARNING:
THIS INTERFACE IS DESIGNED TO ACTIVATE
VIDEO IN-MOTION TO ALLOW THE PASSENER
ACCESS TO THE ADDRESS INPUT WHILE THE
VEHICLE IS IN-MOTION. THIS INTERFACE MAY
CAUSE AN ERROR WHEN SERVICED AT THE OEM
DEALER. BE AWARE THAT MOST DEALERS
WILL ATTEMPT TO VOID THE MANUFACTURERS
WARANTY WHEN INSTALLING ANY AFTERMARKET
EQUIPMENT. IMPROPER USE OF THIS INTERFACE
BY THE DRIVER MAY RESULT IN CITATION. DRIVER
MUST KEEP FULL ATTENTION ON THE ROAD AND
RESPOSIBILITY ON THE SAFETY OF HIS
PASSENGERS.
INSTALLING THE INTERFACE:
1. Remove the factory display to gain access to the factory connectors.
2. Remove the 52-Pin connector from behind the display.
2. Make the T-Harness connections behind the factory display.
(if the connectors do not match please contact tech support)
4. Set dip switch "1" to permanently activate the VIM feature.
5. Test the Navigation address input while the car is in-motion to verify
the VIM is active.

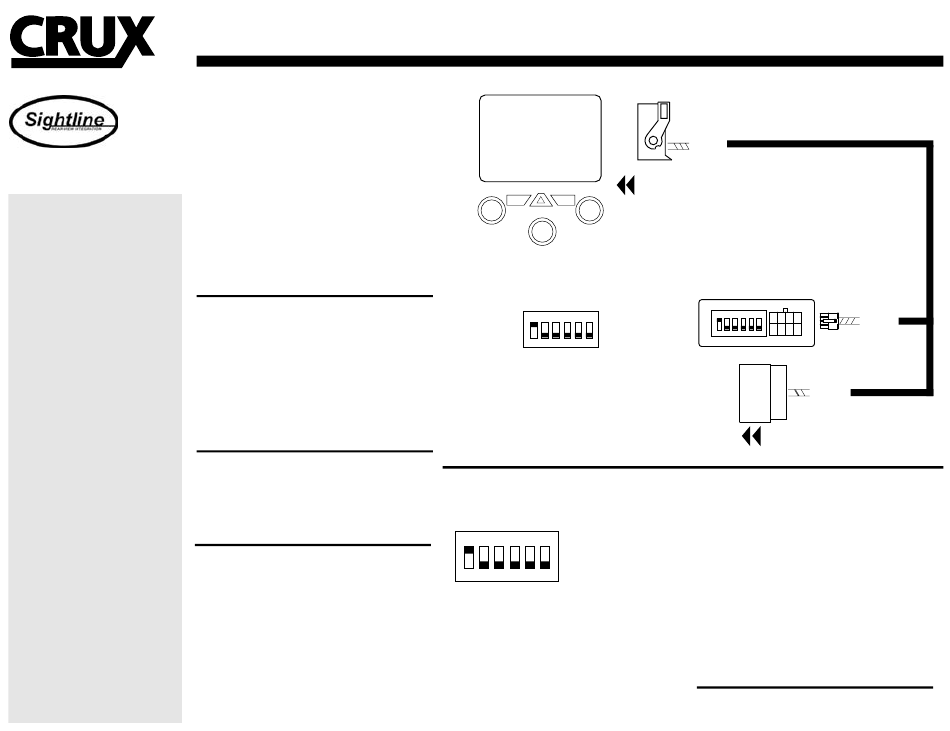

INSTALLATION OVERVIEW
8.4"
DISPLAYS
VOLUME
TO ENABLE VIDEO
IN-MOTION
ON
1 2 3 4 5
TUNE
VOLUME
SETTING THE DIP SWITCHES
TO ENABLE VIDEO
IN-MOTION
1. On = Enable VIM
2. Not Used
3. Not Used
ON
4. Not Used
5. Not Used
1 2 3 4 5 6
6. Not Used
52-PIN
(male plug)
TO FACTORY
DISPLAY
TUNE
52-PIN
1. On = Enable VIM
2. Not Used
(male plug)
3. Not Used
ON
4. Not Used
5. Not Used
1 2 3 4 5 6
6 6. Not Used
TO FACTORY
DISPLAY
TO FACTORY
HARNESS
ON
1 2 3 4
TROUBLE SHOOTING
1. No video display while driving.
- Make sure the dip swithces are in the proper location.
Rev. 110413
8-PIN
(male plug)
52-PIN
(female plug)
8-PIN
(male plug
5 6
52-PIN
(female plug)
TO FACTORY
HARNESS
