Crux VRFAD-81C Manual

INTERFACING SOLUTIONS
PRODUCT FEATURES:
- Adds front and back up camera inputs plus an extra video input
- Uses the steering wheel control buttons or radio buttons to toggle between the inputs.
- Picture-in-picture mode combining after-market rear-view and front camera picture(s) with factory parking sensor
graphics.
- Interactive parking guide lines with calibration function.
- Simultaneous use of picture-in-picture factory parking sensor graphics and interactive lane lines
- Built-in on-screen display and setup.
- 2 trigger outputs (+12V max. 1A), separately adjustable switching events (CAN, ACC, camera, reverse gear)
NOTES:
1. Factory Audio Aux Input is required if video input will be used for AV sources.
2. The VRFAD-81C connects at the multimedia player located in the glove box.
PARTS INCLUDED:

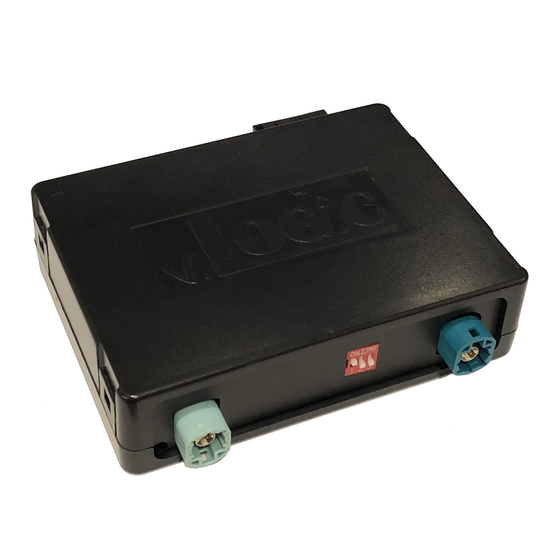

VRFAD-81C Module
LVDS1 Cable (to vehicle)
Crux Interfacing Solutions • 21541 Nordhoff St., Unit C, Chatsworth, CA 91311
R
VRFAD-81C Harness
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
Front and Rear View Integration Interface
for AUDI Vehicles with MMI/MIB/MIB2 Systems
1 .
LVDS 2 Cable (to radio)
1 of 11
VRFAD-81C
Video Harness
rev.022420
