Crux AVIGM-04S Manual

INTERFACING SOLUTIONS
AVIGM-04S
+ VCIP5
CHEVROLET:
2012 - 2014 Sonic
2012 - 2014 Spark
A/V INPUT INTEGRATION FOR SELECT CHEVROLET VEHICLES 2012-2014
We recommend reading this installation guide first before starting any
work. Following these instructions from "Start" to" Finish" will ensure
a smooth and hassle free installation. We offer telephone support M-F
9:00 AM – 5:00PM PDT at 1 (855) 822-1348. We are here to help.
PARTS INCLUDED:
(1) GM-04S Interface
(1) GM-04S Harness
(1) GM-04S A/V Adaptor
(1) VCIP5 (HDMI to Composite Cable)
(1) Instruction
PRECAUTIONS:
- Remove the negative side of the battery to avoid any short circuits
during the installation.
- Do not install the interface near any major components or near the
HVAC system. This may cause damage or overheating to the vehicle.
- Do not disconnect the airbag connection behind the radio panel.
:
PRELIMINARY
Please read the entire manual before installing this interface.
Vehicle must be equipped with factory DVD changer.
This interface does not activate DVD reader.
SAFETY WARNING:
THIS INTERFACE IS DESIGNED TO ACTIVATE
VIDEO IN-MOTION TO ALLOW THE PASSENGER
ACCESS TO THE ADDRESS INPUT WHILE THE
VEHICLE IS IN-MOTION. THIS INTERFACE MAY
CAUSE AN ERROR WHEN SERVICED AT THE OEM
DEALER. BE AWARE THAT MOST DEALERS
WILL ATTEMPT TO VOID THE MANUFACTURERS
WARRANTY WHEN INSTALLING ANY AFTERMAR-
KET EQUIPMENT. IMPROPER USE OF THIS INTER-
FACE BY THE DRIVER MAY RESULT IN CITATION.
DRIVER MUST KEEP FULL ATTENTION ON THE
ROAD AND RESPONSIBILITY ON THE SAFETY OF
THEIR PASSENGERS.
40-PIN
(male plug)
INSTALLING THE INTERFACE:
1. Remove the factory radio to gain access to the factory connectors.
TO FACTORY
2. Remove the 40-Pin connector from behind the radio.
RADIO
2. Make the T-Harness connections behind the factory radio.
(if the connectors do not match please contact tech support)
4. Set the dip switch to permanently activate the VIM feature.
5. Test the display while the car is in-motion to verify the VIM is active.
SETTING THE DIP SWITCHES
Dip 1: This dip switch is the permanent solution for keeping the VIM
unlocked.
ALL OTHER DIP SWITCHES
8-PIN
ON
MUST BE SET TO OFF!
(male plug)
1 2 3 4 5 6
40-PIN
(female plug)

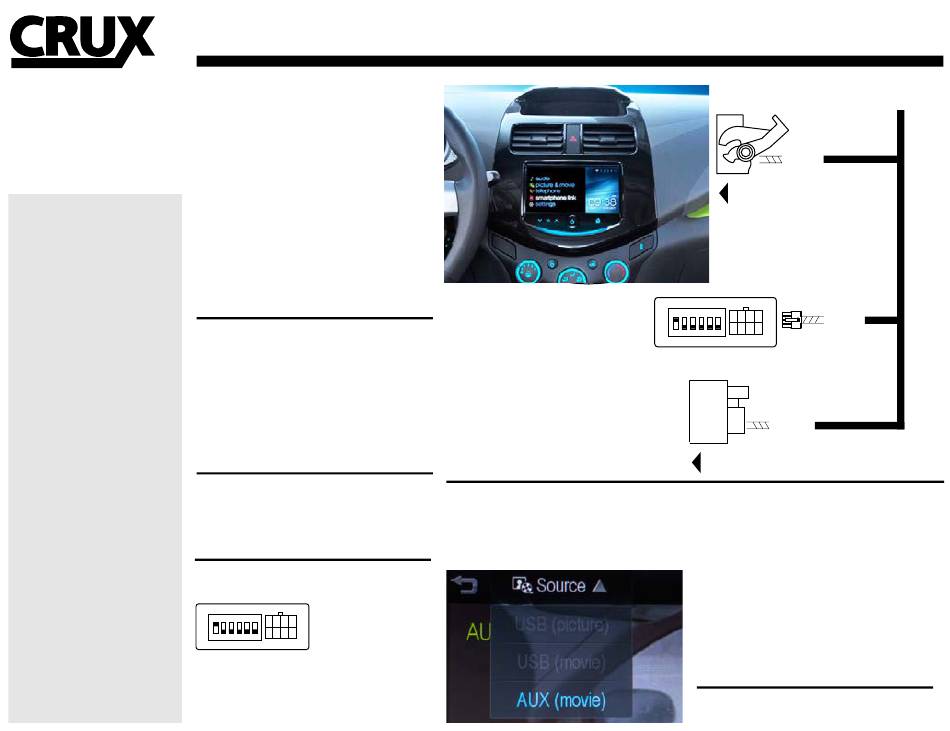

INSTALLATION OVERVIEW
SELECTING THE A/V INPUT
From the factory radio, once you plug in the A/V Input Adaptor,
You will notice the radio activate the AUX (Movie) source.
With your composite device connected, begin watching your
media to the factory display. The included VCIP5 allows you to
mirror your image form your iPhone 5 to your factory screen.
40-PIN
(male plug)
TO FACTORY
RADIO
8-PIN
ON
(male plug)
1 2 3 4 5 6
40-PIN
(female plug)
TO FACTORY
HARNESS
TROUBLE SHOOTING
1. No video display while driving.
- Make sure the dip switches are in the proper location.
Rev. 030614
