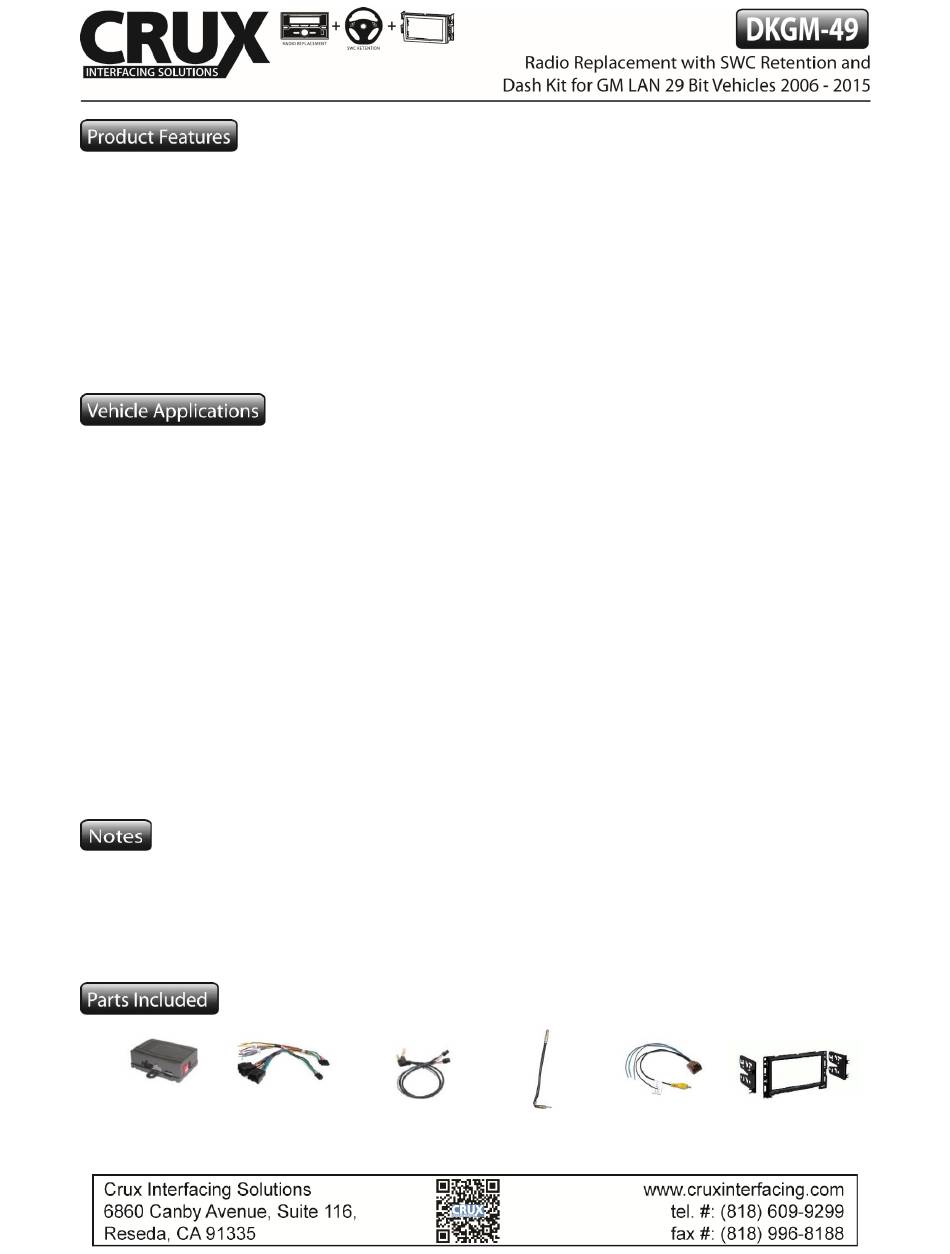

- Retains factory features in select GM LAN 29 Bit vehicles while functioning with an aftermarket radio.
- Pre-programmed to retain factory Steering Wheel Controls.
- iPhone Voice Recognition (VR) feature from SWC on Kenwood, Pioneer, Alpine and JVC radios.
- Supports Pick Up/End Call, Pick Up and Toggle between 1
- Supports Bose, non-Bose and Y-91 audio systems.
- Provides Factory Rear Seat Entertainment Activation. Requires Cable #CRUX2333A
(sold separately).
- Retains factory front and back park assist system.
- Retains chime functions.
- EIA color coded wiring for easy installation.
BUICK
2008-2015
Enclave
2006-2011
Lucerne
CADILLAC
2006-2011
DTS
2007-2014
Escalade
2007-2009
SRX
CHEVROLET
2007-2013
Avalanche*
2007-2008
Equinox
2008-2013
Express Van**
2006-2013
Impala / Impala SS
2006-2007
Monte Carlo
2007-2013
Silverado 1500-3500
Pickup*
2007-2014
Suburban*
2007-2014
Tahoe*
2009-2015
Traverse
1. *NOT compatible with 2012-Up SUVs/Trucks that are equipped with factory-installed Navigation
radios.
2. **NOT compatible with Express and Savana vans that are powered by a diesel engine.
3. Supports Rear Entertainment System with special order harness #CJA2333A (sold separately).
4. DOES NOT support ONSTAR.
GM-49 Module
GM-49 Harness
st
and 2
GMC
2007-2015
2008-2013
2007-2013
2007-2014
HUMMER
2008-2009
PONTIAC
2007-2009
SATURN
2007-2010
2008-2009
SUZUKI
2007-2008
SWC Cables
Antenna Adaptor
1 / 6
nd
Incoming call, AVRCP Track, Seek.
Acadia
Savana**
Sierra 1500-3500
Pickup*
Yukon*
H2
Torrent
Outlook
Vue
XL7
CRUX2543
Dash Kit
Rev.032917
Advertisement
Related Manuals for Crux DKGM-49
Summary of Contents for Crux DKGM-49
- Page 1 - Retains factory features in select GM LAN 29 Bit vehicles while functioning with an aftermarket radio. - Pre-programmed to retain factory Steering Wheel Controls. - iPhone Voice Recognition (VR) feature from SWC on Kenwood, Pioneer, Alpine and JVC radios. - Supports Pick Up/End Call, Pick Up and Toggle between 1 and 2 Incoming call, AVRCP Track, Seek.
- Page 2 With the key in the off position, set the DIP switches to the corresponding radio listed below. 3.5MM SWC CABLE The DKGM-49 Module allows for both types of connections: OPTION A is used for ALPINE, CLARION, JVC, and KENWOOD units (Blue/Yellow wire is attached) OPTION B is used for BOSS, DUAL, FAHRENHEIT, JENSEN, POWER ACOUSTIK, PIONEER, SONY and SOUND STREAM units.
- Page 3 Connection The DKGM-49 module has a potentiometer to adjust the chime volume. It is set at half way by default. To adjust the volume, simply use a suitable screw driver and turn the potentiometer clockwise to increase the volume and counter-clockwise to decrease the volume.
-
Page 4: Installation

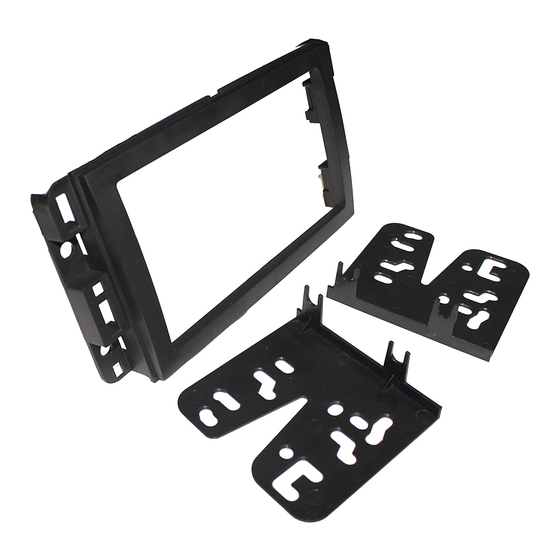

A double DIN radio replacement dash kit is included in the kit to make the installation quick and easy. You have the option of installing a Double DIN or two Single DIN radios. The DKGM-49 kit includes: (1) Main trim ring... - Page 5 STEERING WHEEL CONTROL BUTTON FUNCTIONS SWC Button SHORT PRESS LONG PRESS PIONEER VOL + Step Increment Continuous VOL + VOL - Step Decrement Continuous VOL - Arrow Up ▲ Preset Up Seek Up Arrow Down ▼ Preset Down End Call SRCE Source Power On/Off...
- Page 6 SWC Button SHORT PRESS LONG PRESS KENWOOD VOL + Step Increment Continuous VOL + VOL - Step Decrement Continuous VOL - Arrow Up ▲ Seek Up None Arrow Down ▼ Seek Down End Call / Deactivate VR SRCE Source None ►I Preset ATT On/Off...
