Crux VIMBM-86B Quick Start Manual

Video in-motion integration for select bmw vehicles 2012-up
Hide thumbs
1
2
3
4
5
6
7

Advertisement

Quick Links

Download this manual
INTERFACING SOLUTIONS
BMW
2012-2015 1 Series
2012-2015 3 Series
2012-2014 5 Series
2012-2014 X3
2012-2014 X5
PARTS INCLUDED

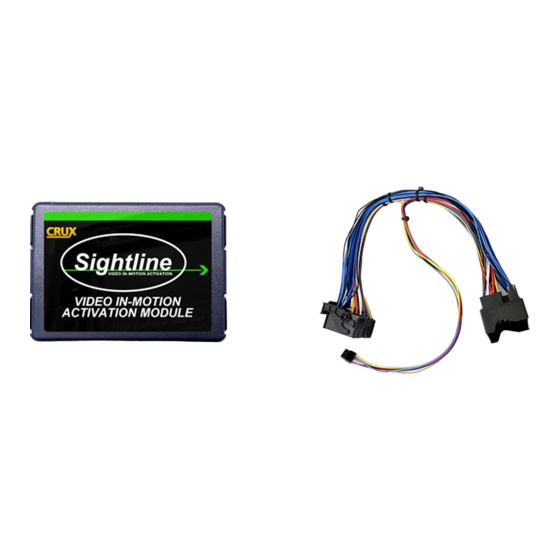

(1) BM-86B Interface Module
(1) BM-86B 40-Pin Harness
(1) Instruction Sheet
TECH SERVICES
All our products are manufactured under strict quality control. Each device is being tested before shipment. If nevertheless do occur problems or if
you have technical questions, contact us directly:
Crux Interfacing Solutions Tech Support
1 (855) 822-1348 (Mon - Fri - 9:00 AM - 5:00 PM) Pacific Time
Rev. 102814
VIDEO IN-MOTION INTEGRATION
FOR SELECT BMW
VEHICLES 2012-UP
SAFETY PRECAUTIONS
1. Please read through the entire instruction manual before starting any of the installation procedures.
2. We recommend disconnecting the negative side of the battery until ready to code the vehicle.
3. Do not install any of the main modules near any major components or near the HVAC system,
as placing items near the HVAC may cause damage or overheating to the vehicle or interface.
4. We recommend not disconnecting any of the air bag connections behind the dash panels.
5. This product is under Crux's 1 year manufacturer's warranty. Warranty may be voided in the case where
the device shows proof of being opened or improper extreme force.
1
VIMBM-86B
APPLICATION NOTES:
WORKS FOR:
NBT 10.2" Radio Displays
Contact Tech Support for more
information.
www.cruxinterfacing.com
