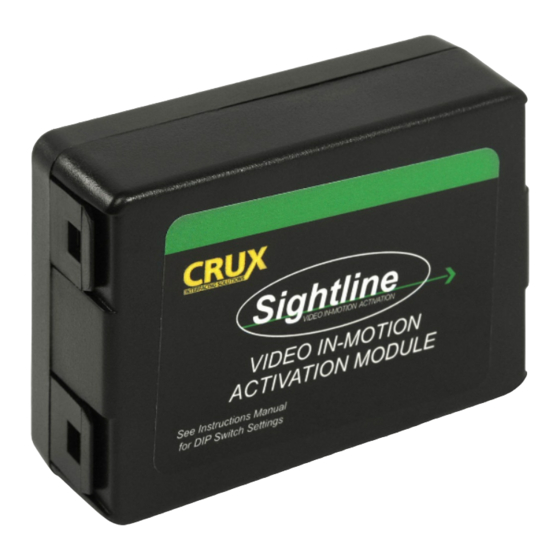

Crux Sightline VIMFD-95 Manual

INTERFACING SOLUTIONS
VIMFD-95
FORD:
2011 - 2014 Ford Edge
2011 - 2014 Ford Explorer
2012 - 2014 Ford Focus
2013 - 2014 Ford Focus ST
2013 - 2014 Ford Taurus
2013 - 2014 Ford Escape
2013 - 2014 Ford F150
2013 - 2014 F150 Raptor
2013 - 2014 F250, 350, 450, 550
2013 - 2014 Ford Fusion Hybrid
2013 - 2013 Ford Fusion Energy
2013 - 2014 Ford Taurus
2013 - 2014 C-Max Hybrid
2013 - 2014 C-Max Energy
LINCOLN
2011 - 2012 MKX
2013 - 2014 MKS
2012 - 2014 MKT
2013 - 2014 MKZ
WORKS FOR ALL:
MyFord Touch Radios
NOTE: The radio system will go through
a reboot process that may take up to 1
minute. It will initialize and re-load all
previous settings. Once complete it will
resume the original radio display.
VIDEO IN-MOTION ACTIVATION FOR SELECT FORD MyFord Touch RADIOS 2011-UP
We recommend reading this installation guide first before starting any
work. Following these instructions from "Start" to" Finish" will ensure
a smooth and hassle free installation. We offer telephone support M-F
9:00 AM – 5:00PM PDT at 1 (855) 822-1348. We are here to help.
PARTS INCLUDED:
(1) FD-95 C-500 Interface
(1) FD-95 C-125 Interfaces
(1) FD-95 T-Harness
(1) Instruction
PRECAUTIONS:
- Remove the negative side of the battery to avoid any short circuits
durring the installation.
- Do not install the interface near any major components or near the
HVAC system. This may cause damage or overheating to the vehicle.
- Do not disconnect the airbag connection behind the radio panel.
:
PRELIMINARY
Please read the entire manual before installing this interface.
This interface does not activate DVD reader.
SAFETY WARNING:
THIS INTERFACE IS DESIGNED TO ACTIVATE
VIDEO IN-MOTION TO ALLOW THE PASSENGER
ACCESS TO THE ADDRESS INPUT WHILE THE
VEHICLE IS IN-MOTION. THIS INTERFACE MAY
CAUSE AN ERROR WHEN SERVICED AT THE OEM
DEALER. BE AWARE THAT MOST DEALERS
WILL ATTEMPT TO VOID THE MANUFACTURERS
WARRANTY WHEN INSTALLING ANY AFTERMAR-
KET EQUIPMENT. IMPROPER USE OF THIS INTER-
FACE BY THE DRIVER MAY RESULT IN CITATION.
DRIVER MUST KEEP FULL ATTENTION ON THE
ROAD AND RESPONSIBILITY ON THE SAFETY OF
THEIR PASSENGERS.
INSTALLING THE INTERFACE:
1. Remove the factory display to gain access to the factory connectors.
2. Remove the 54-Pin connector from behind the display.
3. Make the T-Harness connections behind the factory display.
(if the connectors do not match please contact tech support)
4. Connect both Interfaces to an 8-Pin connector. No orientation.
4. Set the dip switches as needed on both interfaces. (See below)
5. Test the Navigation address input while the car is in-motion to verify
the VIM is active.
As an option we have provided a 12v output wire from our inter-
face, as the vehicle does not provide 12v Acc 250ma.
Do not use if not needed.
SETTING THE DIP SWITCHES
Dip 1: Activates the Video In-Motion feature. The dip switch
is the permanent solution for keeping the VIM unlocked.
The SWC feature will be deactivated with this ON.
Dip 5 & 6: These dip switches may vary. See attached slip sheet.

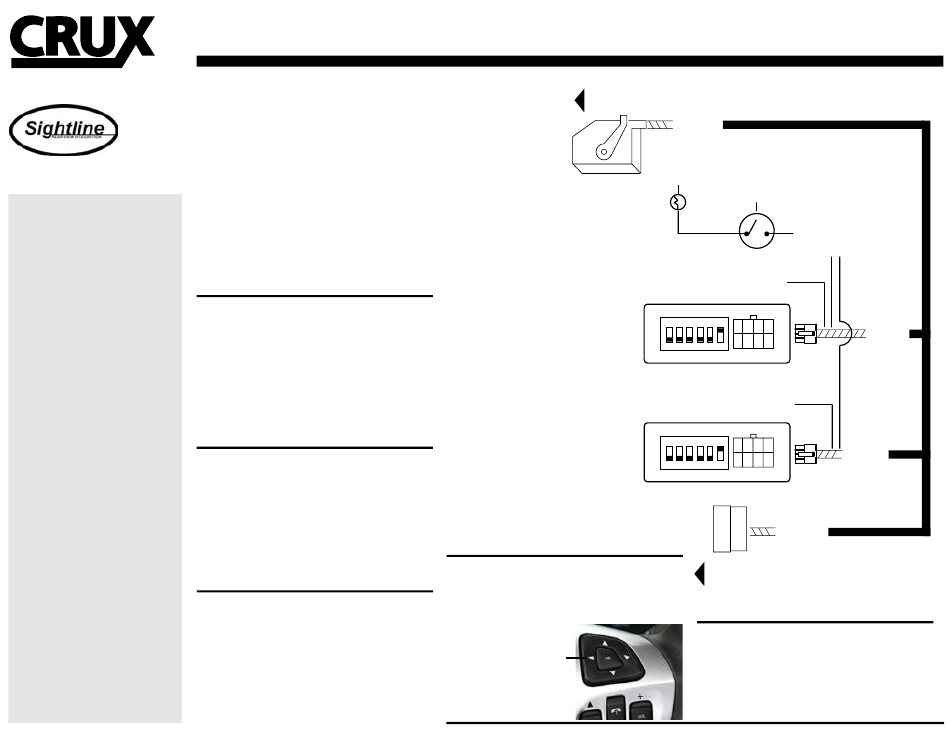

INSTALLATION OVERVIEW
TO FACTORY
RADIO
- - - - - - - - - - - - - - - - - -
- - - - - - - - - - - - - - - - - -
- - - - - - - - - - - - - - - - - -
FOR DIP SWITCH SETTINGS
SEE ATTACHED
SLIP SHEET
INTERFACE
INTERFACE
ACTIVATE AND DEACTIVATE OPTION
Using the RIGHT HAND SIDE SWC buttons you can activate and deac-
tivate the video in-motion function. (ONLY WITH DIP SWITCH 1 OFF)
Simply press and hold the LEFT arrow on the
side mirror control.
ENABLE OR
DISABLE
(Video In-Motion)
HOLD FOR
3 SECONDS
AND RELEASE
CONNECT BEHIND
THE DISPLAY
(Not The Radio)
54-PIN
(female plug)
12V
OPTIONAL/
TOGGLE SWITCH
NOT INCLUDED
FUSE
(NOT INCLUDED)
GREEN/ 12V POWER SWITCH
(SAME FUNCTION AS DIP 1)
NON-PERMANENT
WHITE/ OPTIONAL
C-500
12V OUTPUT
ON
1 2 3 4 5 6
C-125
WHITE/ OPTIONAL
12V OUTPUT
ON
1 2 3 4 5 6
54-PIN
(male plug)
TO FACTORY
HARNESS
TROUBLE SHOOTING
1. No video display while in-motion.
- Make sure the dip switches are in the correct position.
For more support contact tech support.
Rev. 111113
8-PIN
(male plug)
8-PIN
(male plug)
