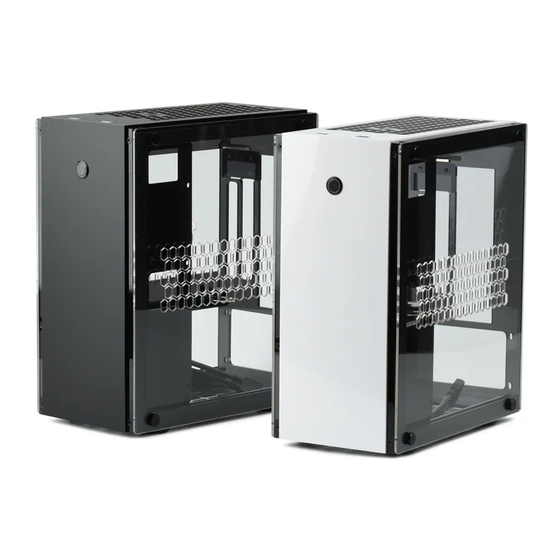

- Page 1 All manuals and user guides at all-guides.com Version 3.0~3.2 A40 V3 INSTALLATION GUIDE 2005A...
- Page 2 All manuals and user guides at all-guides.com SCREWS LIST / 螺絲盒列表 25mm Standoff x2 40mm Standoff x4 6#32x10mm M3 Nut A1 M4 Thumb Screws B1-Screws for Fan x8 B2-Screws for Radiator x4 A2 M3x8mm M4x14mm M3x5mm M4x8mm M3x8mm M3x5mm...
- Page 3 All manuals and user guides at all-guides.com Aluminum Frame Screw Installation 螺絲 鋁框架安裝說明 Acrylic Panel 壓克力板 螺母 Please read the “Aluminum Frame installation”before assembling this case 安裝前請務必先理解鋁框架如何安裝...
- Page 4 All manuals and user guides at all-guides.com STEP 01 250mm Right Aluminum Frame Installation 安裝右側鋁框 260mm 250mm...
- Page 5 All manuals and user guides at all-guides.com STEP 02 Install the HDD Bracket on the Right Aluminum Frame 安裝硬碟支架到右側鋁框...
- Page 6 All manuals and user guides at all-guides.com STEP 03 Rear Panel Installation 安裝右側鋁框到後面板...
- Page 7 All manuals and user guides at all-guides.com STEP 04 Bottom Panel Installation 安裝底蓋...
- Page 8 All manuals and user guides at all-guides.com STEP 05 Power Switch and Front Panel Installation 安裝電源開關及前面板 Power Switch...
- Page 9 All manuals and user guides at all-guides.com Install the black spacer first before installing the motherboard standoff STEP 06 (40mm) Install the Standoffs on the Left Upper and Lower Side Brackets 安裝銅柱到左側上及下支架 black spacer 40mm 4X 28mm 2X 28mm 40mm...
- Page 10 All manuals and user guides at all-guides.com STEP 07 Install Left Upper and Lower Side Brackets on the Aluminum Frame 安裝左側上及下支架到鋁框...
- Page 11 All manuals and user guides at all-guides.com STEP 08 Left Upper and Lower Side Brackets Installation 安裝左側上及下支架 (含鋁框)到機身...
- Page 12 All manuals and user guides at all-guides.com STEP 09 PCIe Riser Cable Installation (Optional) 安裝顯示卡延長線 (選購) PCI-e Riser Cable...
- Page 13 All manuals and user guides at all-guides.com STEP 10 Install and Secure the Graphic Card 安裝及固定顯示卡...
- Page 14 All manuals and user guides at all-guides.com STEP 11 Motherboard Installation 安裝主機板 Please install the RAM and CPU Cooler on the motherboard first...
- Page 15 All manuals and user guides at all-guides.com STEP 12 Power Supply Installation 安裝電源供應器...
- Page 16 All manuals and user guides at all-guides.com STEP 13 Case Fan Installation 安裝機殼風扇到上面板...
- Page 17 All manuals and user guides at all-guides.com STEP 14 USB 3.0 Cable Installation 安裝USB 3.0...
- Page 18 All manuals and user guides at all-guides.com STEP 15 Top Panel Installation 安裝上面板到機身...
- Page 19 All manuals and user guides at all-guides.com STEP 16 2.5” SSD/HDD Installation 安裝 2.5” SSD/HDD 4-8X...
- Page 20 All manuals and user guides at all-guides.com STEP 17 Foot Pad Installation 安裝腳墊...
- Page 21 All manuals and user guides at all-guides.com Place the case in horizontal, then install the side panel STEP 18 請將機殼平躺後再安裝側板 Side Panels Installation 安裝側板...
