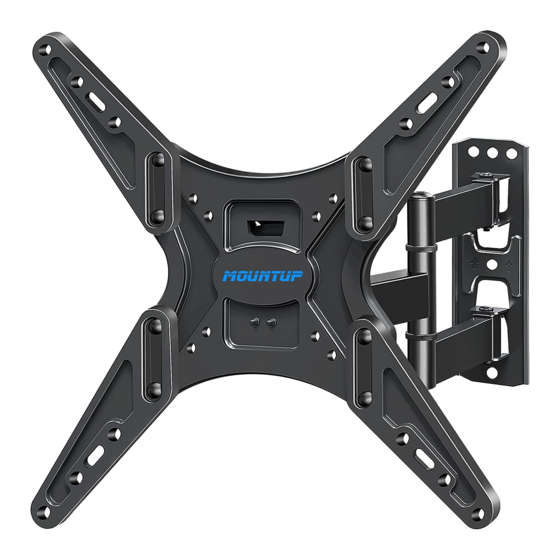

Mountup MU0014 Installation Instruction

MU0014 INSTALLATION INSTRUCTION
Velcro Cable Ties ×5 Bubble Level ×1
26"~55" Max:
88LBS
(40KG)
If you have any questions, please contact us.

Step 1-1 Select TV screw diameter

Thread screws by hand into the threaded holes on the back of your TV to select which screw
diameter fits your TV.
M4 M6 M8

Step 1-2 Select TV screw length

When attaching brackets to the flat screen, be careful not to over tighten screws and
be sure that screws do not bottom out in the mounting holes.
Too Long
Too Short

Step 2 Mesure your TV pattern

Measure and note the width and the height
of the square or rectangle formed from the
VESA holes pattern .
100mm ≈ 4in.
130mm≈ 5 1/8in.
200mm ≈ 8in.
300mm ≈ 11 3/4in
340mm ≈ 13 3/4in.
400mm≈ 16in.
Please read this instruction carefully before installation.
If you do not understand these instructions or have doubts about the safety of the installation, assembly
or use of this product, please contact us.
● This product is designed for use in wood stud and solid concrete wall.
- DO NOT install into drywall alone.
● The wall must be capable of supporting five times the weight of the TV and mount combined.
● Do not apply this product to any purpose not indicated by MOUNTUP.
● Incorrect installation may result in product damage or body injury. MOUNTUP shall bear no responsibility
for any damage or injury resulted from incorrect installation, incorrect assembly or misuse.
WARNING:
Before starting assembly, verify all parts are included and undamaged. For parts shortage or damage,
please contact us.

Must Check Before Getting Started

MAX:400mm/16"
MAX:
400mm/16"

Installation Tools (Not Included)

Wood Stud Installation
Max:400x400mm/16x16"
Min:100x100mm /4x4"
(5.5mm)
(V4)
Stud Awl Wood
Finder Drill Bit

Step 3-1 Select monitor plate configuration

Select the configuration A , B , C, D, or E to use based on the measurement from STEP
VESA Pattern
(WxH)
100mm x 100mm
130mm x 130mm
200mm x 100mm
200mm x 200mm
200mm x 300mm
200mm x 400mm
200 mm
Correct
Correct
For VESA:
200x300mm,
200x400mm
W
H
2M 2M
3
4

Safety Caution

This product contains small items that could be a choking hazard if swallowed.
<16mm(5/8") Min. Wood Stud Size:
nominal 4"(102mm)
actual 3 1/2"(89mm)
Min. Wood Stud Size:
nominal 2"(51mm)
Max:
actual 1 1/2"(38mm)
88LBS
(40KG)
Drywall with wood studs
CAUTION: DO NOT install into drywall alone.
Concrete Installation
2M
7/32" 3/8"
(10mm)
Band Pencil Electrodrill
Masonry Hammer Tape
Drill Bit
VESA Pattern
Configuration Configuration
(WxH)
A 300mm x 200mm C
A 300mm x 300mm E
A 400mm x 200mm C
A 400mm x 300mm D
B 400mm x 400mm E
B
for VESA hole pattern:
100x100mm, 130x130mm,200x100mm, 200x200mm.
400 mm
300 mm
C
For VESA:
400x200mm, 300x200mm
B
400 mm
300 mm
400 mm
E
D
For VESA:
For VESA:
400x300mm
300x300mm, 400x400mm

Hardware Included

Wall Plate
x1
01
Nuts Bolts
Min. 8"
(203mm)
4A 4B
x8 x8
Solid concrete wall
TV Screws / Washers
Philips Screws Philips Screws
M4 x 12mm M6 x 15mm
M4 x 30mm M6 x 30mm
1/2"
x4 x4
(13mm)
x4 x4
Socket Screwdriver
M-A M-B
Wrench
1

Step 3-2 Assemble TV plate and extenders

2.
If your TV hole pattern is greater than 200x200mm, attach extenders [3A] and [3B] to TV plate
200 mm
[02] using Nut [4A] and Bolt [4B].
130 mm 02 6A 6B
100 mm
3B
A

Step 3-3 Attach the brackets

M-C
(a) For Flat Back
M-A
M-B
Use the shorter screws
No!
M-E
Not for M8 screws
(b) For Round Back / Extra Space
M-C
M-A
M-B
Use the longer screws
M-E
Not for M8 screws
No!
M-D M-F
4
TV Plate Extenders
3A 3B
x2 x2
x1
02
Hardware
（Wall /Product)
Lag Bolts 5/16 x 2½ in Open-end wrench
x3
x1
A B
Philips Screws Spacers Washers Spacers
M8 x 25mm Ø6mm L5mm
M8 x 45mm M4-5-6
L10mm
x4 x8 x4 x8
x4
M-C M-D M-E M-F
3A 3B
3A
B
6A
3B
3A
6B
2
5
