Overland Storage NEO 8000 Library Remove & Replace Instructions

NEO 8000 Library
Remove & Replace
Instructions
Blower Assembly Spare
The NEO 8000 contains blower assemblies located above
the Primary and Secondary card cages. This document
describes how to remove and replace either the Primary or
Secondary blower assembly in a NEO 8000 Library from
Overland Storage.

Unpacking the Spare

Carefully unpack the spare part and verify that you have
all the parts:
• Blower assembly
• Three M3x10mm Phillips panhead screws
• These Remove & Replace Instructions

Preparing the Library for Replacement

WARNING: The library's GUI touch screen does not
completely shut off NEO 8000 system power. To
reduce the risk of electric shock or damage to
equipment, unplug both power cords.
1. Power down the library at the front panel.
2. Set the library circuit breakers to the OFF ("O")
position.
3. Remove and retain the power cords.
4. Locate the blower assembly being replaced
(Figure 1).
The process is the same for both the Primary and
Secondary blower assemblies.
Part Number 10400003-101 12/2005
Overview & Notes

Electrostatic Discharge Information

A discharge of static electricity can damage micro-circuitry
or static-sensitive devices. To help prevent electrostatic
damage, observe the following precautions:
• Transport and store items in static-safe containers.
• Keep electrostatic-sensitive parts in their containers
until they arrive at static-free stations.
• Use a wrist strap and properly-grounded tools.
• Make sure you are always properly grounded when
touching a static-sensitive component or assembly.
• Keep the work area free of non-conductive materials.
• Avoid touching pins, leads, or circuitry.
Card Cage
Assembly

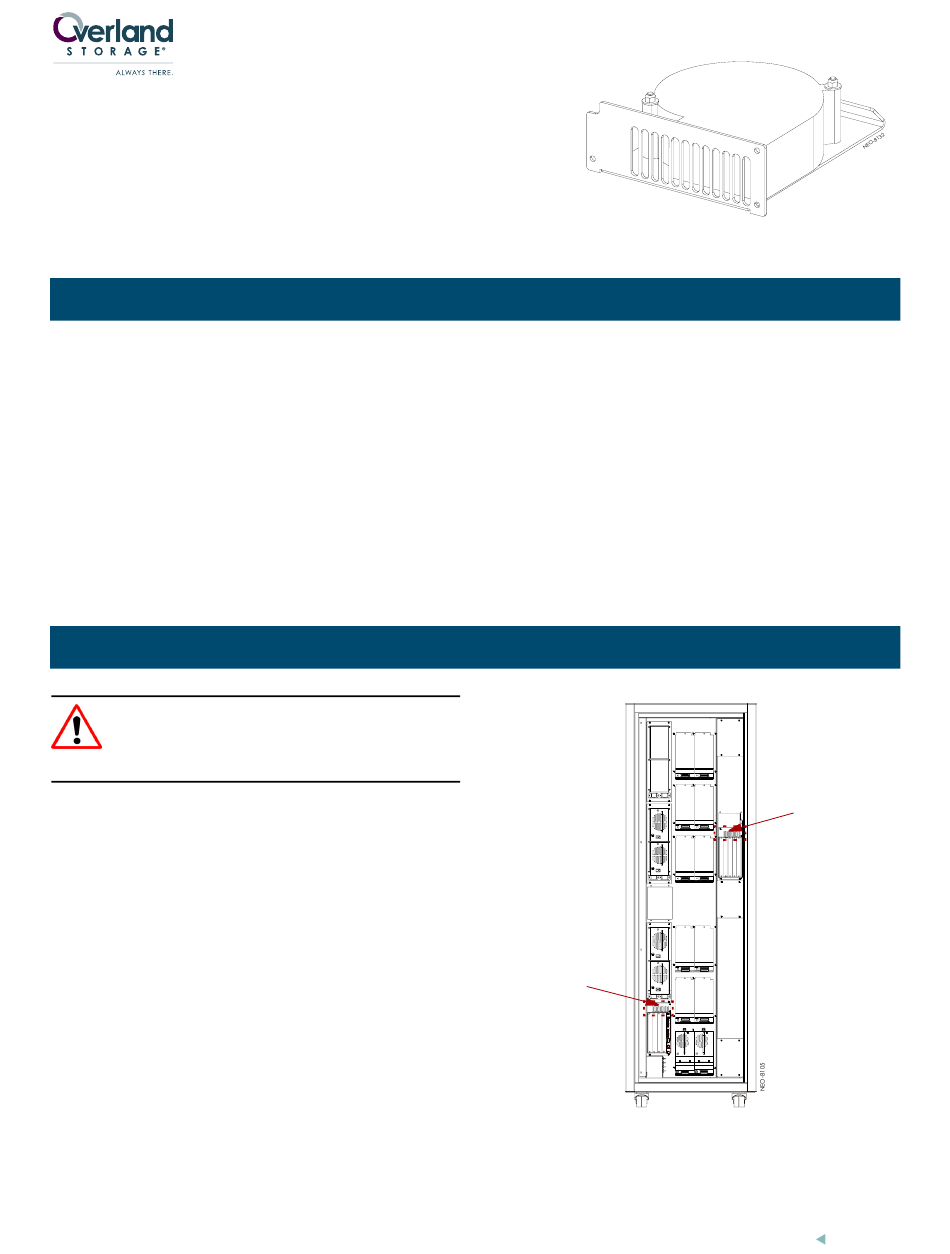

Figure 1. NEO 8000 Blower Assembly Locations
©2005 Overland Storage, Inc.
Primary
Blower
Secondary
Card Cage
Blower
Assembly
1 2
