NEO 8000 Library
Power Supply Module Spare
Remove & Replace/Add-On Instructions
Introduction
IMPORTANT:
Overland Storage requires that all NEO 8000
parts be removed and replaced by an Overland Storage
authorized service provider. Improper installation may
result in damage which voids existing warranties.
This document describes how to either remove and replace
or add a power supply module in a NEO 8000 Library from
Overland Storage.

Unpacking the Spare

Carefully unpack the spare part and verify that you have
all the parts:
• Power supply module
• These remove & replace/add-on instructions

Adding or Replacing a Power Supply

A NEO 8000 power supply is designed as a single unit to
permit quick and easy installation or replacement.
1. At the front panel, power down the library.
2. Set the library circuit breakers to OFF ("O"), and
remove and retain the power cords.
3. If replacing an existing power supply, remove the old
module
(Figure
1).
a. Completely loosen the captive fastener
thumbscrew in the lower left corner.
b. Pull the captive fastener all the way down.
c. Grab the handle and gently pull the power supply
module out.
There is some initial resistance as the module
releases from the backplane.
4. If adding a new power supply, remove the cover plate
by gently prying off it off. It is held in place by spring
latches.
Part Number 10400014-101 04/2006
TM
Overview & Notes

Electrostatic Discharge Information

A discharge of static electricity can damage micro-circuitry
or static-sensitive devices. To help prevent electrostatic
damage, observe the following precautions:
©2006 Overland Storage, Inc.
WARNING: The GUI touch screen does not
completely shut off NEO 8000 system power. To
reduce the risk of electric shock or damage to
equipment, disconnect the power by unplugging
the power cords.
• Transport and store items in static-safe containers.
• Keep electrostatic-sensitive parts in their containers
until they arrive at static-free stations.
• Use a wrist strap and properly-grounded tools.
• Make sure you are always properly grounded when
touching a static-sensitive component or assembly.
• Keep the work area free of non-conductive materials.
• Avoid touching pins, leads, or circuitry.

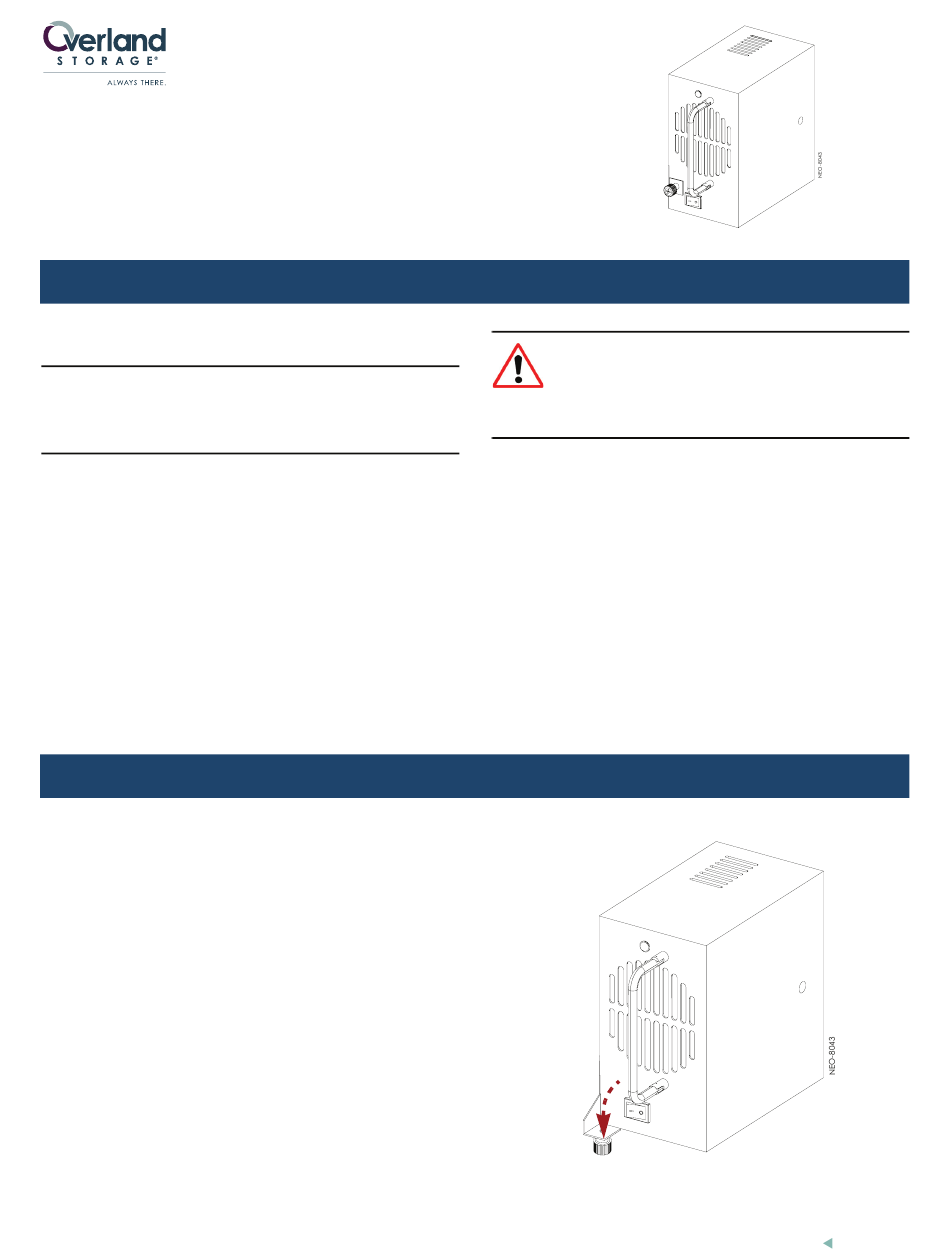

Figure 1. Power Supply Latch
1
2
