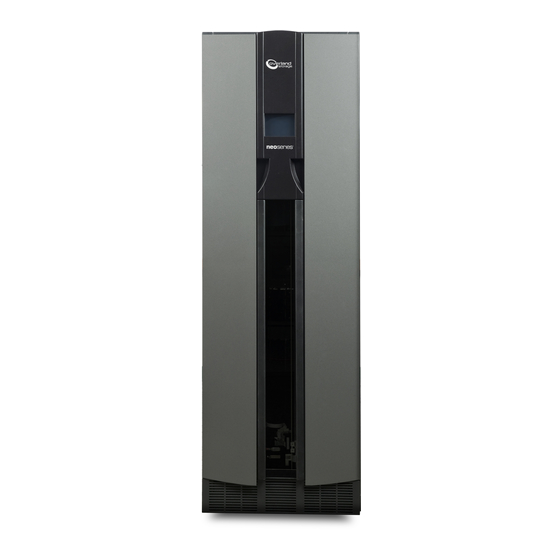

Overland Storage NEO 8000 Quick Start Manual

NEO 8000 Library
Hot Swap Assembly Spare
Remove & Replace Instructions
Introduction
IMPORTANT: Overland Storage requires that all NEO 8000
parts be removed and replaced by an Overland Storage
authorized service provider. Improper installation may
result in damage which voids existing warranties.
The NEO 8000 features LiveSwap
Hot Swap assembly, permits tape drives to be added,
removed, or replaced without powering down the library.
This document describes how to remove and replace a Hot
Swap assembly in an Overland Storage NEO 8000
Library.

Unpacking the Spare

Carefully unpack the spare part and verify that you have
all the parts:
• Hot Swap assembly in an anti-static bag
• Two M3x6mm screws
• These remove & replace instructions

Prepare the Library

1. At the front panel, power down the library.
2. Set the library circuit breakers to OFF ("O"), and
remove and retain the power cords.
3. Locate the Hot Swap assembly being replaced
(Figure 1).
4. Remove any network cables and terminators.
5. Remove the drives or cover plates from the old
assembly's drive bay.
6. Remove and retain the M3x8mm screw and drive
divider.
Part Number 10400015-101 04/2006
TM
Overview & Notes
that, because of the
TM

Replacing the Hot Swap Assembly

©2006 Overland Storage, Inc.
WARNING: The GUI touch screen does not
completely shut off NEO 8000 system power. To
reduce the risk of electric shock or damage to
equipment, disconnect the power by unplugging
the power cords.

Electrostatic Discharge Information

A discharge of static electricity can damage micro-circuitry
or static-sensitive devices. To help prevent electrostatic
damage, observe the following precautions:
• Transport and store items in static-safe containers.
• Keep electrostatic-sensitive parts in their containers
until they arrive at static-free stations.
• Use a wrist strap and properly-grounded tools.
• Make sure you are always properly grounded when
touching a static-sensitive component or assembly.
• Keep the work area free of non-conductive materials.
• Avoid touching pins, leads, or circuitry.

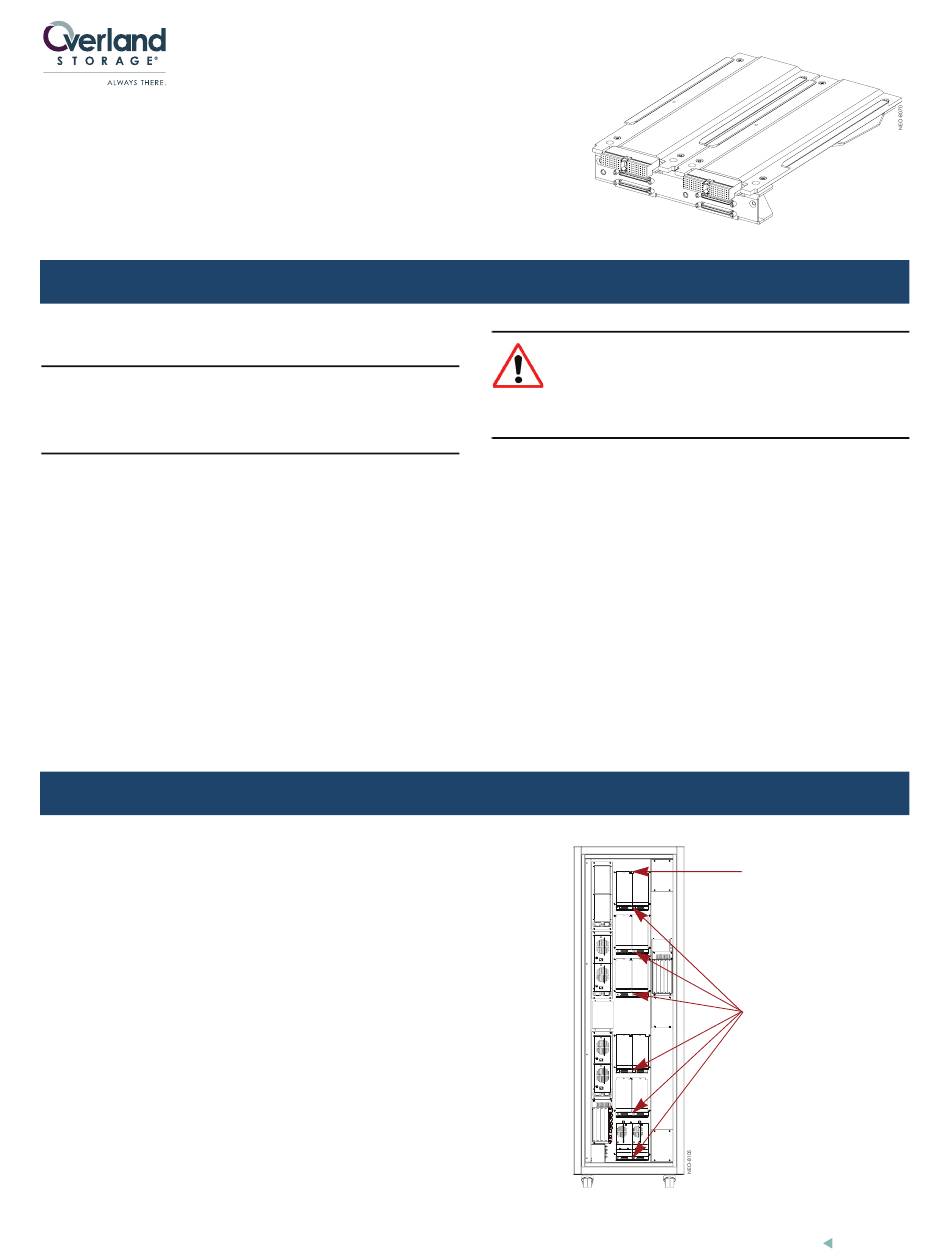

Figure 1. Locations of the Hot Swap Assemblies
Drive
Divider
Screw
Hot Swap
Assemblies
1 2
Page of
