Overland Storage NEO 8000e Assembly Instructions

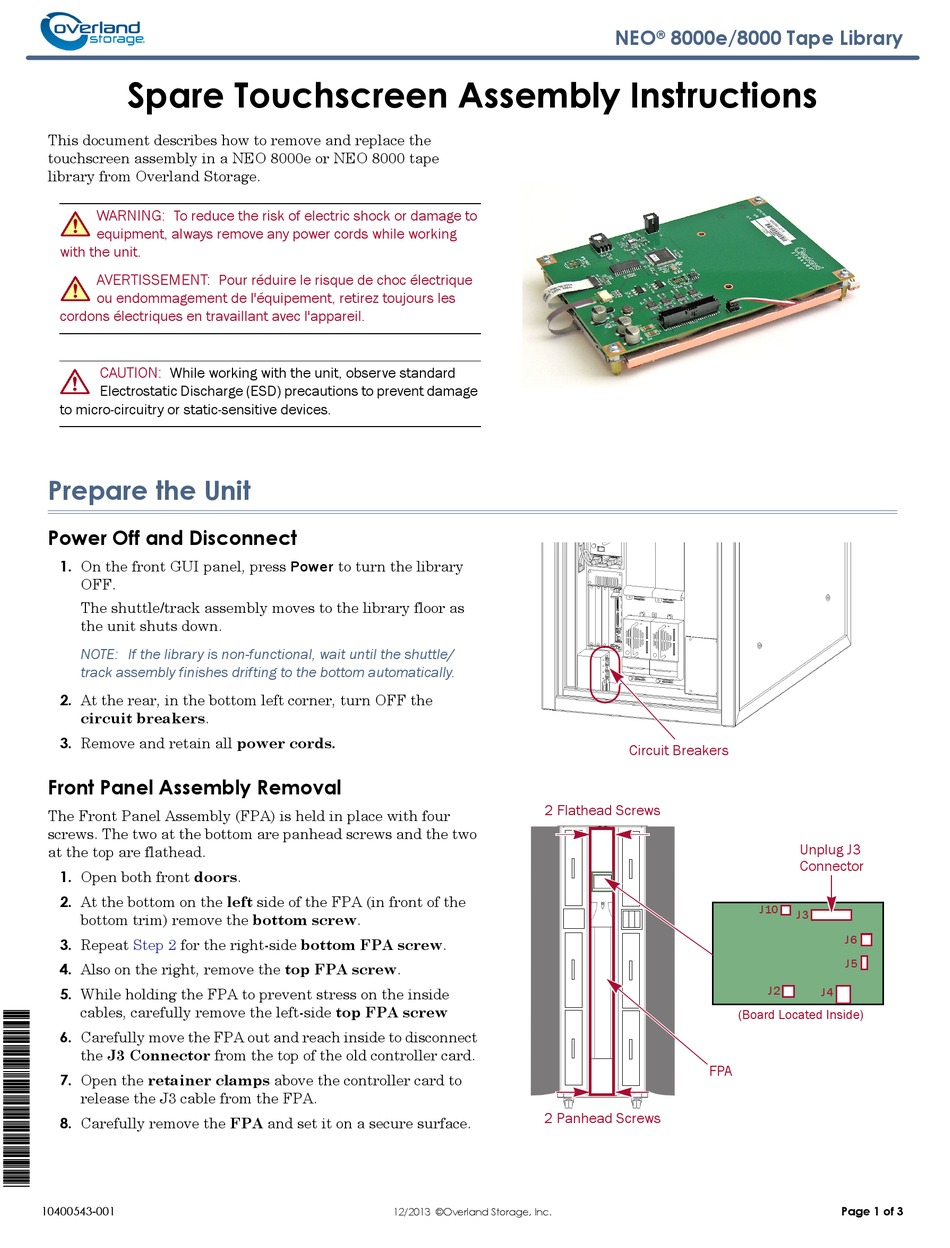

Spare Touchscreen Assembly Instructions
This document describes how to remove and replace the
touchscreen assembly in a NEO 8000e or NEO 8000 tape
library from Overland Storage.
WARNING:
To reduce the risk of electric shock or damage to
equipment, always remove any power cords while working
with the unit.
AVERTISSEMENT:
Pour réduire le risque de choc électrique
ou endommagement de l'équipement, retirez toujours les
cordons électriques en travaillant avec l'appareil.
CAUTION:
While working with the unit, observe standard
Electrostatic Discharge (ESD) precautions to prevent damage
to micro-circuitry or static-sensitive devices.

Prepare the Unit

Power Off and Disconnect

1. On the front GUI panel, press Power to turn the library
OFF.
The shuttle/track assembly moves to the library floor as
the unit shuts down.
NOTE: If the library is non-functional, wait until the shuttle/
track assembly finishes drifting to the bottom automatically.
2. At the rear, in the bottom left corner, turn OFF the
circuit breakers.
3. Remove and retain all power cords.

Front Panel Assembly Removal

The Front Panel Assembly (FPA) is held in place with four
screws. The two at the bottom are panhead screws and the two
at the top are flathead.
1. Open both front doors.
2. At the bottom on the left side of the FPA (in front of the
bottom trim) remove the bottom screw.
3. Repeat
Step 2 for the right-side bottom FPA screw.
4. Also on the right, remove the top FPA screw.
5. While holding the FPA to prevent stress on the inside
cables, carefully remove the left-side top FPA screw
6. Carefully move the FPA out and reach inside to disconnect
the J3 Connector from the top of the old controller card.
7. Open the retainer clamps above the controller card to
release the J3 cable from the FPA.
8. Carefully remove the FPA and set it on a secure surface.
10400543-001
2 Flathead Screws
2 Panhead Screws
12/2013 ©Overland Storage, Inc.
NEO 8000e/8000 Tape Library
®
Circuit Breakers
J 10
J 2
(Board Located Inside)
FPA
Unplug J3
Connector
J 3
J 6
J 5
J 4
 Page 1 of 3
