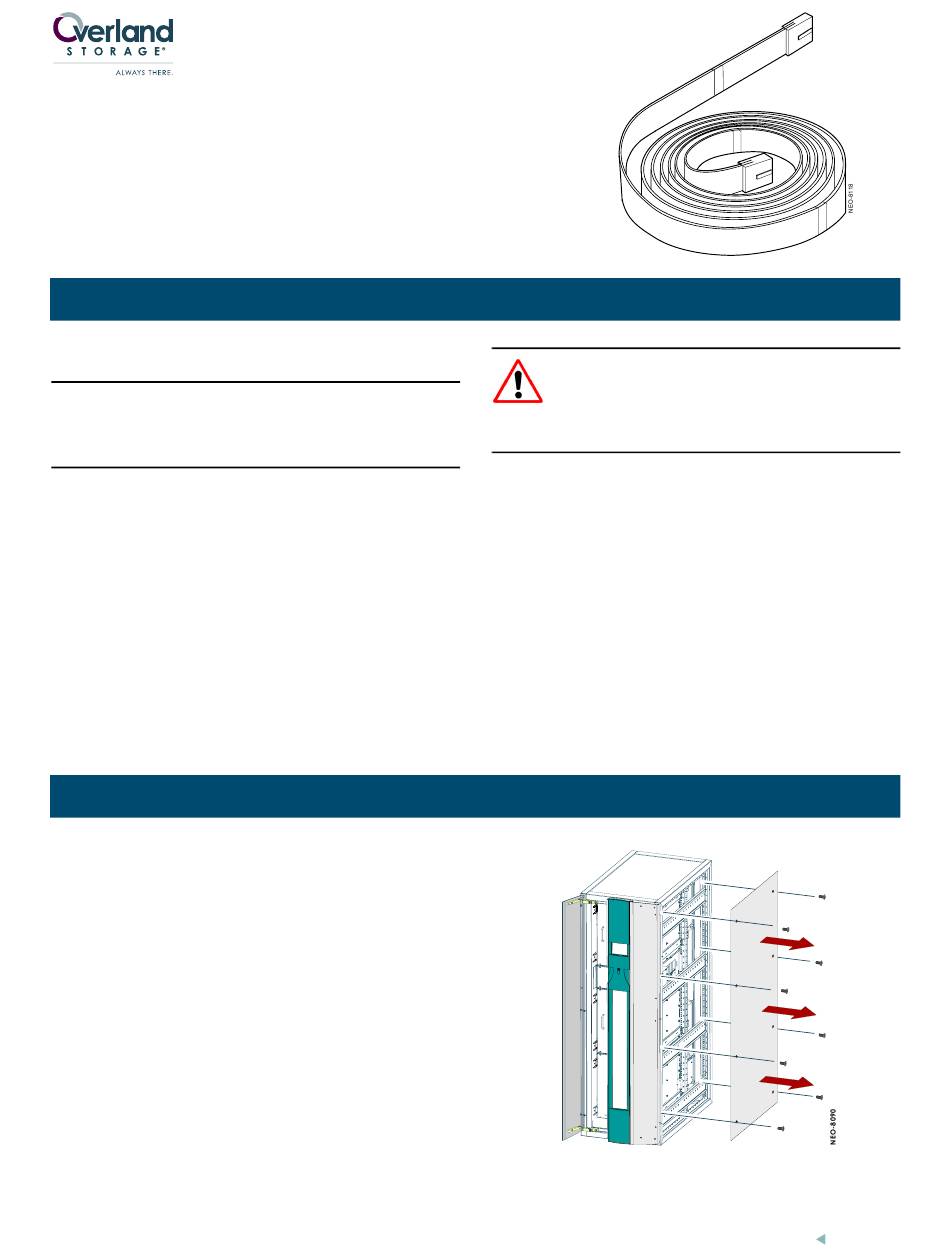

NEO 8000 Library
Remove & Replace
Instructions
HRA Signal Cable Spare
Introduction
IMPORTANT:
Overland Storage requires that all NEO 8000
parts be removed and replaced by an Overland Storage
authorized service provider. Improper installation may
result in damage which voids existing warranties.
This document describes how to remove and replace a
Signal Cable for a Horizontal Robotics Assembly (HRA)
installed in a NEO 8000 system from Overland Storage.

Unpacking the Spare

Carefully unpack the spare part and verify that you have
all the parts:
• HRA Master and Slave Signal Cables
• Remove & Replace/Add-On Instructions
Tools Needed
• Phillips screwdriver
• Hex screwdriver
Before beginning, be sure there is enough space on the
around the library system to allow access to the units.
NOTE:
With the HRA installed, the right side of the Master unit
is connected to the left side of the Slave unit. While not
recommended, if it becomes necessary to detach the units, refer
to the NEO 8000 Scalability Upgrade Installation Guide (P/N
104370-1nn).
1. Power down the library, turning off the circuit
breakers and removing the power cords.
2. At the Slave unit, remove and retain the screws (six
hex or eight phillips) that secure the right side panel
and carefully remove the panel
Part Number 104387-101 10/2005
Overview & Notes

Preparing a Library for Installation

(Figure
1).
©2005 Overland Storage, Inc.
WARNING: The GUI touch screen does not
completely shut off NEO 8000 system power. To
reduce the risk of electric shock or damage to
equipment, disconnect the power by unplugging
the power cords.

Electrostatic Discharge Information

A discharge of static electricity can damage micro-circuitry
or static-sensitive devices. To help prevent electrostatic
damage, observe the following precautions:
• Transport and store items in static-safe containers.
• Keep electrostatic-sensitive parts in their containers
until they arrive at static-free stations.
• Use a wrist strap and properly-grounded tools.
• Make sure you are always properly grounded when
touching a static-sensitive component or assembly.
• Keep the work area free of non-conductive materials.
• Avoid touching pins, leads, or circuitry.
Figure 1. Right Panel Removal
1
4
Page
of

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NEO 8000 Library and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Overland Storage NEO 8000 Library

Summary of Contents for Overland Storage NEO 8000 Library

  • Page 1 IMPORTANT: Overland Storage requires that all NEO 8000 reduce the risk of electric shock or damage to parts be removed and replaced by an Overland Storage equipment, disconnect the power by unplugging authorized service provider. Improper installation may the power cords.
  • Page 2 2. Carefully lift and move the HRA up and toward the front of the libraries, resting it on the mounting brackets in front of the alignment pins (Figure Alignment Pins Sensors Figure 5. HRA Mounting Bracket Figure 4. Repositioning the HRA Part Number 104387-101 10/2005 Page ©2005 Overland Storage, Inc.
  • Page 3 • Three M3x8mm screws on the card cage assembly 1. Remove and retain the screws holding the Primary Card Cage assembly in the Slave library (Figure Part Number 104387-101 10/2005 Page ©2005 Overland Storage, Inc.
  • Page 4 858-571-5555x5 (International). All information contained in or disclosed by this document is considered proprietary by Overland Storage. By accepting this material, the recipient agrees that this material and the information contained therein are held in confidence and in trust and will not be used, reproduced in whole or in part, nor its contents revealed to others, except to meet the purpose for which it was delivered. It is understood that no right is conveyed to reproduce or have reproduced any item herein disclosed without express permission from Overland Storage.
