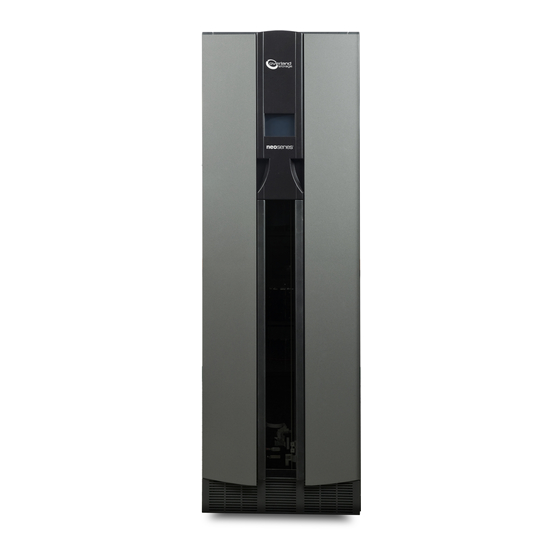

Overland Storage NEO 8000 Remove & Replace / Add-On Instructions

Table 1, "FC Configuration Options," shows the options available for configuring native FC drives:
Table 1: FC Configuration Options
Screen Option Description
Port 0 Control Used to specify the method for setting the
Arbitrated Loop Physical Address (ALPA). When
Hard Address is selected, the Port 0 ID button is
enabled to select a valid Loop ID.
Port 0 Loop ID Specifies the Loop ID that the tape drive uses as
the ALPA for Port 0. To activate, Port 0 Control
must be set to Hard Address.
World Wide Port 0 Name Default uses the factory-configured WWPN while
Custom allows you to customize the Port 0 name.
Port 1 Control Used to specify the method for setting the ALPA.
When Hard Address is selected, the Port 1 ID
button is enabled to select a valid Loop ID.
Port 1 Loop ID Specifies the Loop ID that the tape drive uses as
the ALPA for Port 1. To activate, Port 1 Control
must be set to Hard Address.
World Wide Port 1 Name Default uses the factory-configured WWPN while
Custom allows you to customize the Port 1 name.
World Wide Node Name Default uses the factory-configured WWPN while
Custom allows you to customize the device
name.
Topology Used to specify the topology used by the fibre
channel ports.
Speed Used to specify the link speed used by the fibre
channel ports.
Directory Registration Used to control whether additional registrations
are performed prior to RFC4 after a drive fabric
login.
With this bit set to Yes, the following additional
registrations are performed: Register Node Name
(RNN), Register Port Name (RPN) and Register
Class of Service (RCS). With this bit set to No, no
additional registrations are done.
Getting Help
You can get support via the Internet at
www.overlandstorage.com,
or call Tech Support at 877-654-3429.
All information contained in or disclosed by this document is considered proprietary by Overland Storage. By accepting this material, the recipient agrees that this material and the information contained therein are
held in confidence and in trust and will not be used, reproduced in whole or in part, nor its contents revealed to others, except to meet the purpose for which it was delivered. It is understood that no right is conveyed
to reproduce or have reproduced any item herein disclosed without express permission from Overland Storage. Overland Storage provides this document as is, without warranty of any kind, either expressed or
implied, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose. Overland Storage may make improvements or changes in the product(s) or program(s) described
in this document at any time. These changes will be incorporated in new editions of this publication.
Overland Storage assumes no responsibility for the accuracy, completeness, sufficiency, or usefulness of this document, nor for any problem that might arise from the use of the information in this document.
Part Number 104339-102 03/2005
Options Default
Disable Soft Address
Soft Address
Hard Address
Number between n/a
1-125
Default Default
Custom
Disable
Soft Address Soft Address
Hard Address
Number between n/a
1-125
Default Default
Custom
Default Default
Custom
Use Loop, Allow Use Loop, Allow
Point-to-Point Point-to-Point
Use Point-to-Point,
Allow Loop
Force Loop
Force Point-to-Point
Auto 2 GB/sec
1 GB/sec
2 GB/sec
Yes No
No
©2004-5 Overland Storage, Inc.
NEO 8000
Remove & Replace/
Add-On Instructions
Fibre Channel LTO-3 Drive Assembly
Overview & Notes
Introduction
IMPORTANT: Overland Storage requires that all NEO 8000
drives be installed or replaced by an Overland Storage
authorized service provider. Improper installation may result in
damage to the part or appliance which voids existing
warranties.
The following describes how to add a new LTO-3 drive or
remove and replace an existing LTO-3 drive from an
Overland Storage NEO 8000 library. When adding a new
drive, it is necessary to also configure the cabling.
Tape drives are mounted inside individual drive
assemblies that are located at the rear of the library.
These assemblies feature LiveSwap™ technology which
permits a drive to be removed and replaced while the other
drives and the library robotics remain active.
WARNING: System power in the library does not
completely shut off using the Graphical User
Interface (GUI) touch screen. To reduce the risk of
electric shock or damage to the equipment,
disconnect power from the library by unplugging
the power cords.
Removing the Drive Assembly or Cover
Removing a Drive Cover
IMPORTANT: New drives must be installed in sequence using
the numbering located above the drive bay opening. For
example, when adding a third drive, insert it into the drive bay
labeled "3."
1. Remove the upper and lower retaining screws (see
Figure 1) that secure the blank panel cover plate to the
drive opening where you plan to install the new drive.
2. Keep the panel cover plate for future use.
Part Number 104339-102 03/2005
Unpacking the Drive
Carefully unpack the drive assembly kit and verify that
you have all the parts:
• Drive assembly
• Remove & Replace/Add-On Instructions
Electrostatic Discharge Information
A discharge of static electricity can damage static-
sensitive devices or micro-circuitry. Proper packaging and
grounding techniques are necessary precautions to
prevent damage. To prevent electrostatic damage, observe
the following precautions:
• Transport products in static-safe containers such as
conductive tubes, bags, or boxes.
• Keep electrostatic-sensitive parts in their containers
until they arrive at static-free stations.
• Cover the library with approved static-dissipating
material. Provide a wrist strap connected to the work
surface and properly grounded tools and equipment.
• Keep the work area free of non-conductive materials,
such as plastic assembly aids and foam packing.
• Make sure you are always properly grounded when
touching a static-sensitive component or assembly.
• Avoid touching pins, leads, or circuitry.
• Use conductive field service tools.
Figure 1. Removing a Drive Cover
