Overland Storage NEO 8000 Library Quick Start Manual

NEO 8000 Library
Shuttle Signal/Power Cable
Remove & Replace Instructions
IMPORTANT: Overland Storage requires that all NEO
Series parts be removed and replaced by an Overland
Storage authorized service provider. Improper installation may
result in damage which voids existing warranties.
This document describes how to remove and replace the
Shuttle Signal/Power Cable assembly in a NEO 8000
Library. This kit also contains mounting hardware
necessary to install this assembly.
CAUTION: Due to the critical importance of this part, it is
absolutely imperative that these instructions be followed
exactly.
If you have any questions or concerns, contact Overland
Technical Support:
• 1-877-654-3429 (toll-free U.S. & Canada)
• +44 (0) 118-9898050 (Europe)
• +1 (858) 571-5555 Option 5 (International)
WARNING: The GUI touch screen does not completely
shut off NEO SERIES system power. To reduce the risk
of electric shock or damage, remove both power cords.
CAUTION: Do not remove any of the gold-colored Kapton
tape from the cable or cable assembly. It properly
positions the cable during library operation.
Unpacking the Spare
NOTE: Do NOT cut the plastic holding the shuttle cable in
place; the same packaging is used to return the old cable.
Carefully unpack and verify that you have all the parts:
• Shuttle Signal/Power Cable assembly
(with Spooler top piece propositioned)
• One panhead 4-20x1/2 spooler screw
• Two flathead M4x6 bracket screws
• Two Cable ties
• Clip retainer
• Plastic-coated clamp
• These instructions
Part Number 10400233-101 04/2009
Overview & Notes
A #1 or #2 Phillips screwdriver is also needed (depending
on the NEO version). A tube of Loctite 222 (or equivalent
product) is also strongly recommended.
Electrostatic Discharge Information
A discharge of static electricity can damage micro-circuitry
or static-sensitive devices. To help prevent electrostatic
damage, observe the following precautions:
• Transport and store items in static-safe containers.
• Keep electrostatic-sensitive parts in their containers.
• Use properly-grounded tools.
• Make sure you are always properly grounded.
• Keep the work area free of non-conductive materials.
• Avoid touching pins, leads, or circuitry.
Verify Cable Assembly
Verify you have the correctly assembled part:
Signal Cable
(Dual)
SPI
Plugs
©2005-2009 Overland Storage, Inc.
CAUTION: If the cable is missing the spooler head
(Figure 1), DO NOT USE it. Contact Overland Technical
Support immediately.
Power Cable
Stabilizers

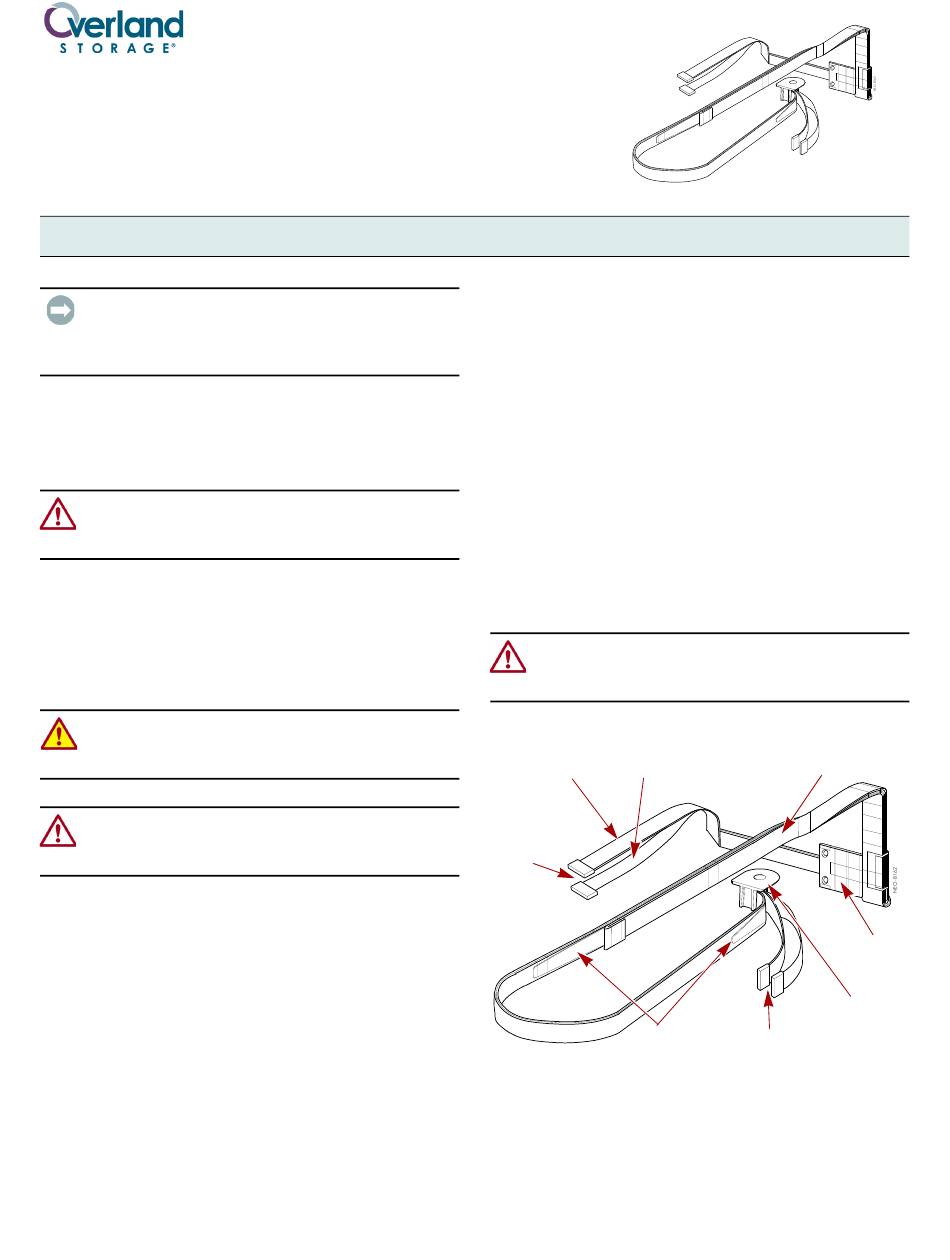

Figure 1. Shuttle Cable Assembly
Metal Flex Guide
Cable
Bracket
Spooler
Head
Shuttle Plugs
Page 1 of 7
