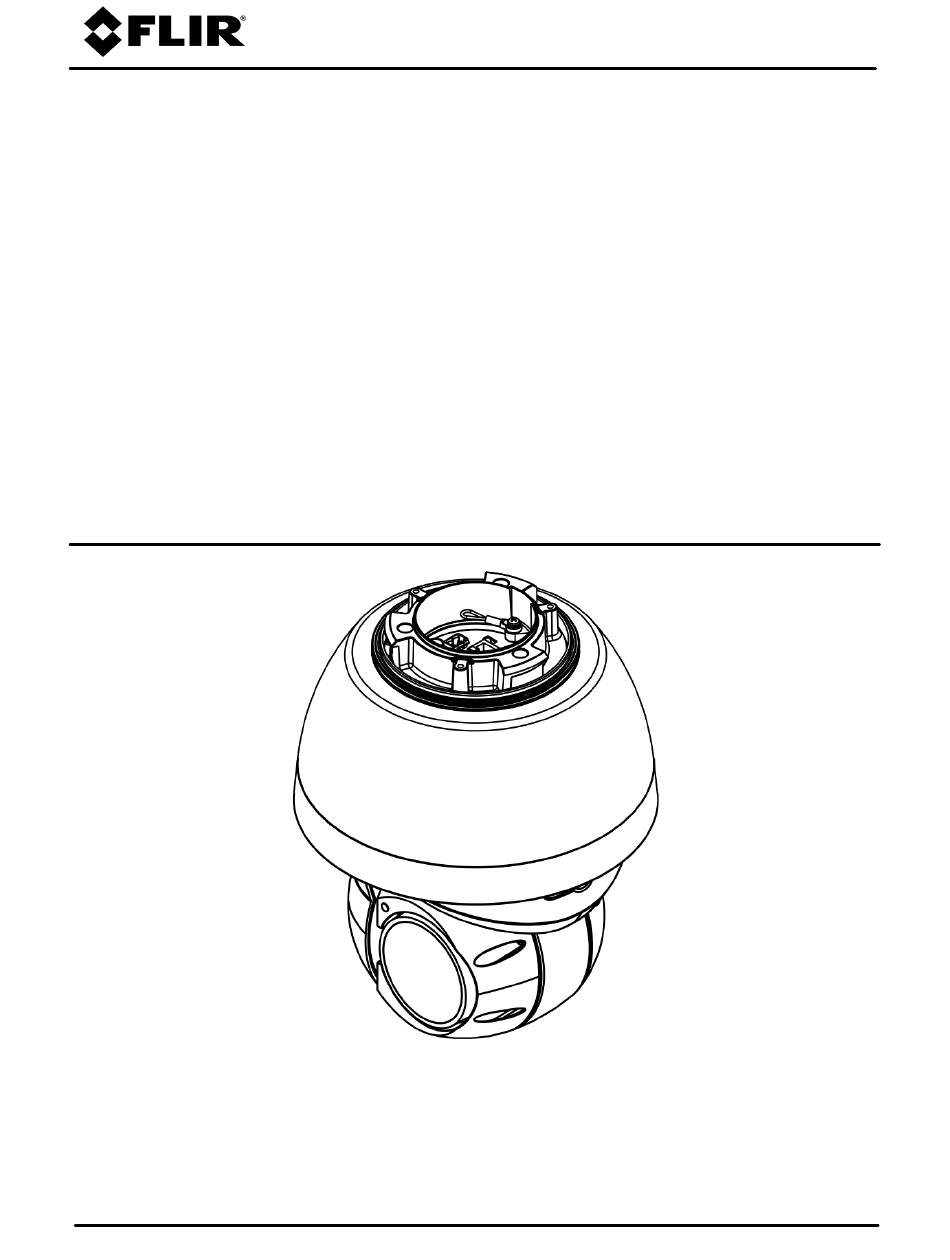

- Page 1 Quasar User Guide CP-6408-21-I 4K PTZ CP-6408 4K PTZ CP-6408-21-I Revision v0.2b Aug 2019...
- Page 2 General Cautions and Warnings Précautions et avertissements d'ordre général This section contains information that indicates a procedure or condition where there are potential Cette section contient des informations indiquant hazards. qu'une procédure ou condition présente des risques SAVE ALL SAFETY AND OPERATING INSTRUCTIONS potentiels.
- Page 3 © 2019 FLIR Systems, Inc All rights reserved worldwide. No parts of this manual, in whole or in part, may be copied, photocopied, translated, or transmitted to any electronic medium or machine readable form without the prior written permission of FLIR Systems, Inc Names and marks appearing on the products herein are either registered trademarks or trademarks of FLIR Systems, Inc and/or its subsidiaries.
-
Page 4: Table Of Contents
Table of Contents 1. Document Scope and Purpose ..................1 2. Operation ........................... 3 Accessing a Camera ....................3 Initial Camera Configuration ..................5 3. View Settings Home Page ....................7 Video Page ......................... 7 Visible Page ......................10 Input/Output (I/O) Page ....................12 PTZ Page ........................ -
Page 5: Document Scope And Purpose
Disclaimer Avis de non-responsabilité Users of FLIR products accept full responsibility Il incombe aux utilisateurs des produits FLIR de vérifier for ensuring the suitability and considering the que ces produits sont adaptés et d'étudier le rôle des role of the product detection capabilities and capacités et limites de détection du produit appliqués aux... - Page 6 Une Remarque est une information utile permettant d'éviter certains problèmes, d'effectuer une installation correcte ou de mieux comprendre les produits et l'installation. A Tip is information and best practices that are useful or provide some benefit for installation and use of FLIR products.
-
Page 7: Operation
1. Do one of the following: In the FLIR Discovery Network Assistant (DNA) tool, double-click the camera in the Discover List. The DNA tool does not require a license to use and is a free download from the product's web page at https://www.flir.com/browse/security/visible-security-cameras/... - Page 8 Operation 2. On the login screen, type the user name and the password. When logging in to the camera for the first time or for the first time after resetting the camera to its factory defaults, the initial credentials are: Username admin Password admin If you do not know the user name or password, contact...
-
Page 9: Initial Camera Configuration
4. Verify that the LEDs on the RJ45 connector illuminate green (indicating a stable network connection) and flashing yellow (to indicate network activity). 5. Do the following: a. Download and run dna.exe (see note below) from the product's web page https://www.flir.com/browse/security/visible-security-cameras/ Note: The minimum version of DNA supporting this camera is 2.3.0.8 b. Click the icon. - Page 10 Operation 6. Right-click the mouse and select the assigned IP address or click the Assign IP button to open the DNA Assign IP dialog box. Note: The camera default IP Address and the subnet mask IP Address are automatically supplied by the DHCP server.
-
Page 11: View Settings Home Page
View Settings Home Page View Settings Home Page The View Settings page displays a live image from the selected video view and the view settings menus along the left side banner. Click System Settings to configure network and date/time parameters, user accounts and password access, and to perform firmware updates (refer to System Settings Pages). - Page 12 View Settings Home Page By default, two video streams are enabled for the camera: Visible 1 (V1) and Visible 2 (V2). Both video streams are available for viewing from a client program or third-party ONVIF systems. To modify parameters that affect a particular IP video stream from the camera, click the relevant button (V1 or V2).
- Page 13 View Settings Home Page Note (10 - higher compression, lower quality. 80 - lower compression, higher quality) Setting a higher Quality value can increase the video stream's bandwidth requirements. Network Options Multicast video packets are shared by streaming clients. Additional clients do not cause bandwidth to increase as dramatically as with unicast.
-
Page 14: Visible Page
View Settings Home Page Visible Page You can adjust the following visible video settings: · Brightness · Contrast · · Saturation · Sharpness · Focus—Select Auto for continuous auto-focus: The camera automatically and continuously maintains focus regardless of view changes. To manually focus the camera, select Manual and then click Near or Far. Advanced Settings ·... - Page 15 View Settings Home Page · Wide dynamic range settings WDR improves the image quality and amount of detail in high contrast scenes. High contrast scenes consist of areas with different lighting conditions; some areas are bright and others are dark. Without WDR, either the bright areas would be overexposed (too bright) or the darker areas would be completely dark.
-
Page 16: Input/Output (I/O) Page
View Settings Home Page reduction tends to produce superior results for moving objects when applied to areas in the field of view where movement is present. However, it is less precise than 3D noise reduction. It can be set On or Off. ·... -
Page 17: Ptz Page
View Settings Home Page · For external I/O connections, set the current state for the input and output pins: Users assigned the expert or admin role can configure the external I/O connections, including the number of external input and output pins, on the I/O Devices Page in System Settings. -
Page 18: Illumination Page
View Settings Home Page · Define preset positions: a. Under Preset Position, click Set Preset. b. Select a preset index number from 1-128. Selecting an index number currently associated with a preset position overwrites the existing preset position. c. Specify a unique, descriptive name for the preset position. d. -
Page 19: Georeference Page
Show the direction the camera is facing (using the camera's field of view, which the camera also reports) · Supports pan and tilt cueing. For example, the FLIR CGI protocol provides pan and tilt commands to point the camera at a specific geographic location (latitude/longitude). -
Page 20: Configuration
Configuration Configuration This chapter describes how to configure the camera using System Settings Pages. It also includes Maintenance and Troubleshooting Tips. System Settings Pages Users assigned the expert or admin role can access the camera's System Settings pages. The pages are described in this section. -
Page 21: Date & Time Page
Configuration Caution After changing the camera's IP address, the PC you are using to access the camera's web page might no longer be on the same network as the camera and can and can no longer access the camera's web page. To access the camera web page again, change the PC's IP address to be on the same network as the camera. -
Page 22: Users Page
Configuration When Manual mode is selected, you can select to use the PC time, select and type hour, minute, second, or date values, or select a pop-up window to select a calender date. After setting the date and time, the camera will require a reboot. A confirmation prompt will appear. Users Page 4.1.3 Only users assigned the admin role can add users and change or set all passwords. -
Page 23: Audio Page
Configuration admin, including the Can access and use all of the camera's web pages, including default admin user adding//editing/deleting users, and set all passwords Add User Edit User Delete User Audio Page 4.1.4 The Audio page provides configuration settings for the camera's audio input and output. The On/Off buttons affect all audio input and output. -
Page 24: I/O Devices Page
Configuration · Gain—You can adjust the audio input gain from 0-100 percent. The default is 80 percent. · Encoding G.711 is the only available option. · Bit Rate—The camera supports an audio input bit rate of 64 kilobits per second (kbps). ·... -
Page 25: Cyber Page
Configuration The following settings for the device managing the external I/O connections are available: · Device IP address and port · Input and output base addresses You can define the number of input and output pins the device manages. For each pin, the following settings are available: ·... -
Page 26: Certificates
Configuration Changes to the security configuration settings on the Cyber page do not immediately take effect. To apply changes, click Save and then reboot the camera. 4.1.6.1 Certificates Before you can enable TLS/HTTPS or 802.1x, you need to generate or upload a valid certificate. You can: ·... - Page 27 Configuration To generate and install a self-signed certificate for TLS/HTTPS: 1. In the Certificates section, under Certification area, select TLS/HTTPS and Self-Signed. 2. Enter information such as country code, city name, and organization name. 3. Click Create Certificate. 4. Allow 15 seconds for the camera to generate the certificate, at which point a confirmation appears.
-
Page 28: 802.1X
Configuration 4.1.6.2 802.1x Enable or disable IEEE 802.1x-compliant communication. Specify the Extensible Authentication Protocol (EAP) method: · TLS: Provide an Identity and Private Key Password. · Protected Extensible Authentication Protocol (PEAP): Provide an Identity or an Anonymous Identity and a Password. -
Page 29: Services
4.1.6.4 Services Enable or disable digest authentication for the FLIR CGI control interface. The default setting is On. Changing this setting does not immediately take effect. To apply a change to this setting, click Save and then reboot the camera. -
Page 30: Maintenance And Troubleshooting Tips
Maintenance and Troubleshooting Tips If help is needed during the installation process, contact the local FLIR representative, or visit the FLIR Support Center at: https://www.flir.com/support-center/support-hq/. FLIR Systems, Inc offers a comprehensive selection of training courses to help get the best performance and value from the camera. -
Page 31: Cleaning
If a fuse was used, be sure the fuse is not blown. If the camera still does not produce an image, contact the FLIR dealer or reseller who provided the camera, or contact FLIR directly. - Page 32 Configuration Unable to View Video Stream If the video stream from the camera is not displayed, it could be that the packets are blocked by the firewall, or there could be a conflict with video codecs that are installed for other video programs. When displaying video with a VMS for the first time, the Windows Personal Firewall may ask for permission to allow the video player to communicate on the network.
- Page 33 FLIR Sy stems, Inc. 6769 Hollister Av e Goleta, CA 93117 Corporate Headquarters FLIR Sy stems, Inc. 27700 SW Parkway Av e. Wilsonv ille, OR 97070 Support: https://www.f lir.com/support-center/support-hq/ Document: CP-6408-21-I Rev ision: v 0.2b Date: Aug 2019...
