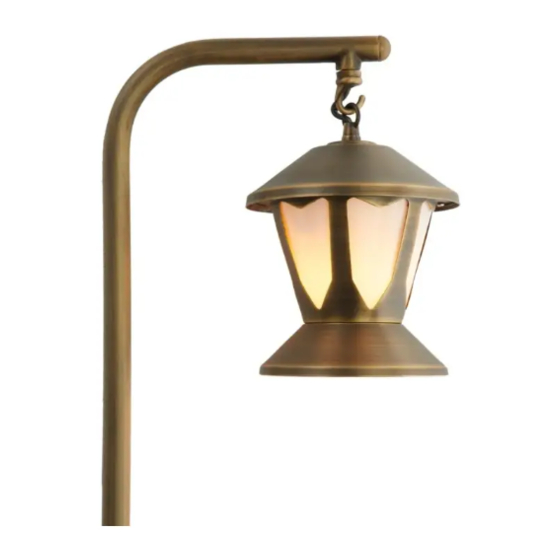

- Page 1 INSTALLATION & MAINTENANCE GUIDE Low Voltage Landscape Lighting ® BeaconPro Path & Area Light ® APL-3030-4-B-BZ Help Hotline: 1-813-978-3900 • Mon-Fri 9am-6pm (EST) w w w. a m p l i g h t i n g . c o m...
- Page 2 INSTALLATION & MAINTENANCE GUIDE BeaconPro Path & Area Light ® APL-3030-4-B-BZ Important Safety Instructions: Read Before Installation This luminaire is intended for installation in accordance with local codes and the National Electric Code (NEC). Failure to adhere to these codes and in- structions may result in serious injury, property damage and void the warran- These instructions do not intend to cover all variations in installation, opera- tion maintenance or mounting situations.
- Page 3 Package Contents A. (1) Fixture Body Parts Required A. (1) Mounting Accessory C. (1) SCB Lamp (sold separately) B. (1) Flame Lamp Product Dimensions 10.75” 8” 6” 25” customersupport@amplighting.com • 813.978.3900 –3–...
- Page 4 INSTALLATION & MAINTENANCE GUIDE BeaconPro Path & Area Light ® APL-3030-4-B-BZ Remove Hat Bottom Remove the bottom of the hat, by using a screwdriver to loosen the screws. Hat Top Screws Hat Bottom Install Flame Lamp Flame Lamp Install the flame lamp by aligning the line on the bottom of the lamp to the holes in the socket.
- Page 5 INSTALLATION & MAINTENANCE GUIDE BeaconPro Path & Area Light ® APL-3030-4-B-BZ Reinstall Hat Bottom Reinstall the hat bottom using the previously removed screws. Use a screwdriver to make sure the screws are secure. Hat Top Screw Hat Bottom Remove Lens Remove the lens on the bot- tom of the hat by loosening the screws using a screwdriver.
- Page 6 INSTALLATION & MAINTENANCE GUIDE BeaconPro Path & Area Light ® APL-3030-4-B-BZ Reinstall Lens Place the lens back onto the bottom of the hat and use the previously removed screws to secure. Tighten with a screwdriver. Lens Screw Install Stake Determine the desired location Board for mounting the stake.
- Page 7 Install Fixture to Stake Pass supply wires through the open slot of the stake Stem and thread the fixture onto the stake. Hand tighten until Supply Wires snug. Clear away area in ground and lay the supply Ground wires into wireway slot. Stake Soil Wire Connections...
- Page 8 Help Hotline: 1-813-978-3900 • Mon-Fri 9am-6pm (EST) Specifications and product details subject to change without notice. © Copyright 2021, AMP Lighting, Lutz FL USA 33549 • All rights reserved. ® customersupport@amplighting.com • 813.978.3900 w w w. a m p l i g h t i n g . c o m IS-APL-3030-4-B-BZ-ver1.pdf...
