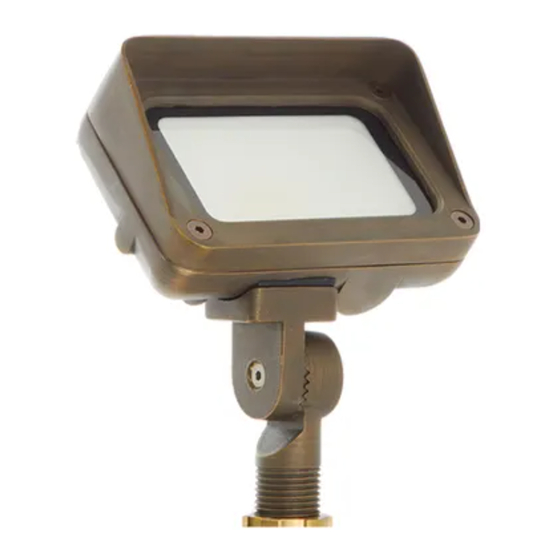

- Page 1 INSTALLATION & MAINTENANCE GUIDE Line Voltage Landscape Lighting ® 120V Brass Flood Light with Knuckle (Constant Output) ® AFL-40XX-LI-B-BZ Help Hotline: 1-813-978-3900 • Mon-Fri 9am-6pm (EST) w w w. a m p l i g h t i n g . c o m...
- Page 2 INSTALLATION & MAINTENANCE GUIDE 120V Brass Flood Light with Knuckle (Constant Output) ® AFL-40XX-LI-B-BZ Important: Please Read Before Installation 1. This LED floodlight uses the latest in solid state lighting technology for long life, low maintenance, and high efficeiency. 2. An internal power-factor-corrected switch mode supply allows this fix- ture to be used from any nominal 90V-277VAC, 60Hz supply without any variation in light output.
- Page 3 Package Contents A. (1) Fixture body Parts Required A. (1) Mounting Accessory (Sold Separately) Products Model # Input Cur- Model Input Voltage Hertz Watt rent 9W Flood Light 90-277 17W Flood Light 90-277 customersupport@amplighting.com • 813.978.3900 –3–...
- Page 4 INSTALLATION & MAINTENANCE GUIDE 120V Brass Flood Light with Knuckle (Constant Output) ® AFL-40XX-LI-B-BZ Product Dimensions 4.5” 2.29” 3.55” 2.92” 1.98” 1.1” 120VAC 9W 5.96” 2.41” 4.91” 3.43” 4.47” 1.15” 120VAC 17W Two installation methods are provided for this fixture: Surface Mount- Page 5 Stake Mount- Page 6 w w w.
- Page 5 Option 1: Surface Mount Install Surface Mount to Fixture body Glare Guard Pass the supply cable through the center hole of the surface mount. Then thread the surface mount onto the fixture body. Fixture Body Make sure the wire exit on the surface mount and the glare guard are facing the opposite direction after installation.
- Page 6 INSTALLATION & MAINTENANCE GUIDE 120V Brass Flood Light with Knuckle (Constant Output) ® AFL-40XX-LI-B-BZ Option 2: Stake Mount Install Stake Determine the desired location Board for mounting the stake. Hammer the stake into the ground until flange of stake is flush to grade. To avoid damage to the stake, place a board on top of the stake while hammering.
- Page 7 Wire Connections Allen Wrench Screw Cover “HOT” Block “GROUND” Block Supply Cable “NEUTRAL” Block from Fixture Hub Body Supply Cable from other Fixture or next hub Conduit By using the Allen wrench, loosen screws and remove the cover from the hub body. Insert the main supply cable, fixture supply cable, other fixture supply cable or next hub supply cable into the hub body from the different conduit.
- Page 8 Help Hotline: 1-813-978-3900 • Mon-Fri 9am-6pm (EST) Specifications and product details subject to change without notice. © Copyright 2021, AMP Lighting, Lutz FL USA 33549 • All rights reserved. ® customersupport@amplighting.com • 813.978.3900 w w w. a m p l i g h t i n g . c o m IS-AFL-40XX-LI-B-BZ-ver1.pdf...
