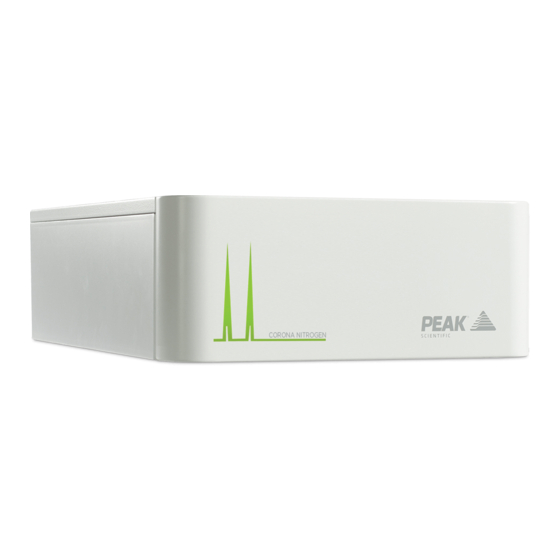

Corona 1010
User Manual
Corona 1010 User Manual Rev 5 RSID 153 PN UM-0016 EN 22/11/21

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Corona 1010 and is the answer not in the manual?

Questions and answers

Summary of Contents for Peak Scientific Corona 1010

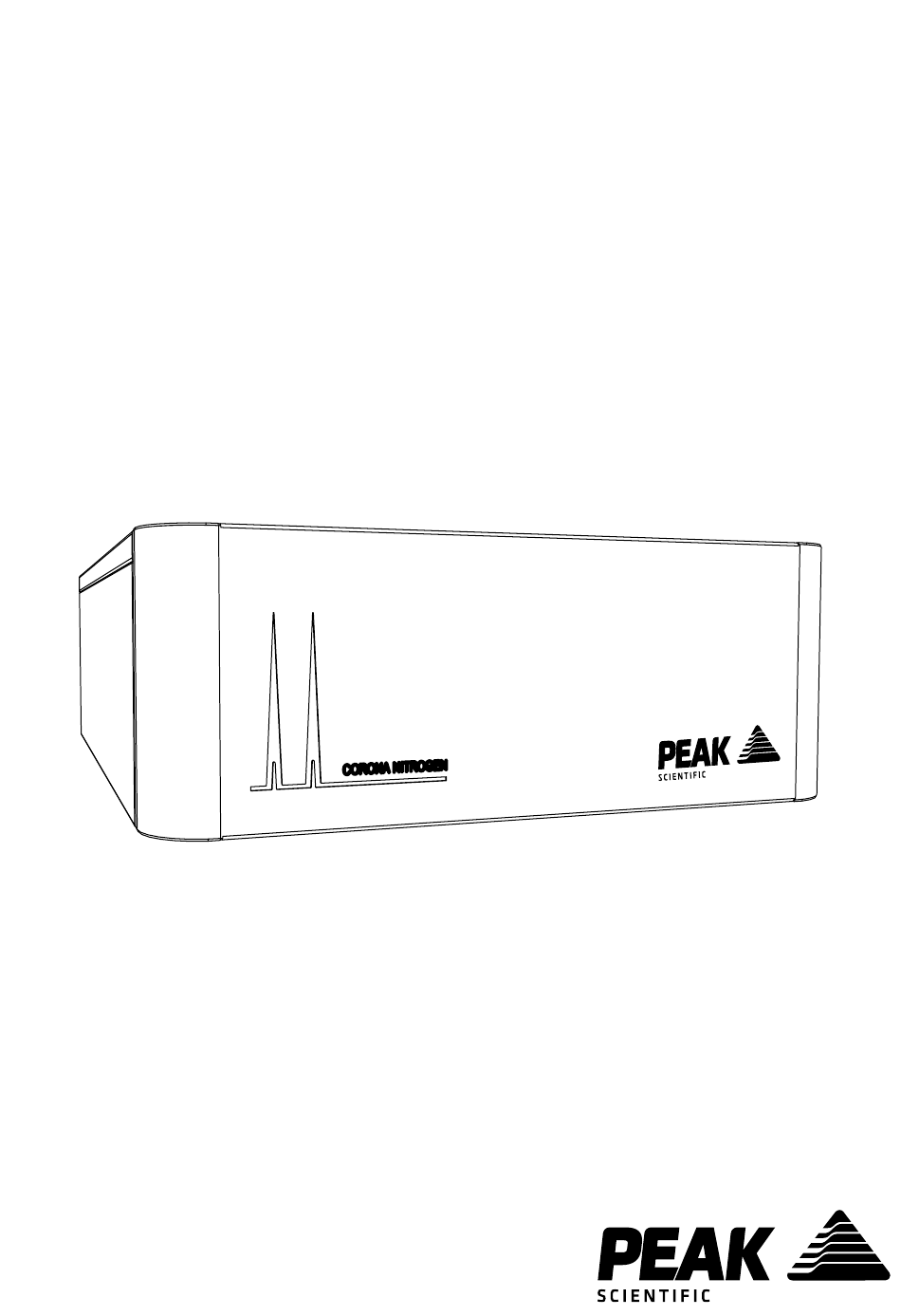

  • Page 1 Corona 1010 User Manual Corona 1010 User Manual Rev 5 RSID 153 PN UM-0016 EN 22/11/21...
  • Page 2: Table Of Contents

    Technical Specification Corona 1010 Unpacking Fittings Kit Contents Unpacking Instructions Installation Generator Environment Generator Overview Corona 1010 General Dimensions Corona 1010 Rear Connections Electrical Connection Air Purity Class 1 Particulate Class 4 Water Class 1 Oil Start-Up Sequence On Demand Gas...
  • Page 3: Change History

    Users can refer to the contents page to find the relevant information. Please review each of the following sections carefully. Thank you for selecting Peak Scientific to meet your gas generation needs, and should you require any further assistance or support please do not hesitate to contact Peak Scientific or the Peak Partner from which you purchased your generator.
  • Page 4: Introduction

    The Corona 1010 has been developed by Peak Scientific in conjunction with Thermo Fisher Scientific to supply pure Nitrogen to their Charged Aerosol Detectors (CAD). The Corona 1010 generates gas at the right flow, pressures and purities required by the Charge Aerosol Detector and has been fully tested and approved by Thermo.
  • Page 5: Warranties And Liabilities

    Warranties and Liabilities 1. The Company warrants that it has title to the Goods. 2. Subject to the provisions of this clause the Company warrants that the Goods shall comply in all material respects with any specification referred to in the Order Confirmation (as the same may be amended) and shall, subject thereto, be free from defects in material and workmanship for the lesser of a period of twelve months from the date of delivery or thirteen months from the date of dispatch...
  • Page 6: Safety Notices

    If the user employs an operating procedure, item of equipment or a method of working which is not specifically recommended by Peak Scientific, the user must ensure that the equipment will not be damaged or become hazardous to persons or property.
  • Page 7: Eu Declaration Of Conformity

    EN 61326-1: 2013 Electrical Equipment for Measurement, Control and Laboratory Use – EMC Requirements. (Class A) • Restriction on the use of certain hazardous substances in electronic equipment (RoHS) Directive 2011/65/EU as amended by EU 2015/863. Signed for and on behalf of Peak Scientific by Signed: Name: Fraser Dunn...
  • Page 8: Uk Declaration Of Conformity

    BS61326-1:2013 Electrical Equipment for Measurement , Control and Laboratory Use – EMC Requirements. • The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012 (SI 2012 / 3032) as amended. Signed for and on behalf of Peak Scientific by Signed: Name: Fraser Dunn...
  • Page 9: Weee Compliance Statement

    WEEE Compliance Statement The Waste Electrical and Electronic Equipment (WEEE) Regulations SI 2013 No 3113 and or the Waste Electrical and Electronic Equipment (WEEE) Directive 2012/19/EU apply to all electrical and electronic equipment placed on the market in the UK and EU covered by the scope of regulations which can be found in the Government Guidance Notes (PDF) produced by the Department for Business Innovation and skills for the UK and here for Europe.
  • Page 10: Technical Specification

    Technical Specification Corona 1010 Environment Minimum Operating Ambient Temperature 5°C (41°F) Maximum Operating Ambient Temperature 35°C (95°F) Maximum Altitude 2000 m Maximum Relative Humidity 80% Non-Condensing Minimum Storage Temperature* -20°C (-4°F) Maximum Storage Temperature* 60°C (140°F) Inlet Conditions Inlet Air Pressure Min-Max 7.6-8.9 bar (110-130 psi)
  • Page 11: Unpacking

    Check ‘SHOCKWATCH’ and ‘TIP-N-TELL’ labels for signs of rough handling prior to unpacking. Any damage should be reported immediately to the carrier and Peak Scientific or the Peak Partner from where the unit was purchased. Follow the unpacking instructions posted on the side of the crate. It will require two people to remove the unit from the shipping crate and to manoeuvre the generator onto the bench.
  • Page 12: Fittings Kit Contents

    Fittings Kit Contents Supplied in the Fittings Kit are all the fittings required to connect the generator to the application. The contents of the Fittings Kit are as follows: 1. Teflon Tubing x 3m 2. ¼” Compression Fitting 3. UK Mains Power Cable 4.
  • Page 13: Installation

    Installation Generator Environment The generator is designed for indoor use only. It should be installed adjacent to the application(s) it is supplying. If this is not convenient then the unit can be sited elsewhere, however, consideration should be made of the lengths of pipe runs as pressure drops can result from extended runs of pipe.
  • Page 14: Generator Overview

    Generator Overview Corona 1010 General Dimensions 416 mm / 16.3” 540 mm / 21.2” The generator must always be placed on a flat, level surface. Failure to do so will affect the performance of the generator. WARNING Page 14...
  • Page 15: Corona 1010 Rear Connections

    Rear Connections Corona 1010 Rear Connections ¼" Compression Fitting ¼" Compression Fitting Mains Cable Page 15...
  • Page 16: Electrical Connection

    Electrical Connection Connect the generator to an appropriate 100-230v single-phase supply, refer to the generator serial plate for input specification and ensure your supply matches the requirements. If the appropriate power cord is not supplied; a new plug, rated to at least 12 amps, can be fitted by a qualified electrician.
  • Page 17: Air Purity

    Air Purity The Corona 1010 generator should be connected to an air supply that, as a minimum, meets ISO8753-1:2010 Class 1.4.1 Class 1 Particulate In each cubic metre of compressed air, the particulate count should not exceed 20,000 particles in the 0.1 - 0.5 micron size range, 400 particles in the 0.5 - 1 micron range and 10 particles in the 1 - 5 micron size range.
  • Page 18: Start-Up Sequence

    Unusual Operation If at any time the generator begins to emit excessive noise or vibration, then it should be switched off and you should contact Peak Scientific or the Peak Partner from which the generator has been purchased. Page 18...
  • Page 19: Connecting To The Application

    ⁄ ” I/D). Tubing and fittings not supplied in the fittings kit. > 40 metres: Please contact Peak Scientific with the relevant distance and we will calculate the flow resistance and the tubing size required. A combination of ¼”/ ⁄...
  • Page 20: Service Requirements

    Service Requirements Service Schedule Purchase Interval Component Qty. Visit www.peakscientific.com/ 12 months Corona 1010 Annual Service Kit ordering Page 20...
  • Page 21: Peak Protected

    Peak Protected With Peak Scientific you invest in not only a product but peace of mind. With a network of certified Peak engineers stationed throughout the globe, Peak’s rapid response team are never far away and our commitment is to keep your generator running day in, day out, protecting your laboratory workflow.
  • Page 22: Cleaning

    Cleaning Clean the outside of the generator only using warm soapy water and a clean damp cloth. Ensure all excess fluid is thoroughly removed from the cloth prior to use. Cleaning should only be undertaken with the power switched off and the power cord removed from the rear of the generator.
  • Page 23: Troubleshooting

    Troubleshooting Problem Possible Solution • Ensure power cord is plugged into the generator and that the power socket is turned on. The generator will not switch on and the • Check the fuse in the power cord plug. power switch does not illuminate. •...
  • Page 24 See our enclosed Peak [Protected] leaflet for further information. Important! You have 1 month to register your Peak Scientific product from the date of installation. Once registered the warranty will be honoured for a period of 12 months. If you wish to defer the installation of your generator, you must notify Peak Scientific immediately by emailing warranty@peakscientific.com.
  • Page 25 Page 25...
  • Page 26 Page 26...
  • Page 27 Page 27...
  • Page 28 Peak Scientific has highly trained, fully certified Field Service Engineers located in over 20 countries across every continent around the world. This allows us to provide an industry-leading rapid response service to our customers. With [Peak Protected], your laboratory’s productivity becomes our top priority.
