Summary of Contents for Peak Scientific Precision Hydrogen 1200cc

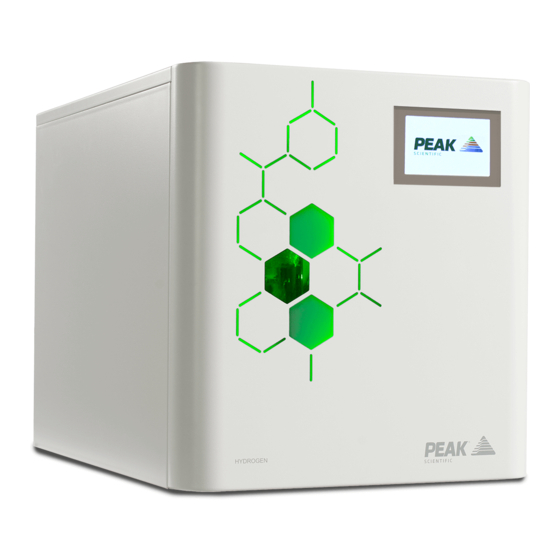

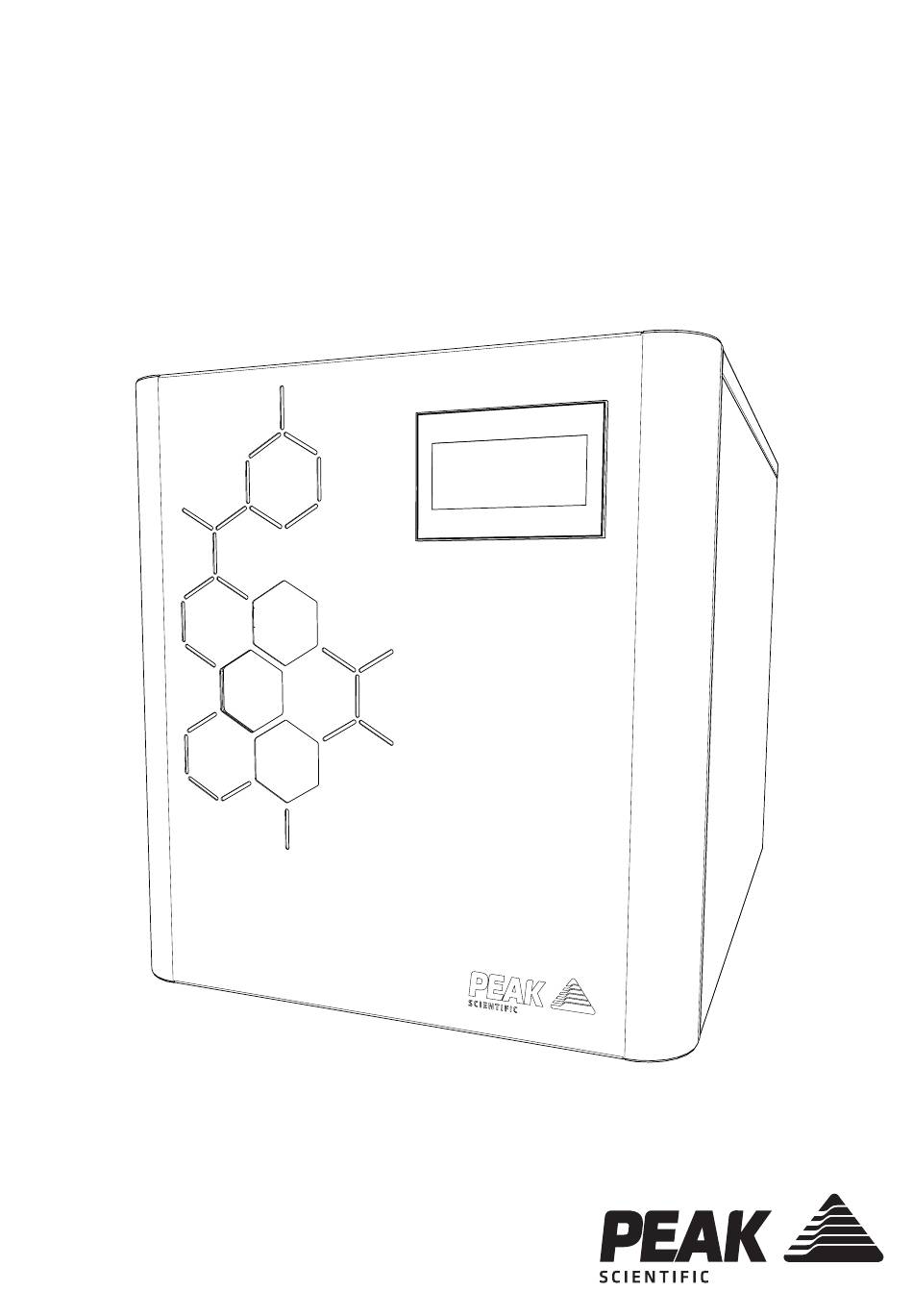

- Page 1 Precision Hydrogen 1200cc (All Models) User Manual Copyright © Peak Scientific Instruments Ltd 2021 — Precision Hydrogen 1200cc User Manual Rev 8 RSID 2379 EN —31/08/2021...
-
Page 2: Table Of Contents
Contents Change History How to use this Manual Introduction Health and Safety Data Deioniser Resin Warranties and Liabilities Safety Notices Symbols Safety Notice to Users Attention - Important Notice to All Users Declaration of Conformity Environmental Declaration Technical Specification Principle of Operation General Safety Generator Safety Features Unpacking... -
Page 3: Change History
Users can refer to the contents page to find the relevant information. Please review each of the following sections carefully. Thank you for selecting Peak Scientific to meet your Gas Generation needs, and should you require any further assistance or support please do not hesitate to contact Peak Scientific or Peak Partner from which you purchased your Generator. -
Page 4: Introduction
Introduction The Precision Hydrogen 1200cc has been developed to cater for the requirements of GC instruments. This generator provides a source of high purity hydrogen gas, suitable for carrier gas if used in conjunction with carrier gas traps and detector gas. -
Page 5: Health And Safety Data
Health and Safety Data Deioniser Resin This sheet to be retained by the ‘Health & Safety Officer’ The recipient of this Health & Safety Data sheet is required to ensure that all personnel handling, using or likely to come into contact with the material are made aware of the Health &... - Page 6 First Aid Skin Contact Wash effected areas with soap and water. Consult doctor if irritation persists. Eye Contact Product can cause severe eye irritation. Flush eyes with large amounts of water for at least 15 minutes. Consult a doctor if irritation persists. Inhalation This product should present no hazard if operated under normal conditions.
-
Page 7: Warranties And Liabilities
Warranties and Liabilities 1. The Company warrants that it has title to the Goods. 2. Subject to the provisions of this clause the Company warrants that the Goods shall comply in all material respects with any specification referred to in the Order Confirmation (as the same may be amended) and shall, subject thereto, be free from defects in material and workmanship for the lesser of a period of twelve months from the date of delivery or thirteen months from the date of dispatch... -
Page 8: Safety Notices
If the user employs an operating procedure, item of equipment or a method of working which is not specifically recommended by Peak Scientific, the user must ensure that the equipment will not be damaged or become hazardous to persons or property. -
Page 9: Attention - Important Notice To All Users
(available from Peak Scientific). It is recommended that you check the water quality weekly to prevent biological growth developing in the tank and tubing. Failure to do this will greatly reduce the life of the generator and render the 3 year cell warranty void. -
Page 10: Declaration Of Conformity
• Restriction on the use of certain hazardous substances in electronic equipment (RoHS) Directive 2011/65/EU as amended by EU 2015/863. • FCC 47 CFR Part 15 class A Unintentional radiators; Conducted and Radiated emissions limits. Signed for and on behalf of Peak Scientific by Signed: Name: Fraser Dunn... - Page 11 BS61326-1:2013 Electrical Equipment for Measurement , Control and Laboratory Use – EMC Requirements. • The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012 (SI 2012 / 3032) as amended. Signed for and on behalf of Peak Scientific by Signed: Name: Fraser Dunn...
- Page 12 WEEE Compliance Statement The Waste Electrical and Electronic Equipment (WEEE) Regulations SI 2013 No 3113 and or the Waste Electrical and Electronic Equipment (WEEE) Directive 2012/19/EU apply to all electrical and electronic equipment placed on the market in the UK and EU covered by the scope of regulations which can be found in the Government Guidance Notes (PDF) produced by the Department for Business Innovation and skills for the UK and here for Europe.
-
Page 13: Technical Specification
Technical Specification Precision Hydrogen Environment 1200cc 1200cc Trace Minimum Operating Ambient Temperature 10°C (50°F) Maximum Operating Ambient Temperature 35°C (95°F) Maximum Altitude 2000 m Maximum Relative Humidity 90% Non-Condensing Minimum Storage Temperature* 10°C (50°F) Maximum Storage Temperature* 25°C (77°F) Generator Outlets Max Flow Rate 1200 cc/min Purity... -
Page 14: Principle Of Operation
This technology was first described in the mid-1960s by General Electric as a method for producing electricity for the Gemini Space Program and later adapted for electrolysis. This process has been continually developed ever since. All Peak Scientific hydrogen generators utilise PEM technology . -
Page 15: General Safety
General Safety The generator only produces gas when the application places a demand on the unit. The maximum quantity of hydrogen stored in the generator at any one time is 350cc at a pressure of 6.9bar (100psi). The unit also meets the European Electromagnetic Compatibility and Low Voltage Directives. -
Page 16: Generator Safety Features
Generator Safety Features The Precision Hydrogen range have the following safety features to ensure safe and reliable operation: 1. To avoid any build up of hydrogen from leaks inside the unit; the generator features forced air ventilation. This ensures that a hydrogen / oxygen mixture cannot form inside the generator. -
Page 17: Unpacking
Check ‘SHOCKWATCH’ and ‘TIP-N-TELL’ labels for signs of rough handling prior to unpacking. Any damage should be reported immediately to the carrier and Peak Scientific or the Peak Partner from where the unit was purchased. Follow the unpacking instructions posted on the side of the crate. It will require two people to remove the unit from the shipping crate and to manoeuvre the generator onto the bench. -
Page 18: Fittings Kit Contents
Fittings Kit Contents Supplied in the Fittings Kit are all the fittings required to connect the generator to the application. The contents of the Fittings Kit are as follows: 1. Tygon Tubing x 1m 2. Teflon Tubing x 1m 3. Deioniser Column Resin Refill 4. -
Page 19: Transit Plug Removal
Transit Plug Removal All hydrogen generators should be fitted with two Transit Plugs 3301437 during the packaging process. These plugs are fitted to the H vent and O vent of all hydrogen units and ensure no water from the internal water bottle can escape during transit. Plugs should be removed during the installation of the generator. -
Page 20: Installation
Maximum Operating Ambient Temperature: 35 °C (95 °F) Note: It is recommended that the Precision Hydrogen 1200cc unit is left to run for 3 hours, and the Precision Hydrogen Trace 1200cc unit is left to run for 24 hours before use. -
Page 21: Generator Overview
Generator Overview General Dimensions 380 mm / 14.9” 540 mm / 21.2” The Generator must always be placed on a flat, level surface. Failure to do so will affect the performance of the Generator. WARNING Page 21... -
Page 22: Unit Controls
Unit Controls Touch Screen Rear Connections vent vent Power Switch Master Connection* Slave Connection* Power Inlet Detector** Connection Water Supply Fill Drain Exhaust Delivery Refer to page 29 for information on using Master and Slave connections. Refer to page 28 for information on using the optional H Detector. -
Page 23: Tubing
GCs since these materials will allow air and water to diffuse into the gas lines. In addition, plastic tubing can give off organic impurities which can cause ghost peaks and baseline instability. Furthermore, Peak Scientific recommend that compression fittings are used, and that the fittings are free from Teflon® tape. Ventilation... -
Page 24: Water Quality
A suitable external water bottle is available from Peak Scientific. Note: Customers should check the water quality of the external water supply once a week to maintain the health of the generator. - Page 25 If the generator cannot load enough water to switch the sensors in the water bottle the generator will alarm providing the user with the screen below. The external water supply should be checked prior to pushing the recovery button which will then re-engage the load pump and will allow the generator to continue to fill with water.
- Page 26 To resolve this, check your external supply before cycling the power on the generator. Once the low level water sensor disengages the generator will then begin producing hydrogen as before. Four- and Eight-litre water storage bottles can be purchased from Peak Scientific, please contact your Sales Representative for more information. Page 26...
-
Page 27: Water Usage
Water Usage The water consumption rate of the Precision Hydrogen 1200cc and Hydrogen Trace 1200cc Generator is shown in the below graph. Page 27... -
Page 28: Electrical Connection
Electrical Connection Connect the generator into an appropriate voltage supply between 100-230VAC, refer to the generator serial plate for input specification and ensure your supply matches the requirements. If the appropriate power cord is not supplied; a new CSA, UL approved power cord, rated to at least 10 amps, can be fitted by a qualified electrician. -
Page 29: Start-Up Sequence
Start-up Sequence CHECK: Outlet is connected to application Mains power is connected Turn the power switch ON. The digital display will light up, the cooling fans will rotate and the internal pumps may automatically run to load water if the internal tanks are not full. On power-up the generator will check the water level, once the water level is at the minimum level required the generator will perform a diagnostic check including a leak test, this should take approximately six minutes. -
Page 30: H 2 Detector Option
5W. CAUTION The Precision Hydrogen 1200cc models can be purchased along with a H2 detector unit. The detector is intended for use with a GC, it is recommended that the detector unit is placed above the height of the GC outlet. The detector can be wall mounted. -
Page 31: Expanding Capacity
Expanding Capacity These are not standard serial ports, damage to serial equipment is highly likely if connected. 24Vdc signal level exists on certain pins with a maximum power rating of 5W. CAUTION The Precision Hydrogen (Trace) 1200cc has an expandable feature, where the flow ca- pacity of the unit is increased, by connecting up to 16 units in a Master-Slave format. -
Page 32: Switching The Unit Off
Switching the Unit Off The unit can be switched off at any time using the following procedure. Firstly, press the Stop button on the Touch screen, then press Menu, and finally select Shut Down. The unit will take a few moments to depressurize after which the power switch at the rear of the generator can be switched off. -
Page 33: Deioniser Column Replacement
12 months. Only Peak Scientific approved components should be used with the Precision Hydrogen (Trace) 1200cc, please refer to page 31 for details on ordering the required service kits. - Page 34 4. The deioniser column is held in place by two Velcro straps, these must be unfastened. 5. Next disconnect the deioniser column by pressing the silver tabs on the fittings at the top and bottom of the column. 6. Remove the used column by pulling it towards you. 7.
-
Page 35: Service Requirements
Service Requirements Service Schedule Purchase Interval Component Visit Precision Hydrogen 1200cc Annual 12 Months Maintenance Kit www.peakscientific.com/ordering Precision Hydrogen 1200cc 24 Month Interval 24 Months Maintenance Kit Page 35... -
Page 36: Troubleshooting
Troubleshooting Problem Possible Solution • Ensure power cord is plugged into the Generator and that the power socket is turned on. The Generator will not switch on and the power switch does not illuminate • Check the fuse in the power cord plug. - Page 37 See our enclosed Peak [Protected] leaflet for further information. Important! You have 1 month to register your Peak Scientific product from the date of installation. Once registered the warranty will be honoured for a period of 12 months. If you wish to defer the installation of your generator, you must notify Peak Scientific immediately by emailing warranty@peakscientific.com.
- Page 38 Page 38...
- Page 39 Page 39...
- Page 40 Tel: +44 141 812 8100 Fax: +44 141 812 8200 For further information on any of our generator products please contact marketing@peakscientific.com Copyright © Peak Scientific Instruments Ltd 2021 — Precision Hydrogen 1200cc User Manual Rev 8 RSID 2379 EN —31/08/2021...
