Summary of Contents for Peak Scientific Corona 1010A

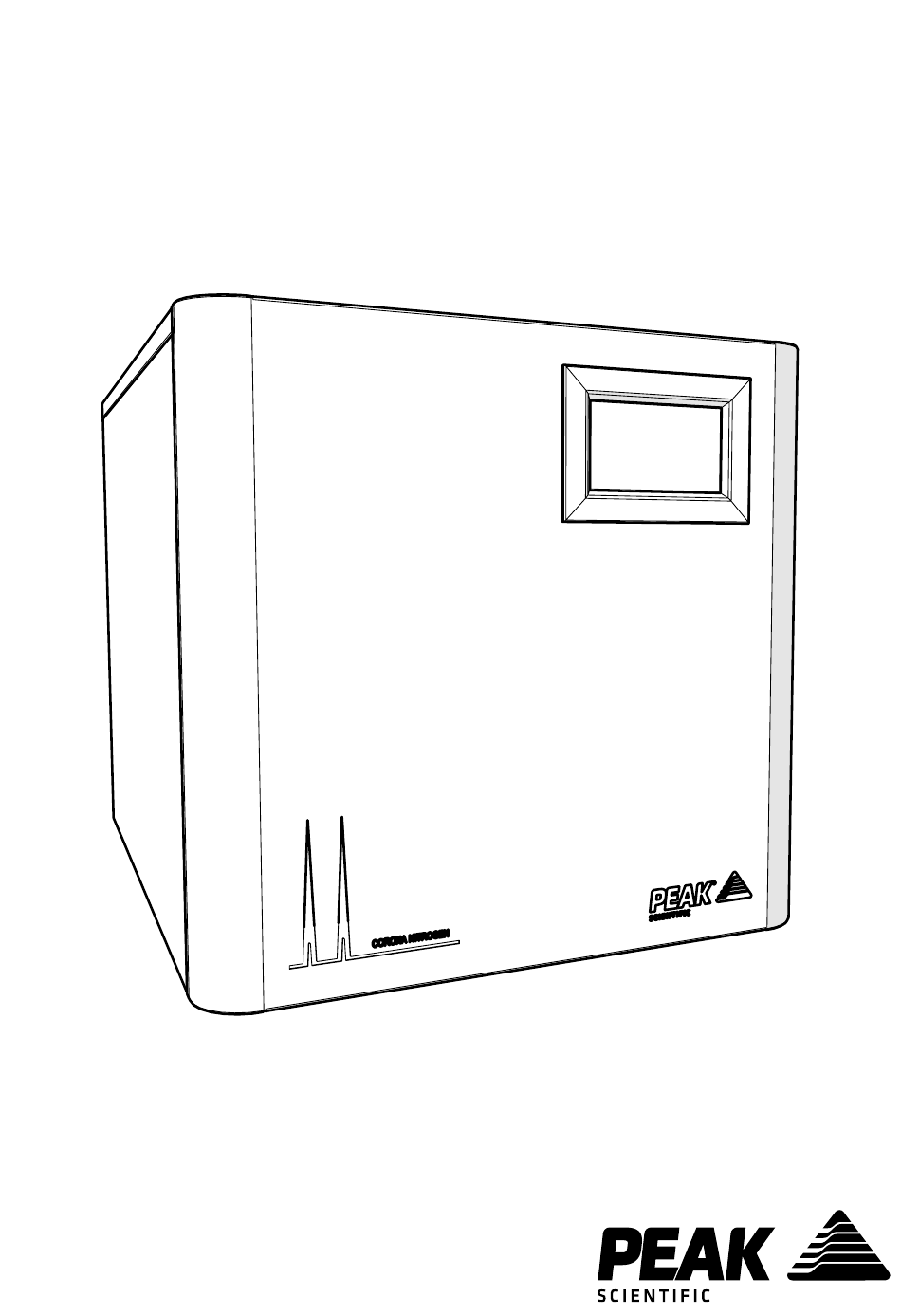

- Page 1 Corona 1010A User Manual Corona 1010A User Manual Rev 1 RSID XXXX EN 19/04/23...
-
Page 2: Table Of Contents
Technical Specification Corona 1010A Unpacking Fittings Kit Contents Unpacking Instructions Installation Generator Environment Generator Overview Corona 1010A General Dimensions Corona 1010A Rear Connections Electrical Connection Connecting to the application Tubing Lengths Normal Operation On Demand Gas Unusual Operation Service Screens... -
Page 3: Change History
Users can refer to the contents page to find the relevant information. Please review each of the following sections carefully. Thank you for selecting Peak Scientific to meet your gas generation needs, and should you require any further assistance or support please do not hesitate to contact Peak Scientific or the Peak Partner from which you purchased your generator. -
Page 4: Introduction

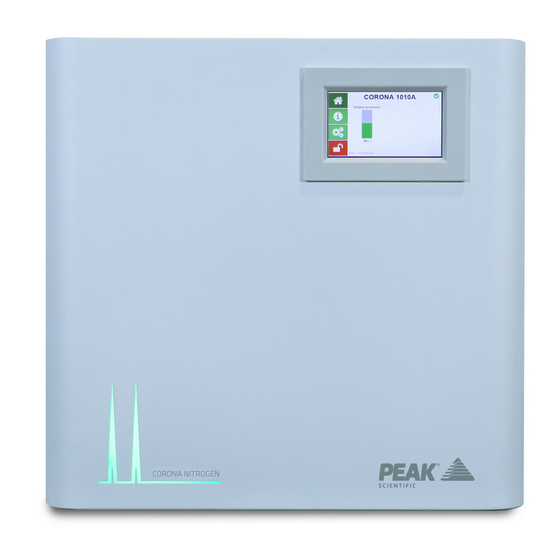

Introduction The Corona 1010A is a single compressor-controlled Nitrogen generator which uses membrane separation to produce Nitrogen at 98% purity at 5LPM & 80 psi. Features include: • Compact design • Product developed in conjunction with Thermo Fisher. • Touch screen technology for ease of operation and observation... -
Page 5: Warranties And Liabilities
Warranties and Liabilities 1. The Company warrants that it has title to the Goods. 2. Subject to the provisions of this clause the Company warrants that the Goods shall comply in all material respects with any specification referred to in the Order Confirmation (as the same may be amended) and shall, subject thereto, be free from defects in material and workmanship for the lesser of a period of twelve months from the date of delivery or thirteen months from the date of dispatch... -
Page 6: Safety Notices
If the user employs an operating procedure, item of equipment or a method of working which is not specifically recommended by Peak Scientific, the user must ensure that the equipment will not be damaged or become hazardous to persons or property. -
Page 7: Eu Declaration Of Conformity
EN61326-1:2021 Electrical Equipment for Measurement, Control and Laboratory Use – EMC Requirements. (Class A) • Restriction on the use of certain hazardous substances in electronic equipment (RoHS) Directive 2011/65/EU as amended by EU 2015/863. Signed for and on behalf of Peak Scientific by Signed: Name: Fraser Dunn... -
Page 8: Uk Declaration Of Conformity
BS61326-1:2021 Electrical Equipment for Measurement , Control and Laboratory Use – EMC Requirements. • The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012 (SI 2012 / 3032) as amended. Signed for and on behalf of Peak Scientific by Signed: Name: Fraser Dunn... -
Page 9: Weee Compliance Statement
WEEE Compliance Statement The Waste Electrical and Electronic Equipment (WEEE) Regulations SI 2013 No 3113 and or the Waste Electrical and Electronic Equipment (WEEE) Directive 2012/19/EU apply to all electrical and electronic equipment placed on the market in the UK and EU covered by the scope of regulations which can be found in the Government Guidance Notes (PDF) produced by the Department for Business Innovation and skills for the UK and here for Europe. -
Page 10: Csa Compliance Statement
CSA Compliance Statement CSA Group (Canadian Standards Authority) is a Nationally Recognised Testing Laboratory (NRTL), headquartered in Toronto Canada. They are authorised to evaluate product to both their own and Underwriters Laboratory (UL) standards and certify the product to be in compliance to the relevant standards. Peak products are certified to the current in force revision of the following standards in order to cover both Canadian and United States requirements for “Safety Requirements for Electrical Equipment for Measurement, Control and Laboratory use,... -
Page 11: Technical Specification
Technical Specification Corona 1010A Environment Corona 1010A Minimum Operating Ambient Temperature 5°C / 41°F Maximum Operating Ambient Temperature 35°C / 95°F Maximum Altitude 2000m Maximum Relative Humidity Minimum Storage Temperature* -20°C / -4°F Maximum Storage Temperature* 60°C / 140°F Generator Outlets Max Gas Outlet Pressure 80 psi / 5.52 bar... -
Page 12: Unpacking
Check ‘SHOCKWATCH’ and ‘TIP-N-TELL’ labels for signs of rough handling prior to unpacking. Any damage should be reported immediately to the carrier and Peak Scientific or the Peak Partner from where the unit was purchased. Follow the unpacking instructions posted on the side of the crate. It will require two people to remove the unit from the shipping crate and to manoeuvre the generator onto the bench. -
Page 13: Fittings Kit Contents
Fittings Kit Contents Supplied in the Fittings Kit are all the fittings required to connect the generator to the application. The contents of the Fittings Kit are as follows: 1. Teflon Tubing 1/4” x 3m 2. PE Tubing 6mm x 3m 3. -
Page 14: Installation
Installation Generator Environment The generator is designed for indoor use only. It should be installed adjacent to the application(s) it is supplying. If this is not convenient then the unit can be sited elsewhere, however, consideration should be made of the lengths of pipe runs as pressure drops can result from extended runs of pipe. -
Page 15: Generator Overview
Generator Overview Corona 1010A General Dimensions 417 mm / 16.4” 540 mm / 21.3” The generator must always be placed on a flat, level surface. Failure to do so will affect the performance of the generator. WARNING Page 15... -
Page 16: Corona 1010A Rear Connections
Corona 1010A Rear Connections Power Inlet Nitrogen Outlet Drain Outlet Ensure all inlets and outlets are connected to correct sources and applications WARNING All Connections should only be carried out by trained personnel WARNING Generator must be switched off and unplugged prior to any cleaning... -
Page 17: Electrical Connection
Electrical Connection Connect the generator into an appropriate electricity supply, between either 120V or 220V-240V. Refer to the generator serial plate for input specification and ensure your supply matches the requirements. If an appropriate mains power cords is not supplied or a substitute one is used then ensure that all components of it the plug, cord and connector have adequate ratings for the generator and appropriate approvals for the country of use. -
Page 18: Connecting To The Application
> 40 metres: Please contact Peak Scientific with the relevant distance and we will calculate the flow resistance and the tubing size required. A combination of ¼”/3⁄ 1 6” and 3⁄ 8 ”/5⁄16” tubing may be used to ensure that there is no large diameter tubing within the lab (i.e. - Page 19 Play Store or Apple App Store. A PIN code may also be requested by phoning the Peak helpdesk. This code is only required on the initial start-up of the unit. Corona 1010A Registration 1. Press the 'I've got my pin' button on the screen on the front of the generator. 2. Enter your PIN.
- Page 20 4. The unit will then go through initialisation phase. 5. Upon completion of the initialisation phase, the screen will display the below, home screen. Page 20...
-
Page 21: Normal Operation
The generator will automatically produce the factory set flow and pressure of Nitrogen gas as detailed in the Technical Specifications and as required by the Corona 1010A Ni- trogen generator. On Demand Gas The Corona 1010A will start and stop the compressor automatically detected by how much gas the user is using. -
Page 22: Service Screens
Service Screens Service Due Home Screen Warning This is the main home screen when a service is due displaying a yellow service warning. The screen will alternate between the home screen and a full screen warning as shown next. Service Due Warning Screen This is the full screen warning when service is due. -
Page 23: Information Screens
Information Screens System Info Screen Displays System Info. Service Log-in Screen Service Log-in Screen Allows the Peak Approved Engineer access to the Corona 1010A's service menus. Page 23... -
Page 24: Service Requirements
48 months Corona 1010A 4 Year Service Kit – 220-240V *On the 4th annual service of your Corona 1010A generator, the compressor needs to be replaced, this is contained within the 48 month service kit. Please contact your service provider for more information. -
Page 25: Peak Protected
Peak Protected With Peak Scientific you invest in not only a product but peace of mind. With a network of certified Peak engineers stationed throughout the globe, Peak’s rapid response team are never far away and our commitment is to keep your generator running day in, day out, protecting your laboratory workflow. -
Page 26: Cleaning
Cleaning Clean the outside of the generator only using warm soapy water and a clean damp cloth. Ensure all excess fluid is thoroughly removed from the cloth prior to use. Cleaning should only be undertaken with the power switched off and the power cord removed from the rear of the generator. -
Page 27: Troubleshooting
Troubleshooting Problem Possible Solution • Ensure power cord is plugged into the generator and that the power socket is turned on. • Check the fuse in the power cord plug. The generator will not switch on and the power switch does not illuminate. •... - Page 28 See our enclosed Peak [Protected] leaflet for further information. Important! You have 1 month to register your Peak Scientific product from the date of installation. Once registered the warranty will be honoured for a period of 12 months. If you wish to defer the installation of your generator, you must notify Peak Scientific immediately by emailing warranty@peakscientific.com.
- Page 29 Page 29...
- Page 30 Page 30...
- Page 31 Page 31...
- Page 32 Peak Scientific has highly trained, fully certified Field Service Engineers located in over 20 countries across every continent around the world. This allows us to provide an industry-leading rapid response service to our customers. With [Peak Protected], your laboratory’s productivity becomes our top priority.
