I N S T A L L A T I O N I N S T R U C T I O N S
TRUSS/POLE STATIC MOUNT
Model: TPS-2000 SERIES

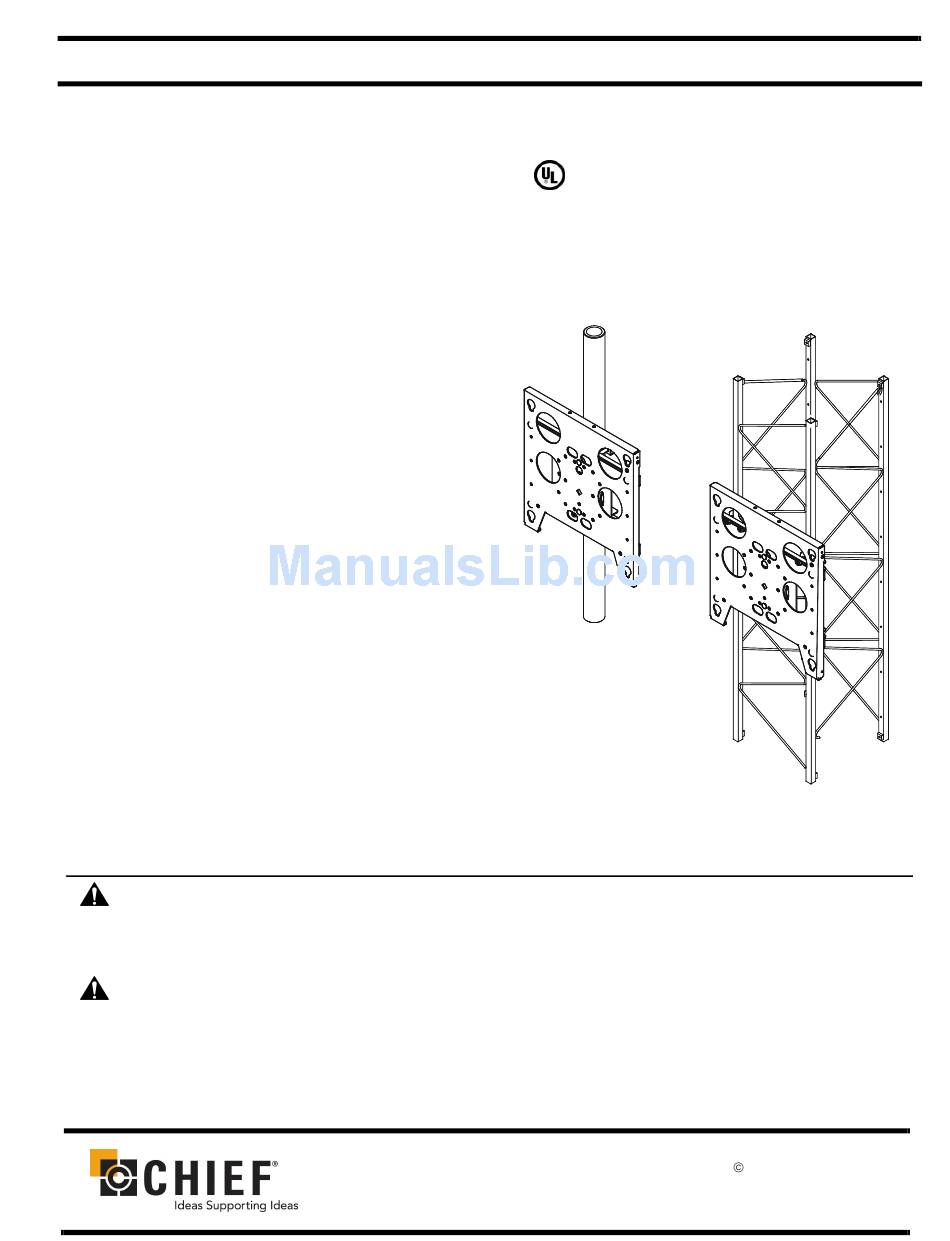

The TPS-2000 Series is designed for both pole and truss
Installations quick and easy. This versatile mount
accommodates a large range of truss and pole
dimensions, includes security options and provides
flexible features perfect for exhibit, retail and digital
signage applications.

BEFORE YOU BEGIN

WARNING: ALL COMPONENTS MUST BE SECURELY FASTENED TO A STRUCTURAL MEMBER CAPABLE
OF SUPPORTING 4 TIMES THE COMBINED WEIGHT OF ALL COMPONENTS PLUS THE EQUIPMENT BEING
MOUNTED. IF IT CANNOT SUPPORT THIS WEIGHT, THE STRUCTURE MUST BE REINFORCED.
WARNING: THE MAXIMUM WEIGHT TO BE INSTALLED ON THE MOUNT IS 150 POUNDS (68.04 KG).
CHIEF MANUFACTURING INC.
1-800-582-6480 952-894-6280 FAX 952-894-6918
8401 EAGLE CREEK PARKWAY, STE 700
SAVAGE, MINNESOTA 55378 USA
8807-000010 (Rev. B)
2005 Chief Manufacturing
www.chiefmfg.com
12/05

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Truss/Pole Static Mount TPS-2000 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for CHIEF Truss/Pole Static Mount TPS-2000 Series

  • Page 1 MOUNTED. IF IT CANNOT SUPPORT THIS WEIGHT, THE STRUCTURE MUST BE REINFORCED. WARNING: THE MAXIMUM WEIGHT TO BE INSTALLED ON THE MOUNT IS 150 POUNDS (68.04 KG). CHIEF MANUFACTURING INC. 1-800-582-6480 952-894-6280 FAX 952-894-6918 8401 EAGLE CREEK PARKWAY, STE 700 SAVAGE, MINNESOTA 55378 USA 8807-000010 (Rev.
  • Page 2 Model: TPS-2000 SERIES Parts Unpack the carton, and verify contents shown in Figure 1 below. If you are missing any of the listed components, please contact Customer Service at 1-800-582-6480. Available Mounting Clamp Kits If a clamp kit was not ordered at the time of mount purchase, or an alternate clamp kit is required, choose the appropriate kit from the table below and contact a Chief Customer Service representative at...
  • Page 3 Installation Instructions INSTALLATION Pole Mount WARNING: THE STRUCTURAL MEMBER MUST BE CAPABLE OF SUPPORTING 4 TIMES THE COMBINED WEIGHT OF ALL COMPONENTS PLUS THE EQUIPMENT BEING MOUNTED. 1. Verify truss plate (10) is properly oriented for installation. Recessed, Slotted Flat Surface Against Pole Slot at bottom Figure 2: Truss Plate Orientation for Pole Installation...
  • Page 4 Model: TPS-2000 SERIES Truss Clamp with Hardware (4 places) Figure 5: Install Truss Plate to Truss Install Face Plate to Truss Plate 1. Verify face plate (20) is properly oriented for installation. (See Figure 7) Side with part number decal towards back plate Back Plate mounted on pole or truss...
  • Page 5 Installation Instructions Faceplate Display Mounting Button Faceplate Display Mounting Button Figure 9: Align Display 3. Secure display by placing the Q-Latch in the "Latched" position (See Figure 10). NOTE: A hole is provided in the Q-Latch and faceplate to accommodate the insertion of a padlock or similar locking device.
  • Page 6 Model: TPS-2000 SERIES Installation Instructions...
