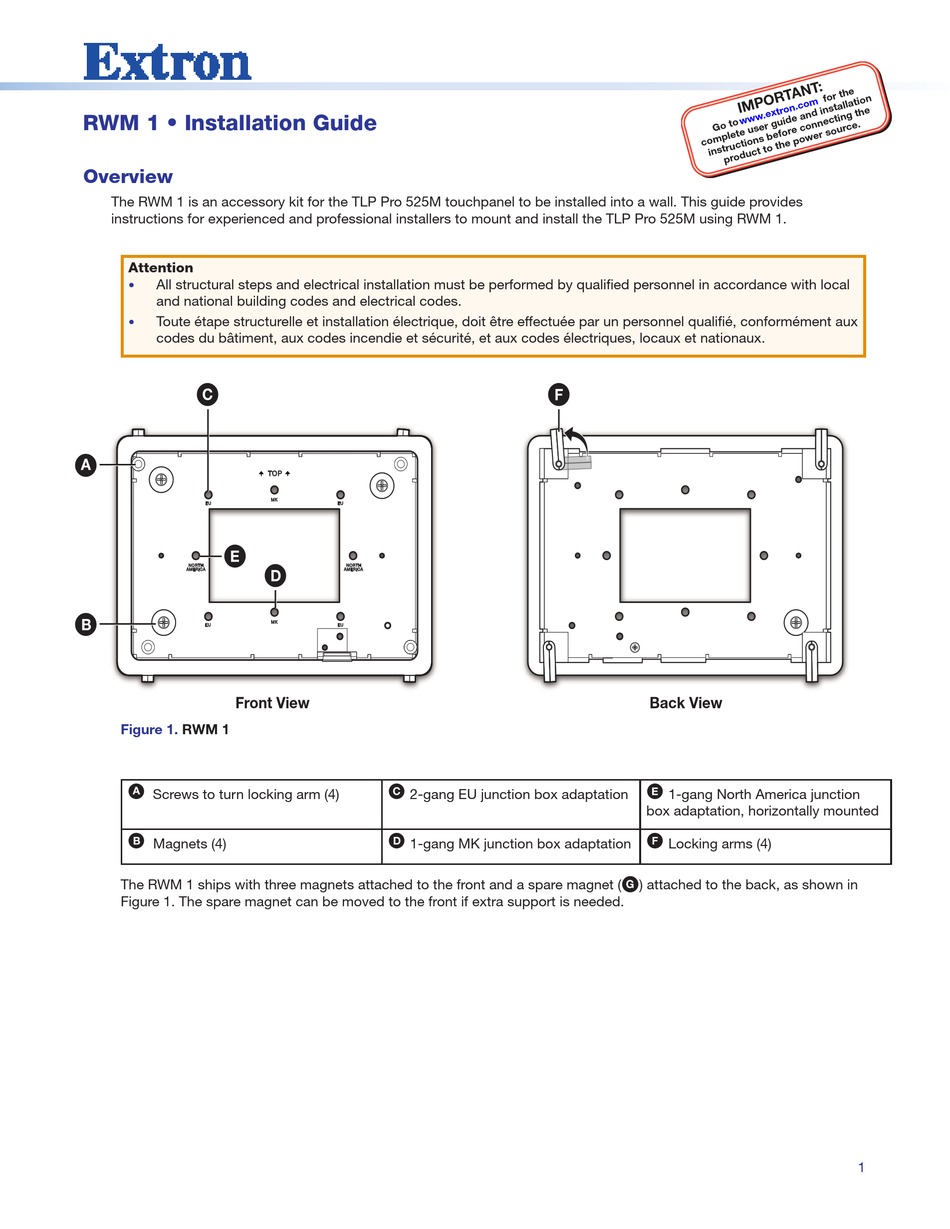

RWM 1 • Installation Guide
Overview
The RWM 1 is an accessory kit for the TLP Pro 525M touchpanel to be installed into a wall. This guide provides
instructions for experienced and professional installers to mount and install the TLP Pro 525M using RWM 1.
Attention
All structural steps and electrical installation must be performed by qualified personnel in accordance with local
•
and national building codes and electrical codes.
Toute étape structurelle et installation électrique, doit être effectuée par un personnel qualifié, conformément aux
•
codes du bâtiment, aux codes incendie et sécurité, et aux codes électriques, locaux et nationaux.
C C
A A
EU
E E
NORTH
AMERICA
B B
EU
Front View
Figure 1.
RWM 1
A
Screws to turn locking arm (4)
B
Magnets (4)
The RWM 1 ships with three magnets attached to the front and a spare magnet (
Figure 1. The spare magnet can be moved to the front if extra support is needed.
TOP
MK
EU
NORTH
D D
AMERICA
MK
EU
C
2-gang EU junction box adaptation
D
1-gang MK junction box adaptation
F F
Back View
E
1-gang North America junction
box adaptation, horizontally mounted
F
Locking arms (4)
G
) attached to the back, as shown in
1
