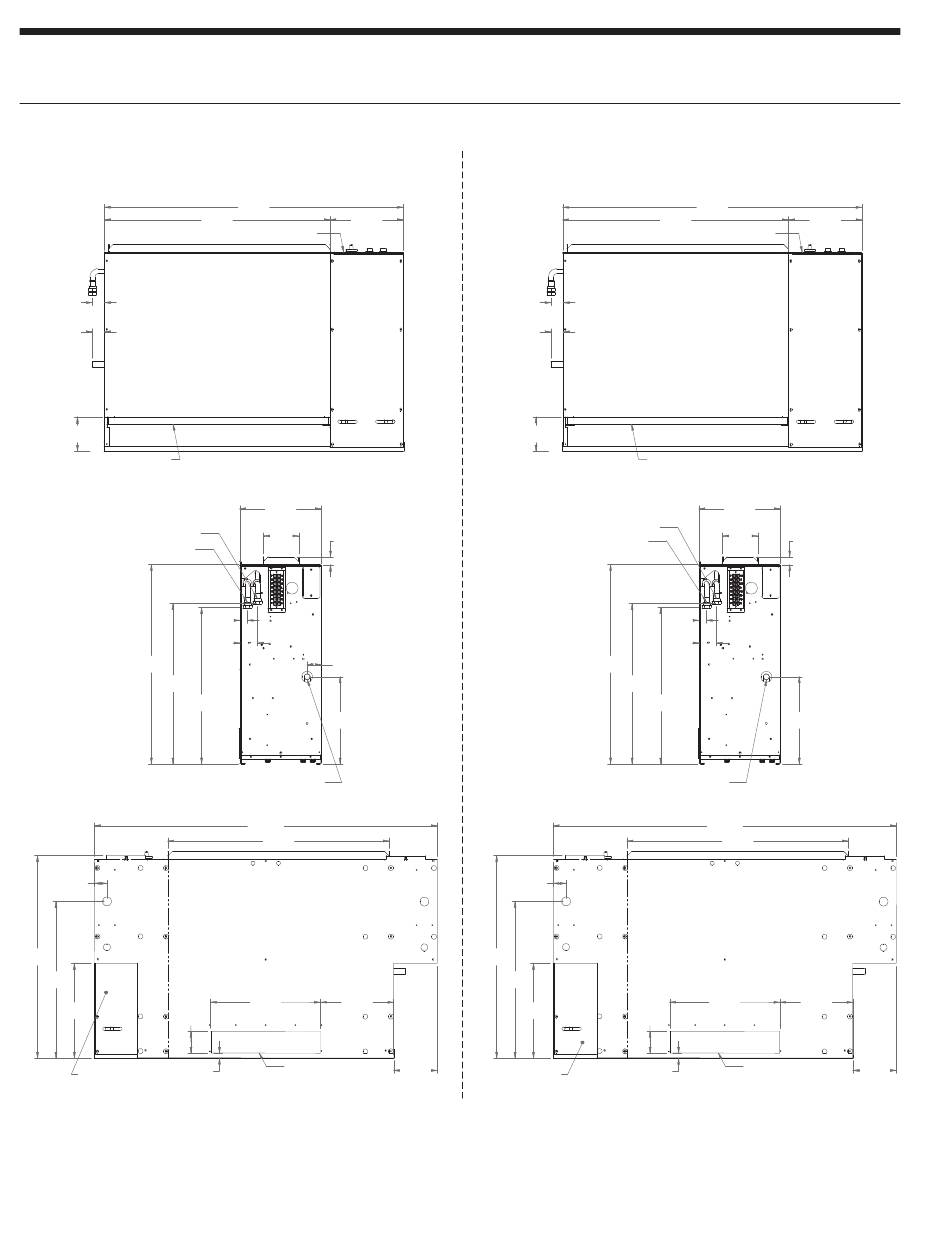

RC SERIES ENGINEERING GUIDE
Dimensional Data - Left Return Chassis
Data = inches (cm)
Models 09-12
1.50
(3.8)
1.50
(3.8)
BLOWER ACCESS PANEL
4.37
(11.1)
FILTER
WATER OUT 1/2˝ FPT
WATER IN 1/2˝ FPT
25.25
(64.1)
21.4
(54.4)
20.0
(50.8)
1.62
(4.1)
25.65
(65.1)
19.83
(50.4)
12.03
2.75
(30.5)
(7.0)
0.66
COMPRESSOR
(1.7)
ACCESS PANEL
37.88
(96.2)
28.5 9.38
(72.4) (23.8)
CONTROL PANEL
COMPRESSOR
ACCESS PANEL
10.31
(26.2)
4.5
1.00
(11.4)
(2.5)
0.86
(2.2)
2.0
(5.1)
1.78
(4.5)
11.0
(27.9)
CONDENSATE
DRAIN CONNECTION
43.37
(110.2)
28.00
(71.1)
OPTIONAL BACK PLATE
13.90 9.25
(35.3) (23.5)
DAMPER OPENING
1.50
(3.8)
1.50
(3.8)
4.32
(11.0)
WATER OUT 1/2˝ FPT
WATER IN 1/2˝ FPT
1.62
(4.1)
25.80
(65.5)
20.0
(50.8)
12.18
(30.9)
5.50
COMPRESSOR
(14.0)
ACCESS PANEL
30
Models 15-18
42.88
(108.9)
34.0
(86.4)
CONTROL PANEL
BLOWER ACCESS PANEL
FILTER
11.75
(26.2)
4.5
(11.4)
0.86
(2.2)
2.0
(5.1)
25.25
(64.1)
20.6
(52.3)
19.5
(49.5)
CONDENSATE
DRAIN CONNECTION
48.25
(122.6)
33.0
(83.8)
OPTIONAL BACK PLATE
13.90
(35.3)
2.75
(7.0)
0.83 DAMPER OPENING
(2.1)
8.88
(22.6)
COMPRESSOR
ACCESS PANEL
1.00
(2.5)
12.0
(30.5)
11.78
(29.9)
5.50
(14.0)
