TECHNICAL
TECHNICAL
GUIDE
GUIDE
RHP SERIES
SPLIT-SYSTEM HEAT PUMPS
14.5 SEER – R-410A – 1 PHASE
1.5 THRU 5 NOMINAL TONS
MODELS: RHP14J18 THRU 60
®
Due to continuous product improvement, specifications
are subject to change without notice.
Visit us on the web at
www.upgnet.com
Additional rating information can be found at
www.ahridirectory.org
WARRANTY SUMMARY*
Extended 10-Years limited parts warranty.
Standard 10-Years limited compressor warranty.
Extended 10-Years limited parts warranty requires online
registration within 90 days of purchase for replacement or
closing for new home construction.
*Does not apply to R-22 models, 3-Phase models, or internet sales.
See Limited Warranty certificate in User's Information Manual for details.
FOR DISTRIBUTION USE ONLY - NOT TO BE USED AT POINT OF RETAIL SALE
DESCRIPTION

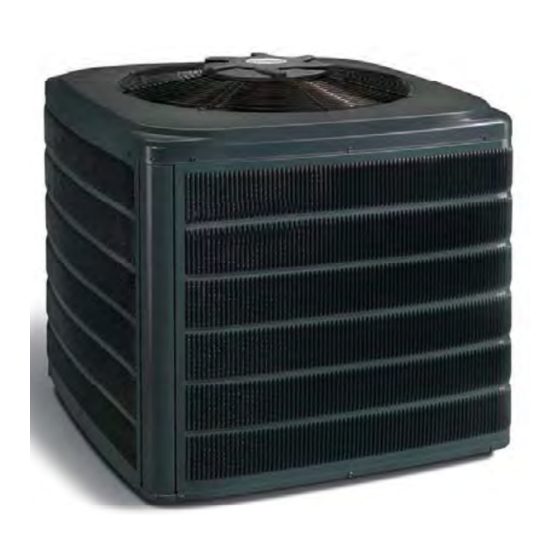

The 14.5 SEER Series unit is the outdoor part of a versatile cli-
mate system. It is designed with a matching indoor coil compo-
nent from Johnson Controls Unitary Products. Available for
typical applications this climate system is supported with acces-
sories and documents to serve specific functions.
FEATURES
• Small Footprint - The compact footprint is a perfect fit for
any application.
• Quality Condenser Coils - The coil is constructed of copper
tubing and enhanced aluminum fins for increased perfor-
mance.
• Coil Protection - Coils are protected from damage by a slot-
ted, stamped steel coil guard.
• Protected Compressor - Compressors are protected inter-
nally by a high pressure relief valve and a temperature sen-
sor, and externally by the system high and low pressure
switches. A factory installed liquid line filter-drier further pro-
tects the compressor against moisture and debris. The 5-ton
system utilizes a two-stage compressor.
• Environmentally Friendly Refrigerant - The R-410A refrig-
erant delivers environmentally friendly performance with zero
ozone depletion.
• Durable Finish - An automotive quality finish provides the
ultimate protection from harmful UV rays and rust-creep,
ensuring a long-lasting, high quality apprearance. A powder
paint top coat is applied over a baked on primer using a gal-
vanized, zinc coated steel base material.
• Lower Installed Cost - Installation time and costs are
reduced by easy power and control wiring connections. The
unit is factory charged for a 15-foot lineset. The small base
dimension means less space is required on the ground or
roof.
• Top Discharge - Warm air from the top mounted fan is blown
up, away from the structure and any landscaping. This allows
compact location on multi-unit applications.
• Low Operating Sound Levels - The upward air flow carries
the normal operating noise away from the living area. The
rigid top panel effectively isolates any motor sound. Isolator
mounted compressor and the condenser coil muffle the nor-
mal fan motor and compressor operating sounds.
• Low Maintenance - Long life, permanently lubricated motor-
bearings need no annual servicing.
• Easy Service Access - Fully exposed refrigerant connec-
tions and a single panel covering the electrical controls make
for easy servicing of the unit.
• Secured Service Valves - Secured, re-usable service
valves are provided on both the liquid and vapor sweat con-
nections for ease of evacuating and charging.
• Advanced System Control - These heat pumps feature a
demand-defrost control system to provide optimal comfort
and reliable operation over a wide range of conditions.
• Agency Listed - Safety certified by CSA to UL 1995 / CSA
22.2. Performance certified to ANSI/AHRI Standard 210/240
in accordance with the Unitary Small Equipment certification
program.
810754-UTG-C-0214
