Summary of Contents for Moxa Technologies CSM-400 Series

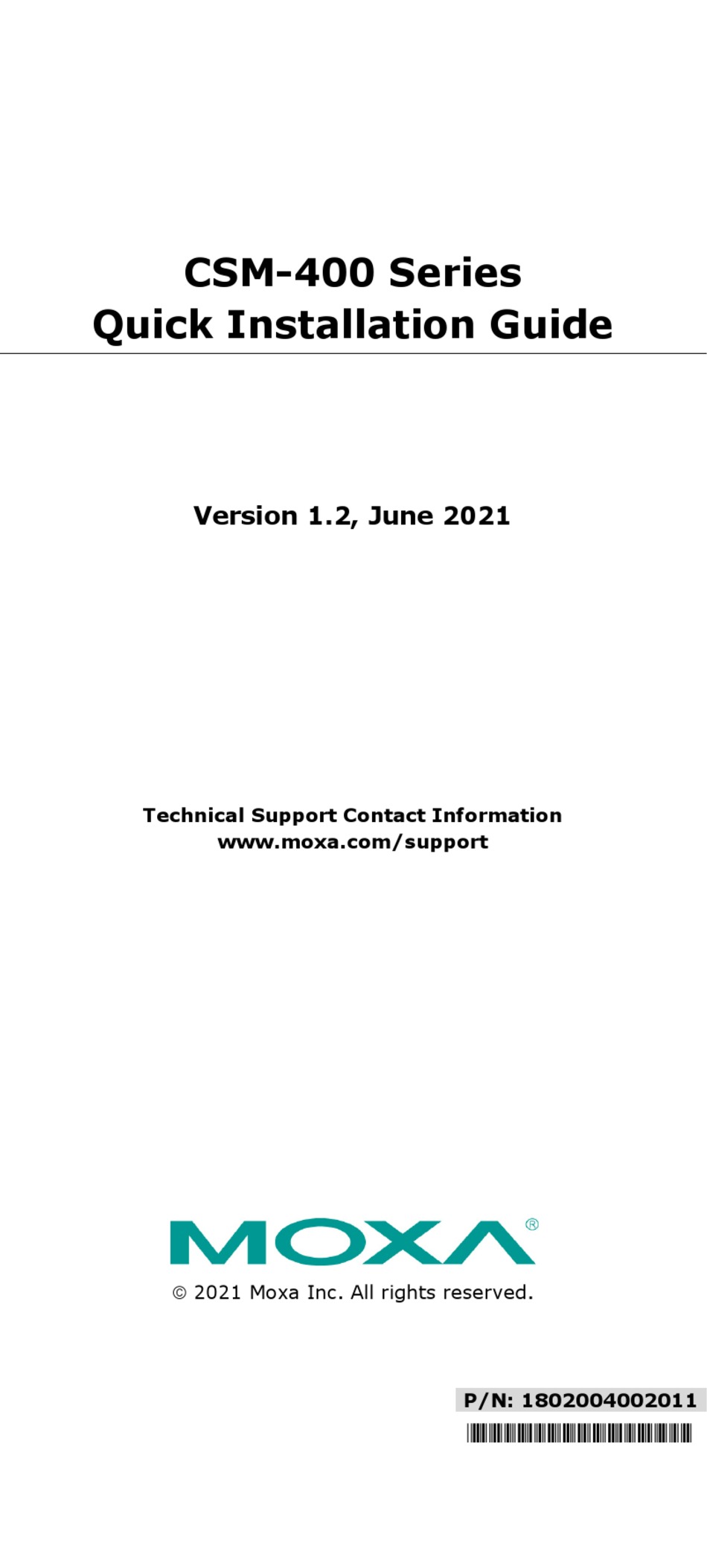

- Page 1 CSM-400 Series Quick Installation Guide Version 1.2, June 2021 Technical Support Contact Information www.moxa.com/support 2021 Moxa Inc. All rights reserved. P/N: 1802004002011 *1802004002011*...

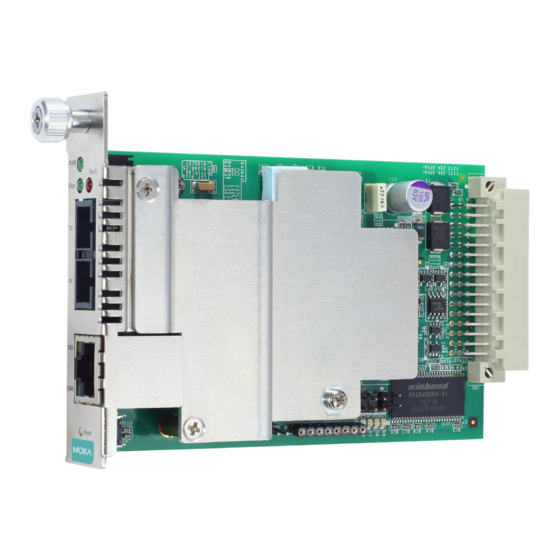

- Page 2 Overview Introduction The CSM-400 Series is an Ethernet to optical-fiber media converter and is part of the NRack System. It provides Ethernet media conversion from 10/100 BaseT(X)-to-100 BaseFX (SC or ST connectors), and it can be installed in every chassis of the NRack System.
- Page 3 • Supports WDM type modules NOTE When you enable the LFP function of the CSM-400 series of media converters to use on the TRC-2190, you must choose the CSM-200/400 product for use at a remote site to make sure the LFP function can successfully use this function.
- Page 4 To protect the product from damage due to electrostatic discharge, we recommend wearing a grounding device when handling your CSM-400 slide-in modules. Communication Connections The CSM-400 Series has one 10/100BaseT(X) Ethernet port, and one 100BaseFX (SC or ST type connector) fiber port. - 4 -...
- Page 5 10/100BaseT(X) Ethernet Port Connection The 10/100BaseT(X) Ethernet ports located on CSM-400 are used to connect to Ethernet-enabled devices. Below, we show pinouts for both MDI (NIC-type) ports and MDI-X (HUB/Switch-type) ports, and also show cable-wiring diagrams for straight-through and crossover Ethernet cables. 10/100BaseT(X) RJ45 Pinouts MDI Port Pinouts MDI-X Port Pinouts...
- Page 6 SC-Port Pinouts SC-Port to SC-Port Cable Wiring ST-Port Pinouts ST-Port to ST-Port Cable Wiring ATTENTION This is a Class 1 Laser/LED product. Do not stare into the Laser Beam. LED Indicators There are two LEDs on the front bracket of the CSM-400 slide-in modules.
- Page 7 The Moxa CSM-400’s 10/100 Mbps RJ45 Ethernet port auto negotiates with the connected device for the fastest data transmission rate supported by both devices. All models of the CSM-400 Series are plug- and-play devices, so that software configuration is not required at installation, or during maintenance.
- Page 8 Optical Fiber 100BaseFX Multi-mode Single mode Wavelength 1300 nm 1310 nm Max. TX -10 dBm 0 dBm Min. TX -20 dBm -5 dBm RX Sensitivity -32 dBm -34 dBm Link Budget 12 dB 29 dB 5 km Typical Distance 40 km 4 km Saturation -6 dBm...
