UPort 1200/1400/1600
Quick Installation Guide
Moxa Americas:
Toll-free: 1-888-669-2872
Tel:
1-714-528-6777
Fax:
1-714-528-6778
Moxa Europe:
Tel:
+49-89-3 70 03 99-0
Fax:
+49-89-3 70 03 99-99
Moxa India:
Tel:
+91-80-4172-9088
Fax:
+91-80-4132-1045
USB-to-Serial Converter
Edition 9.0, November 2018
Technical Support Contact Information
www.moxa.com/support
2018 Moxa Inc. All rights reserved.
Moxa China (Shanghai office):
Toll-free: 800-820-5036
Tel:
+86-21-5258-9955
Fax:
+86-21-5258-5505
Moxa Asia-Pacific:
Tel:
+886-2-8919-1230
Fax:
+886-2-8919-1231
P/N: 1802014000018
*1802014000018*
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Moxa Technologies UPort 1200
Summary of Contents for Moxa Technologies UPort 1200

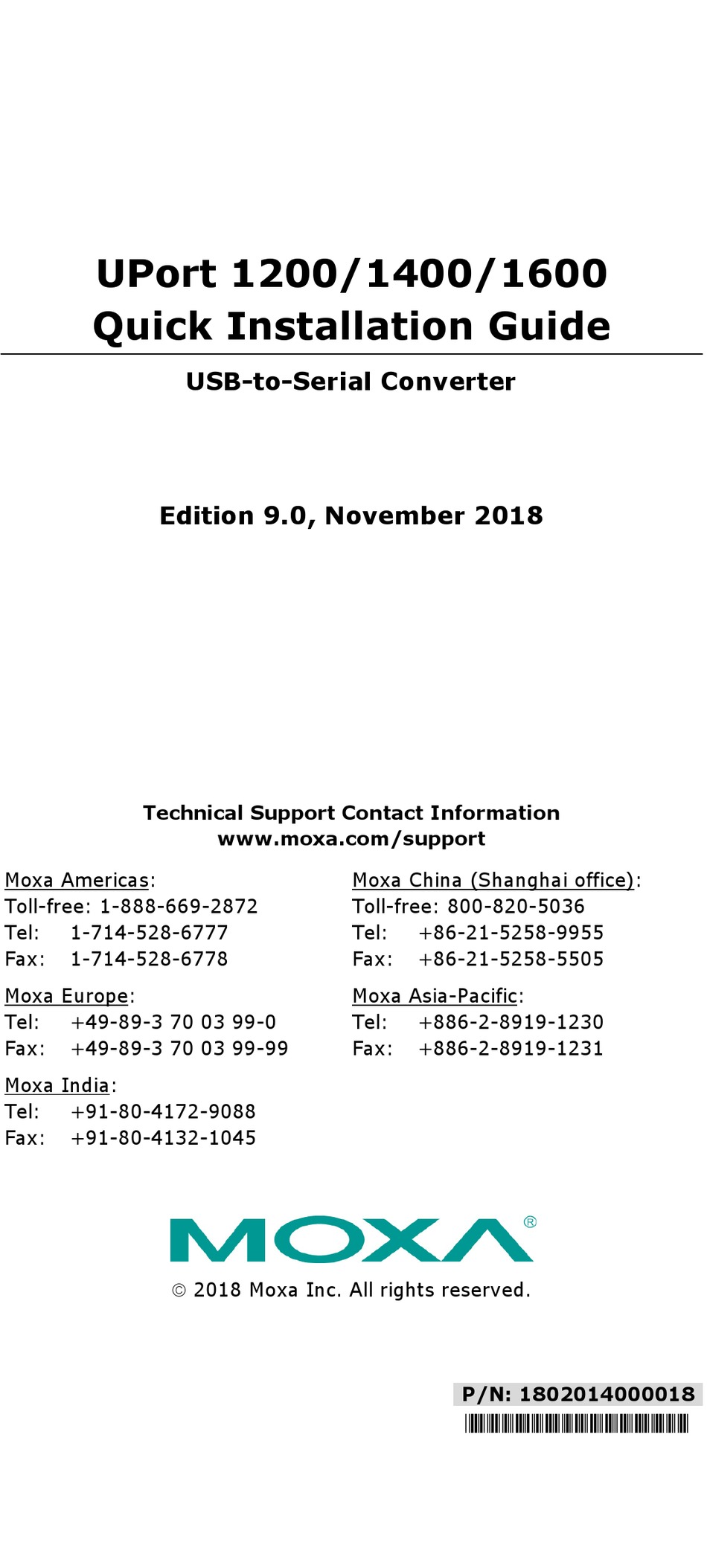

- Page 1 UPort 1200/1400/1600 Quick Installation Guide USB-to-Serial Converter Edition 9.0, November 2018 Technical Support Contact Information www.moxa.com/support Moxa Americas: Moxa China (Shanghai office): Toll-free: 1-888-669-2872 Toll-free: 800-820-5036 Tel: 1-714-528-6777 Tel: +86-21-5258-9955 Fax: 1-714-528-6778 Fax: +86-21-5258-5505 Moxa Europe: Moxa Asia-Pacific: Tel: +49-89-3 70 03 99-0...
-
Page 2: Ordering Information
Moxa’s USB-to-serial product provides a wide range of easy-to-use solutions for adding Windows COM ports and Linux tty ports through a PC’s USB port. The UPort 1200/1400/1600 series are the following models: • UPort 1250: 2-port RS-232/422/485 USB-to-serial converter •... - Page 3 (-40 to 75°C, -40 to 167°F), the PWR-12150-(plug type)-SA-T series, for your reference. Installing the UPort 1200/1400/1600 Driver 1. Run the Setup program which you may find on Moxa’s support website http://www.moxa.com/support/. Click Next to start installing the driver.
- Page 4 3. Click Install to proceed with installation. 4. Then click Finish to complete the driver installation. WARNING 1. This unit is not intended for consumer use. It will only be shipped to manufacturers or factories. 2. The DC source should come from a class external adapter or a 12 to 48 VDC safety extra-low voltage (SELV) limited power source (LPS), using a transfer device.
- Page 5 Click Next to start the installation process. 5. Select Install the software automatically (Recommended) 6. The window that opens next cautions you that although this software has not passed Windows logo testing, this driver has already been tested and demonstrated that it supports the Windows OS.
- Page 6 # modprobe mxuport # ls /dev/ttyMXUSB* Serial Port Pin Assignments The serial ports on the UPort 1200/1400/1600 have DB9 male connectors. Refer to the following table below for the RS-232 and RS- 422/485 pin assignments. NOTE For UPort with DB Male Serial Ports, you may refer to DB9 Male Ports pin assignment section to loop back pin 2 and pin 3 for the RS-232 interface to carry out a self test on the device.
