Moxa Technologies UPort 1200 Series Quick Installation Manual
Usb-to-serial converter
Hide thumbs
Also See for UPort 1200 Series:
- User manual (36 pages) ,
- Quick installation manual (6 pages) ,
- Quick installation manual (2 pages)
Subscribe to Our Youtube Channel
Related Manuals for Moxa Technologies UPort 1200 Series
Summary of Contents for Moxa Technologies UPort 1200 Series

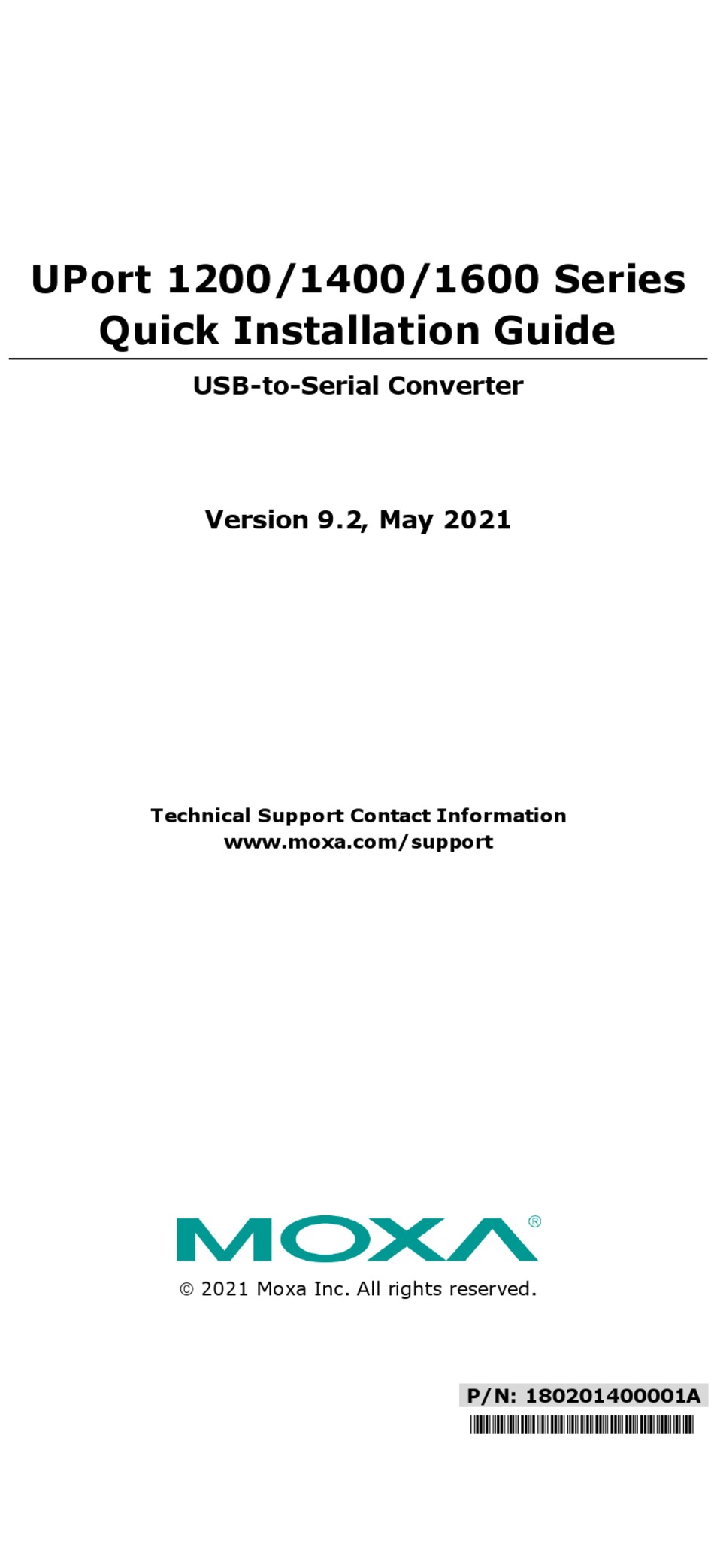

- Page 1 UPort 1200/1400/1600 Series Quick Installation Guide USB-to-Serial Converter Version 9.2, May 2021 Technical Support Contact Information www.moxa.com/support 2021 Moxa Inc. All rights reserved. P/N: 180201400001A *180201400001A*...

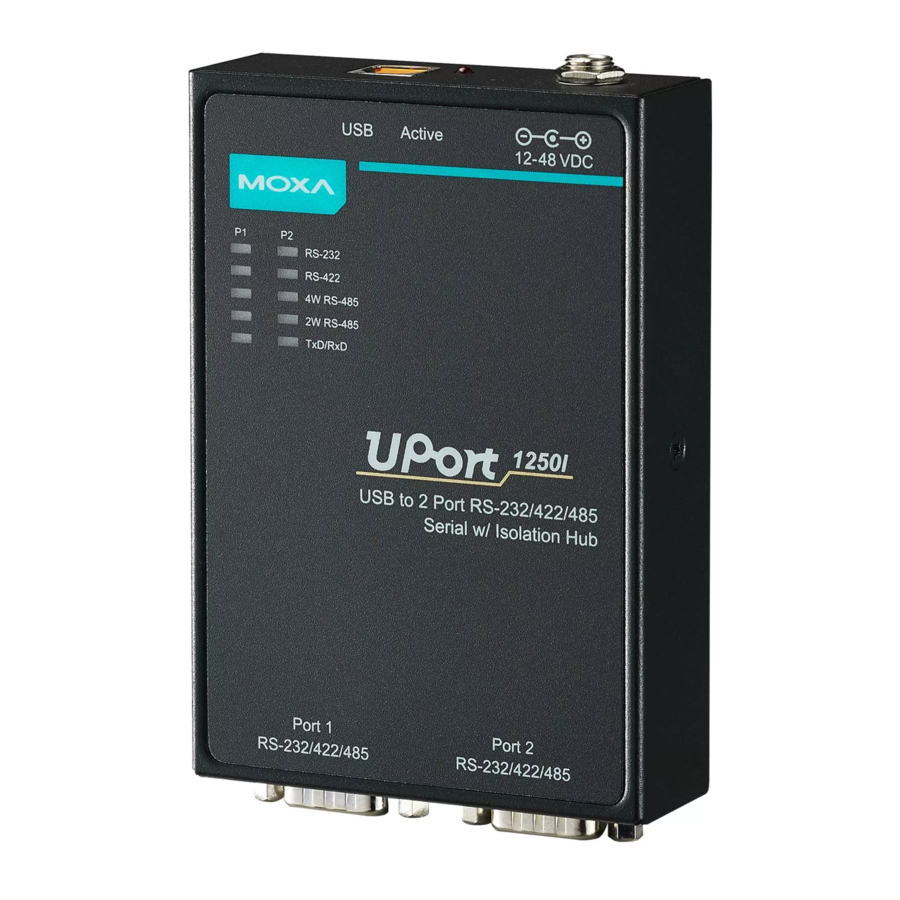

- Page 2 Overview Moxa’s USB-to-serial product provides a wide range of easy-to-use solutions for adding Windows COM ports and Linux tty ports through a PC’s USB port. The UPort 1200/1400/1600 series are the following models: • UPort 1250: 2-port RS-232/422/485 USB-to-serial converter •...
- Page 3 NOTE The operating temperature of the power adapter in the box is from 0 to 40°C. If your application is not in this range, please use a power adapter supplied by UL Listed External Power Supply (the power output meets SELV and LPS and is rated 12 to 48 VDC, the minimum current is 92.4 mA).
- Page 4 Installing the UPort 1200/1400/1600 Driver Connect the UPort to the PC using the USB cable. After turning your PC’s power on, Windows will automatically detect the UPort. Run the Setup program that you may find on Moxa’s support website http://www.moxa.com/support/. Click Next to start installing the driver.
- Page 5 Click Install to proceed with the installation. The installation will take a few minutes to complete. After the driver has been installed successfully, you can click Scan to review the installation results if the UPort is connected to your computer. - 5 -...
- Page 6 Check Launch Windows Driver Manager after finish to configure the UPort after quitting the driver installer. Installing the macOS Driver For macOS 10.12 and later, follow the steps below to install the driver 1. Enter recovery mode. 2. Disable System Integrity Protection (SIP) by typing 'csrutil disable' in the terminal.
- Page 7 Male DB9 RS-422/ RS-232 RS-485 2W RS-485 4W TxD-(A) – TxD+(B) – RxD+(B) Data+(B) RxD-(A) Data-(A) – – – – – – - 7 -...
