Fl.4, No.135, Lane 235, Pao-Chiao Rd. Shing Tien City, Taipei, Taiwan,
RSPSupply - 1-888-532-2706 - www.RSPSupply.com
http://www.RSPSupply.com/p-9308-Moxa-ICF-1150-M-ST.aspx
ICF-1150 Series
Quick Installation Guide
First Edition, November 2008
© 2008 Moxa Inc. All rights reserved.
Reproduction without permission is prohibited.
R.O.C.
TEL: +886-2-8919-1230
P/N: 1802011500010
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Moxa Technologies ICF-1150 Series
Summary of Contents for Moxa Technologies ICF-1150 Series
- Page 1 ICF-1150 Series Quick Installation Guide First Edition, November 2008 © 2008 Moxa Inc. All rights reserved. Reproduction without permission is prohibited. Fl.4, No.135, Lane 235, Pao-Chiao Rd. Shing Tien City, Taipei, Taiwan, R.O.C. TEL: +886-2-8919-1230 P/N: 1802011500010 RSPSupply - 1-888-532-2706 - www.RSPSupply.com...
- Page 2 3-Way Communication The ICF-1150 series supports 2 serial ports. The D-sub connector is for RS-232 communication and the removable terminal block is for RS-422 or RS-485 communication. The 3 ports (2 serial ports and one fiber port) are completely independent.
- Page 3 Rotary Switch for Pull High/Low Resistor Setting Since the RS-485 port can support multi-drop connection or daisy-chain connection, system engineers can connect meters, RTUs, readers, or many other devices together on the same bus. The impedance of the data line will rise according to the number of serial devices on the same bus.
-
Page 4: Package Checklist

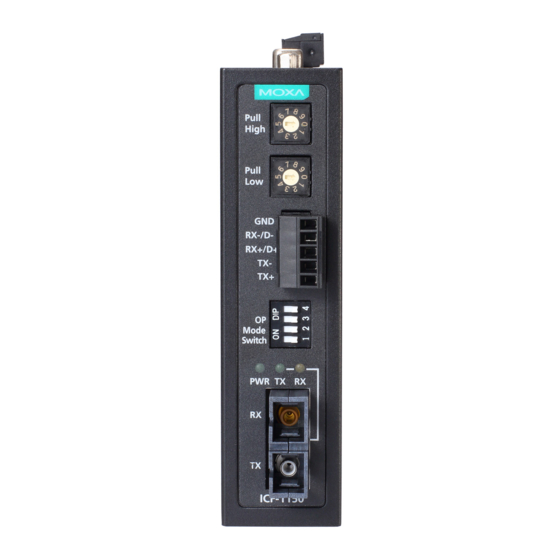

Features “Ring” or “Point to Point” transmission Extend RS-232/422/485 transmission distance: up to 40 km with single-mode—ICF-1150-S series up to 5 km with multi-mode—ICF-1150-M series Support baudrate up to 921.6 Kbps Provide 3-way galvanic isolation (for –I models) Wide operating temperature from -40 to 85°C (for “T” models) Package Checklist Before installing the ICF-1150, verify that the package contains the following items:... - Page 5 OP Mode Switch Fiber Port RS-422/485 ATTENTION Electrostatic Discharge Warning! To protect the product from damage due to electrostatic discharge, we recommend wearing a grounding device when handling your ICF-1150 series. - 5 - RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-9308-Moxa-ICF-1150-M-ST.aspx...
-
Page 6: Pin Assignment
STEP 2: The DIN-Rail attachment unit will snap into place as shown below. metel spring metel spring DIN-Rail DIN-Rail To remove the ICF-1150 series from the DIN-Rail, simply reverse Steps 1 and 2 above. Pin Assignment RS-232 Null Null Null... -
Page 7: Fiber Cable
Fiber Cable SC-Port Pinouts SC-Port to SC-Port Cable Wiring Cable Wiring ST-Port Pinouts ST-Port to ST-Port Cable Wiring Cable Wiring ATTENTION This is a Class 1 laser/LED product. Do not stare into the laser beam. Switch Settings There are 4-DIP switches on the front panel of the ICF-1150. Setting Switch 1 Switch 2... -
Page 8: Led Indicators
ATTENTION For Fiber Ring Users: If the Rx LEDs of the converter glow continuously, remove the fiber cable and connect again, then the system will not have the same condition. NOTE: “Ring Mode” can only be used for half-duplex applications. LED Indicators There are 3 LEDs on the front panel of the ICF-1150. - Page 9 ICF-1150I- S/M-SC/ST: 163 mA @ 12V Mechanical Dimensions (W × D × H) 30.3 × 70 × 115 mm Material Aluminum (1 mm) Gross Weight 135g Regulatory Approvals Class B Part 15 sub Class B TÜV EN 60950-1 EN55022 1998, Class B EN61000-4-2 (ESD), Criteria B, Level 4 EN61000-4-3 (RS), Criteria A, Level 3 EN61000-4-4 (EFT), Criteria B, Level 4...
